Installation Procedure

  1. GM5570513Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Wireless Charging System Module Bracket Bolt (1) - Install and tighten [ 4x ] - Fastener Specifications

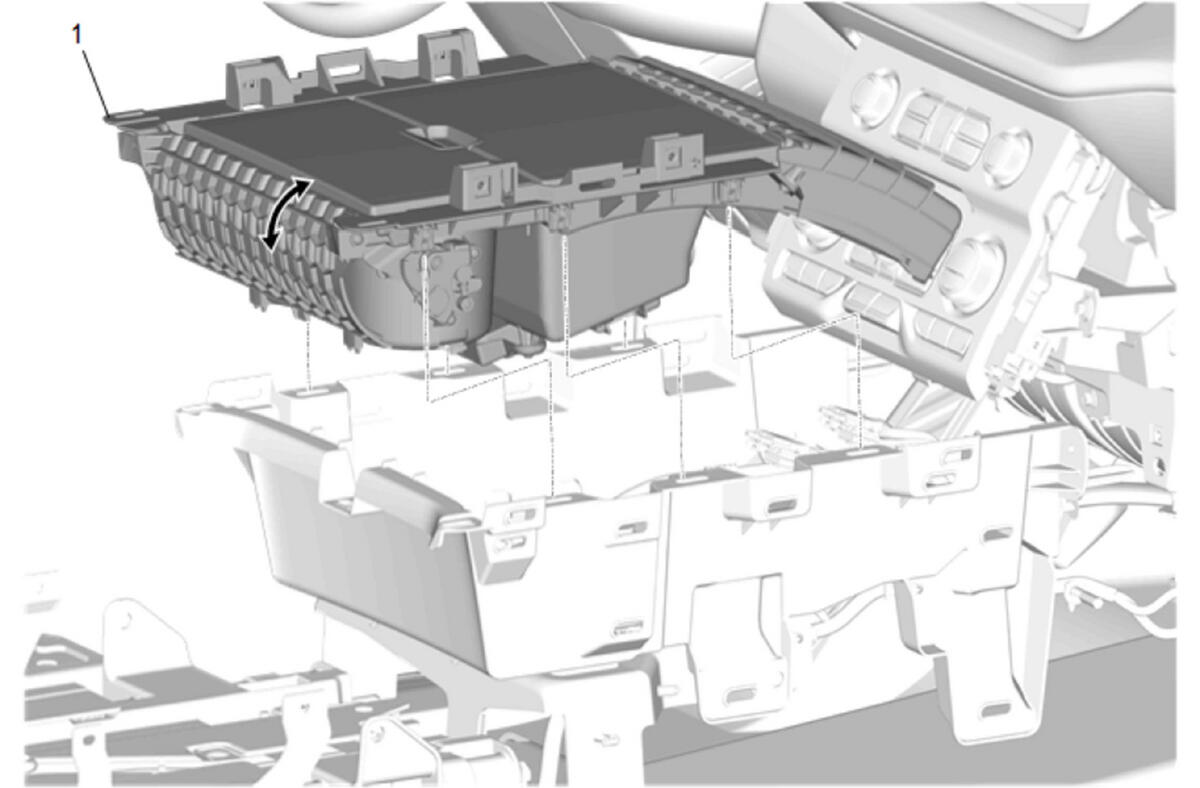

  3. GM5606992Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  4. Front Floor Console Cup Holder Trim Plate (1) - Install

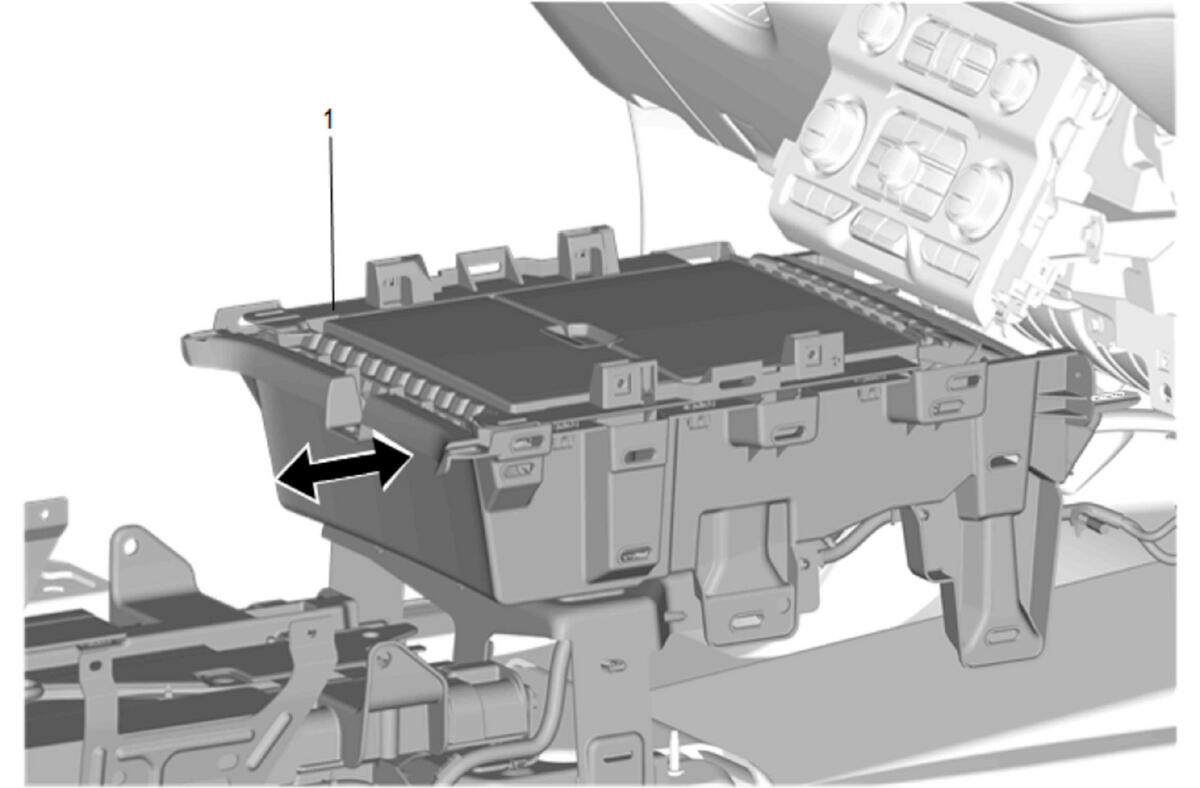

  5. GM5606985Courtesy of GENERAL MOTORS COMPANY

    Slide the front floor console (1) back into the instrument panel.

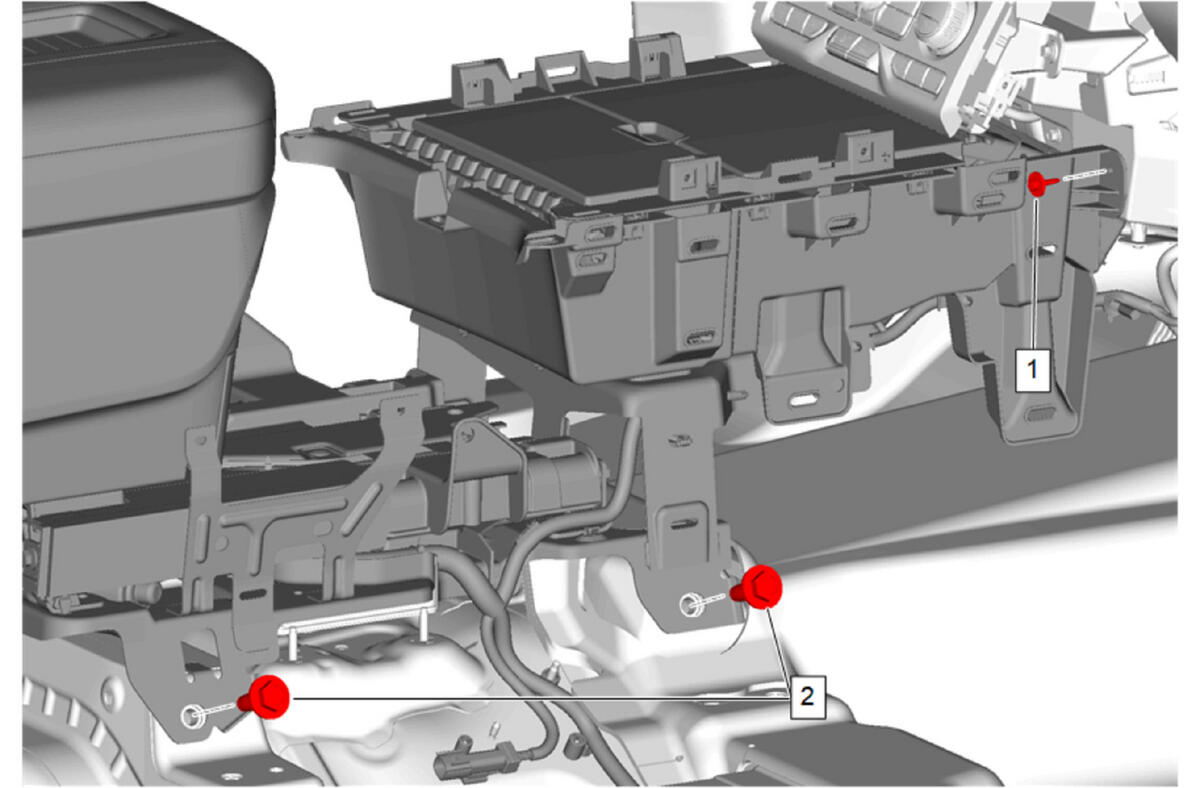

  6. GM5606862Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Front Floor Console Retainer Bolt (1) - Install and tighten - Fastener Specifications

  7. Front Floor Console Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

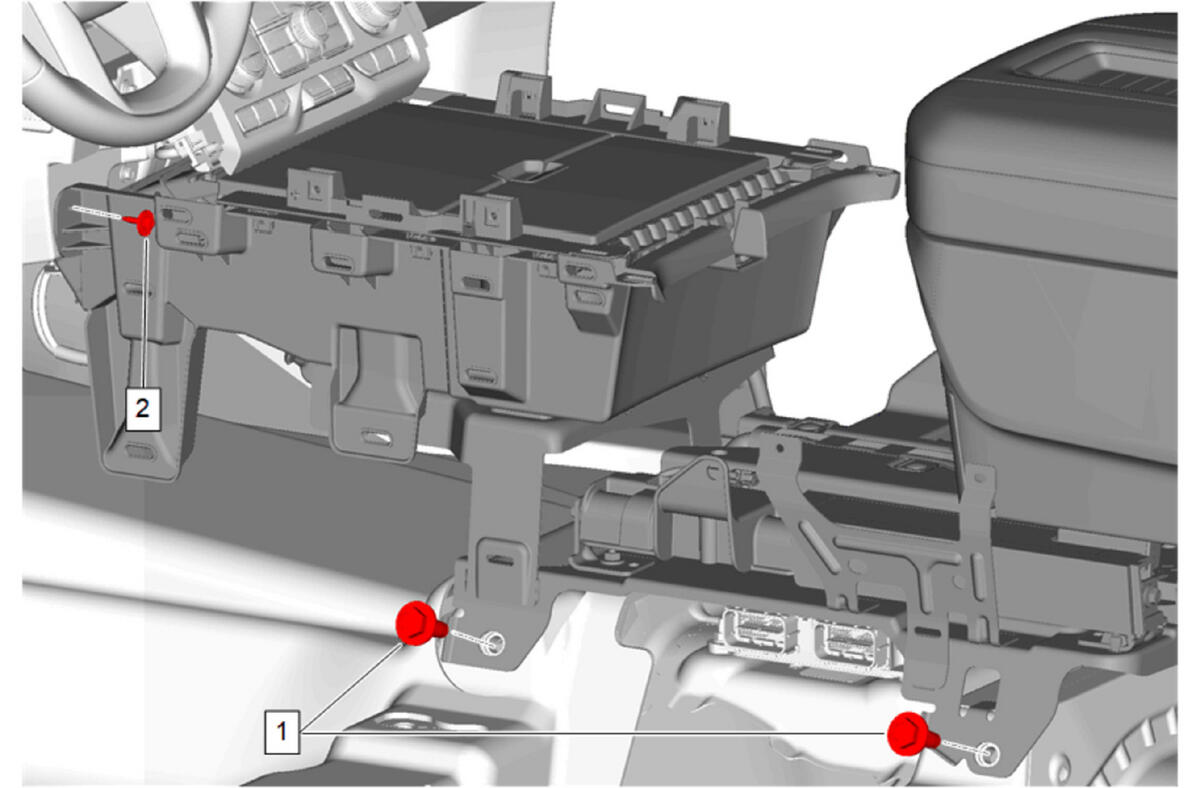

  8. GM5606861Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  9. Front Floor Console Retainer Bolt (2) - Install and tighten - Fastener Specifications
  10. GM5544158Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Install

  11. GM5544156Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

  12. GM5544153Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

  13. GM5537710Courtesy of GENERAL MOTORS COMPANY

    Connect and position the wiring harness.

  14. Front Floor Rear Console Side Trim Panel (1) - Install
  15. GM5536231Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

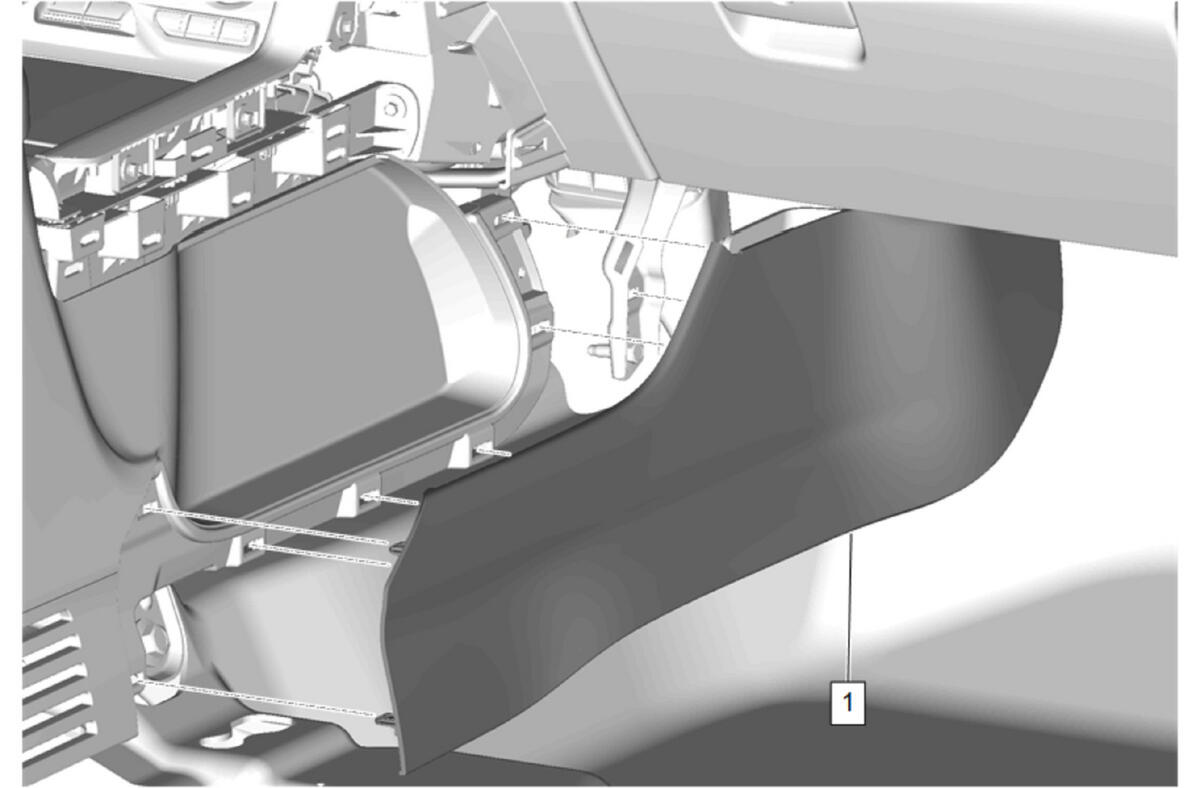

  16. GM5607514Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (1) - Install

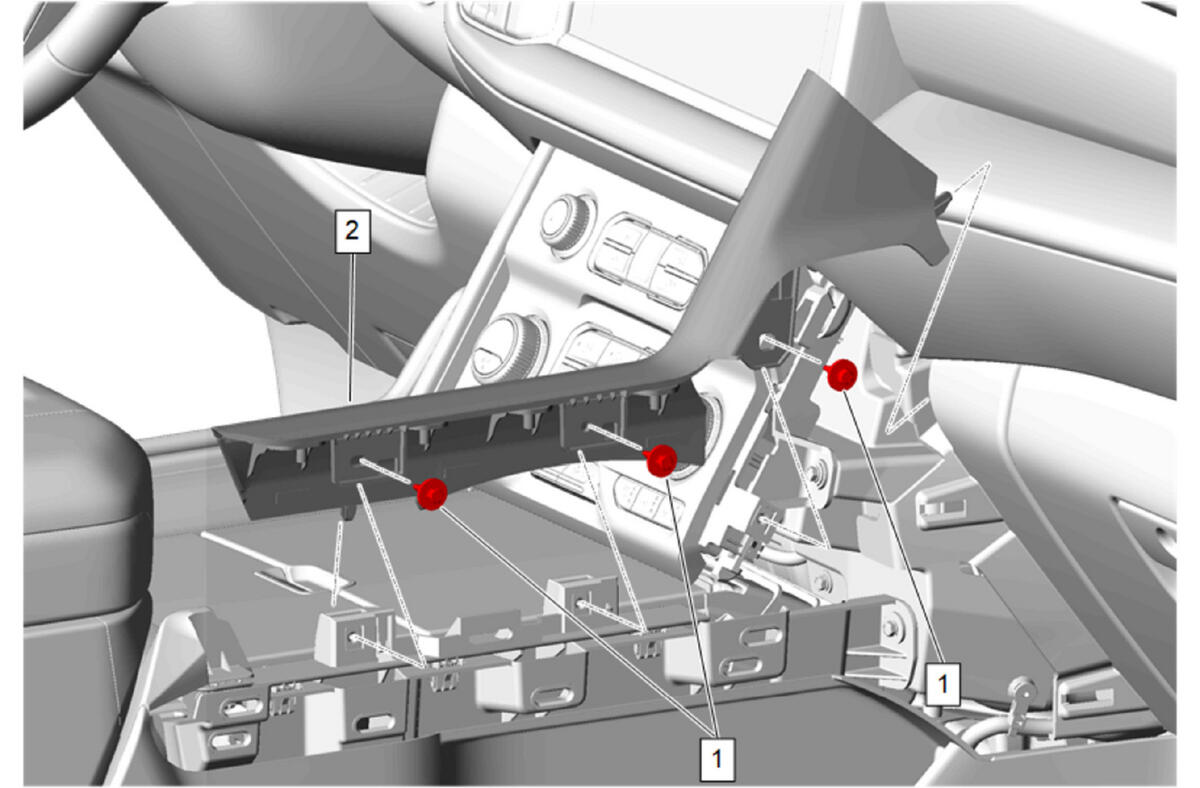

  17. GM5604951Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  18. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

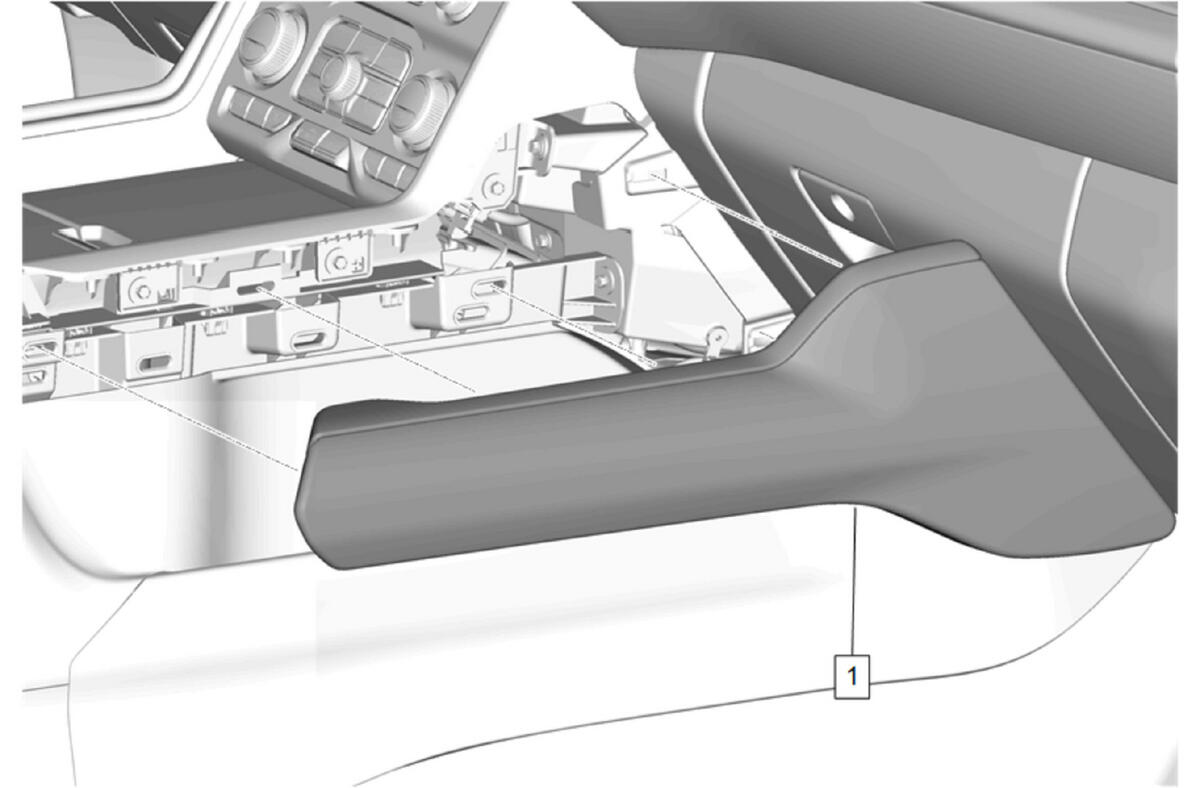

  19. GM5604837Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  20. GM5537709Courtesy of GENERAL MOTORS COMPANY

    Front Floor Rear Console Side Trim Panel (1) - Install

  21. GM5537637Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Lower Panel (1) - Install

  22. GM5536230Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Bolt Access Hole Cover (1) - Install

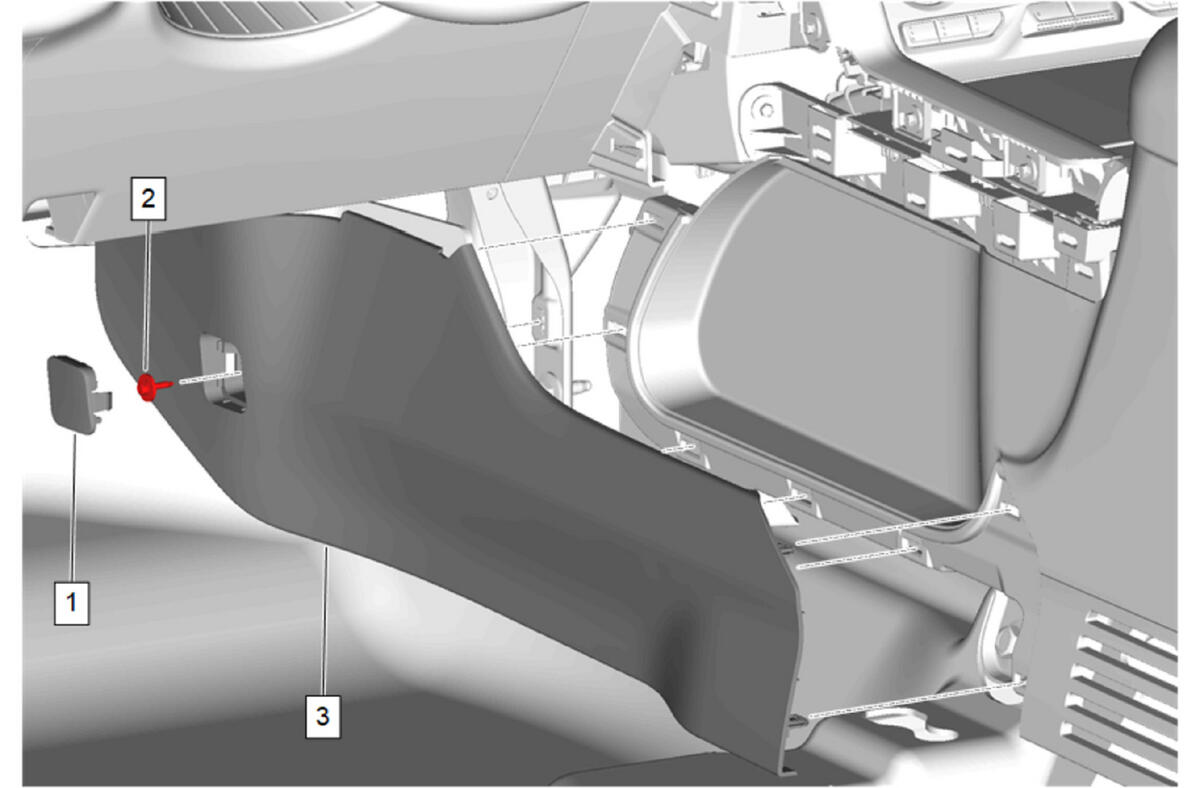

  23. GM5607511Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Extension Panel (3) - Install

  24. Front Floor Console Extension Bolt (2) - Install and tighten - Fastener Specifications
  25. Front Floor Console Extension Panel Bolt Access Hole Cover (1) - Install

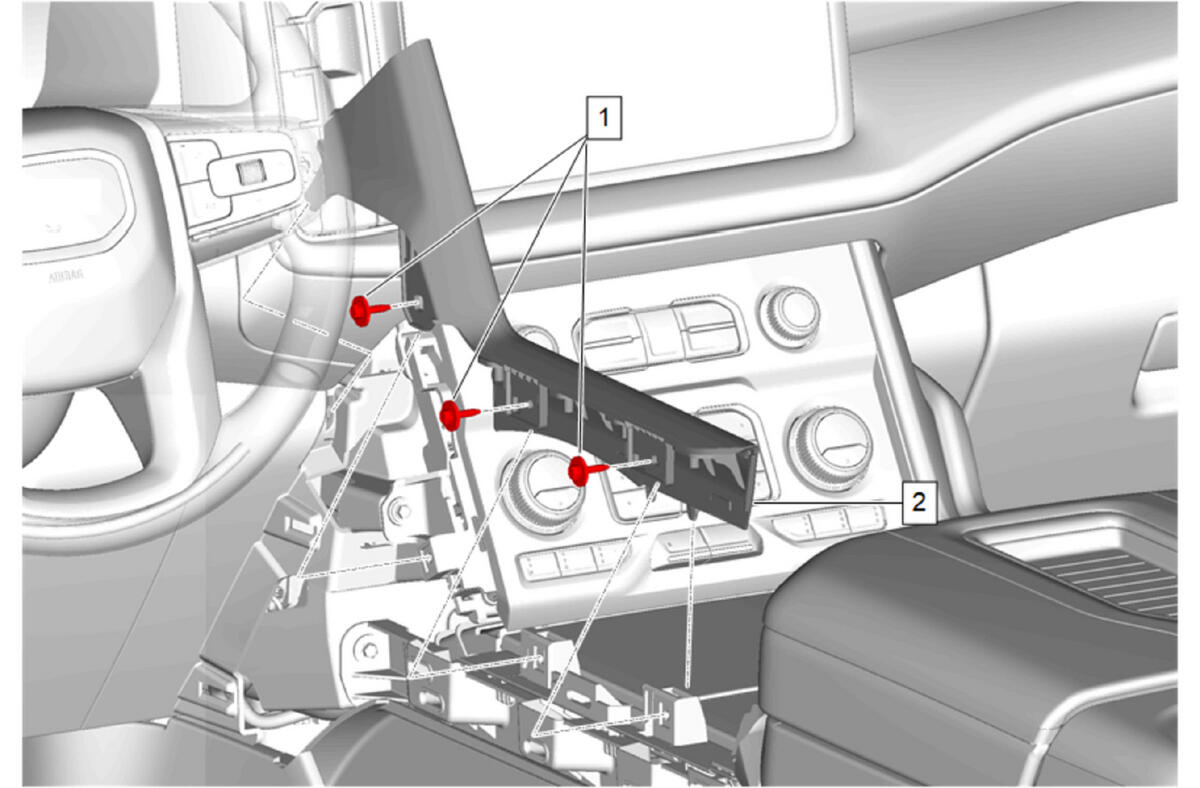

  26. GM5604950Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  27. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

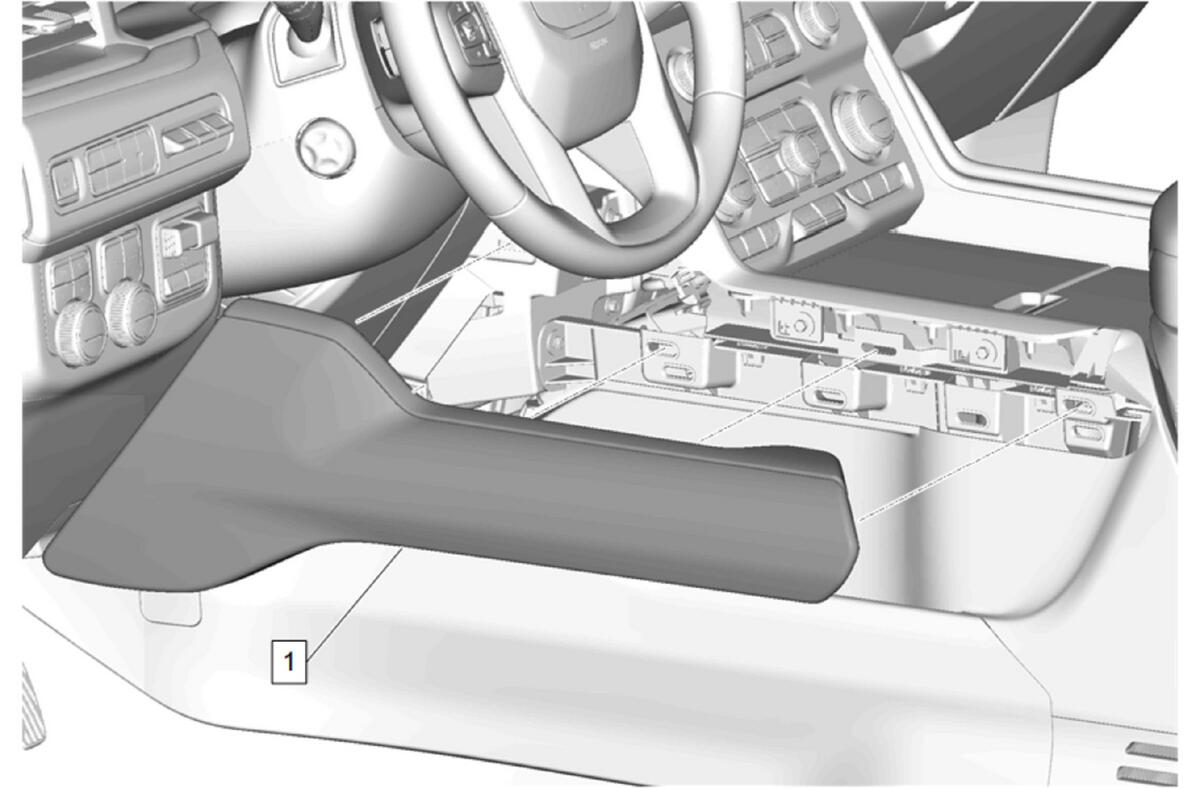

  28. GM5604836Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

  29. Return the armrest compartment to the close position.
  30. GM5573683Courtesy of GENERAL MOTORS COMPANY

    Front Seat (2) - Install [ 2x ] - Front Seat Removal and Installation
