Windshield Washer Pump Replacement

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

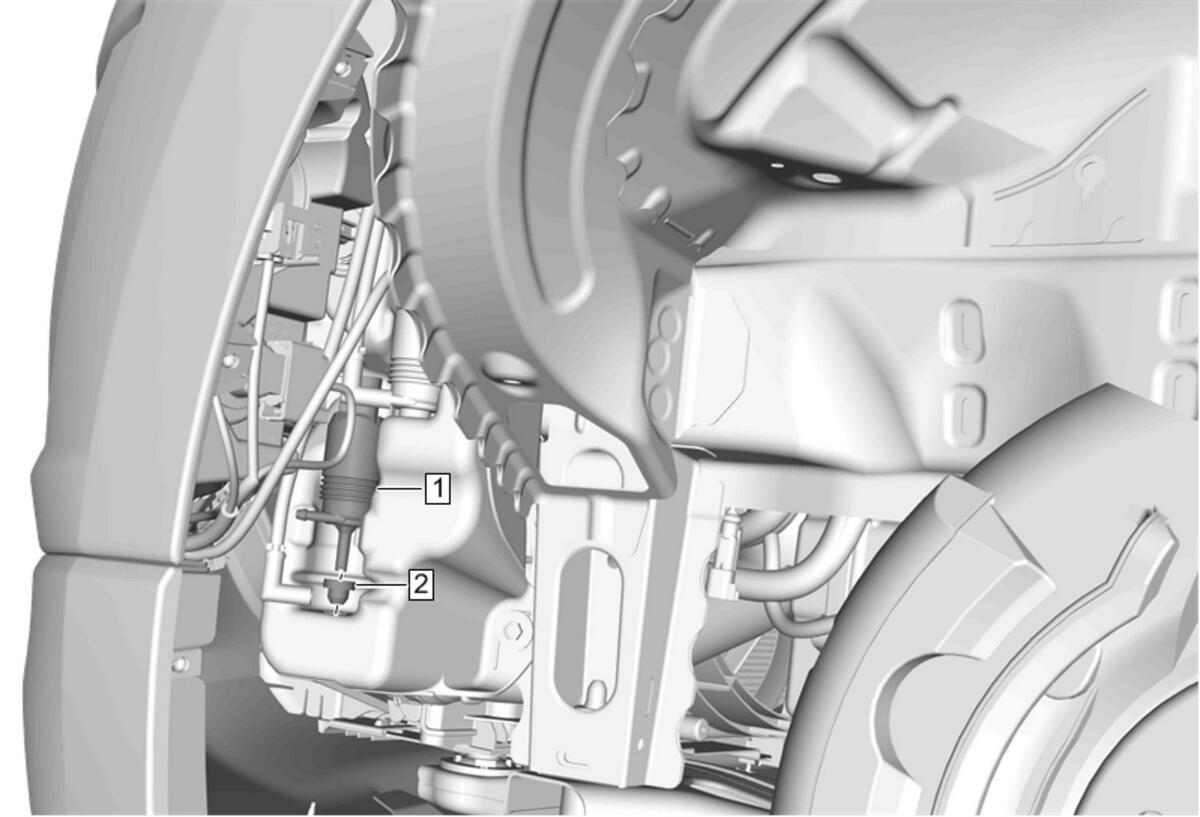

Callout	Component Name
Preliminary Procedures Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain) Place a clean suitable drain pan under the windshield washer solvent container.
1	Windshield Washer Pump Procedure Disconnect the electrical connector. Disconnect the windshield washer pump hose. Using two flat-bladed tools under the washer pump, pry upward in order to remove the pump from the washer container.
2	Windshield Washer Pump Grommet Procedure Using two flat-bladed tools under the washer pump grommet, pry upward in order to remove the grommet from the washer container. NOTE: Install a new grommet. DO NOT reuse the old grommet.

Callout

Component Name

Preliminary Procedures

Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain)
Place a clean suitable drain pan under the windshield washer solvent container.

Windshield Washer Pump

Procedure

Disconnect the electrical connector.
Disconnect the windshield washer pump hose.
Using two flat-bladed tools under the washer pump, pry upward in order to remove the pump from the washer container.

Windshield Washer Pump Grommet
Procedure
Using two flat-bladed tools under the washer pump grommet, pry upward in order to remove the grommet from the washer container.

NOTE:

Install a new grommet. DO NOT reuse the old grommet.
