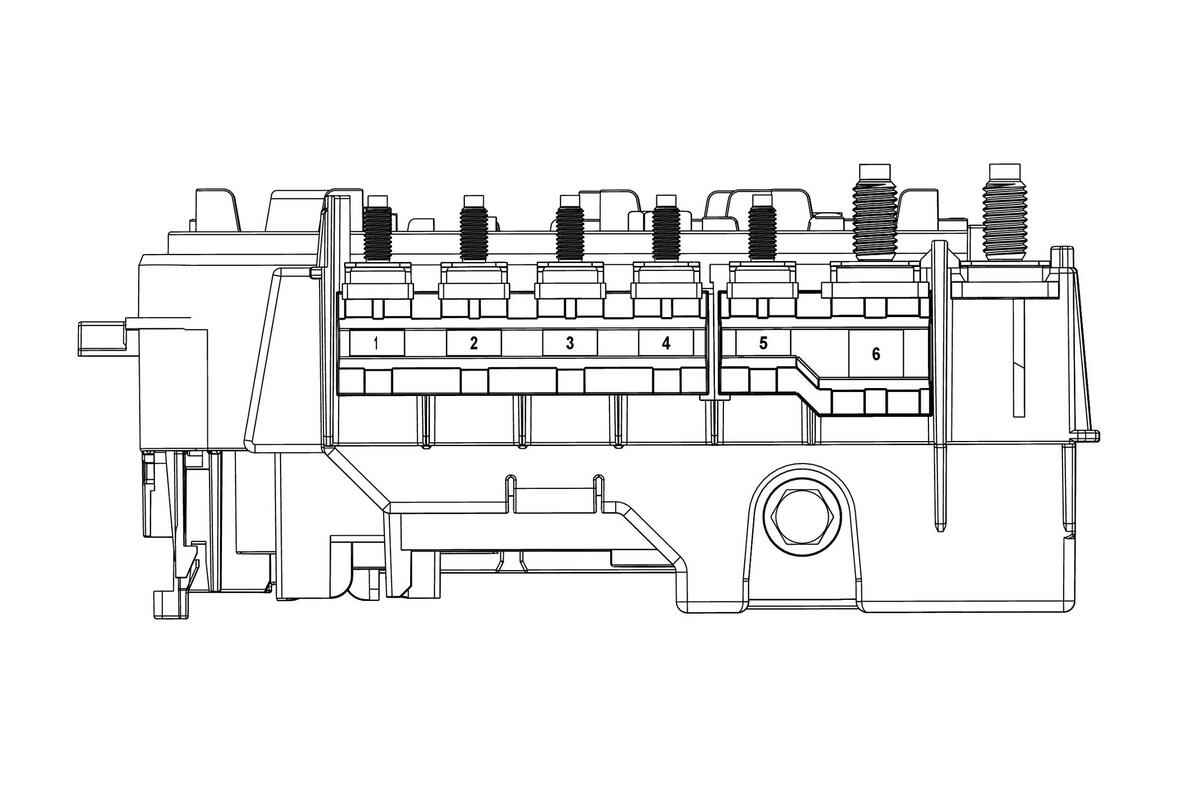

X50A Fuse Block - Underhood, Side View
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
X50A Fuse Block - Underhood
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| 1 | - | F1UB | 80A |
|
| 2 | - | F2UB | 80A |
|
| 3 | - | F3UB | 80A |
|
| 4 | - | F4UB | 80A |
|
| 5 | - | F5UB | 80A |
|
| 6 | - | F6UB | - |
|
