Installation Procedure

WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

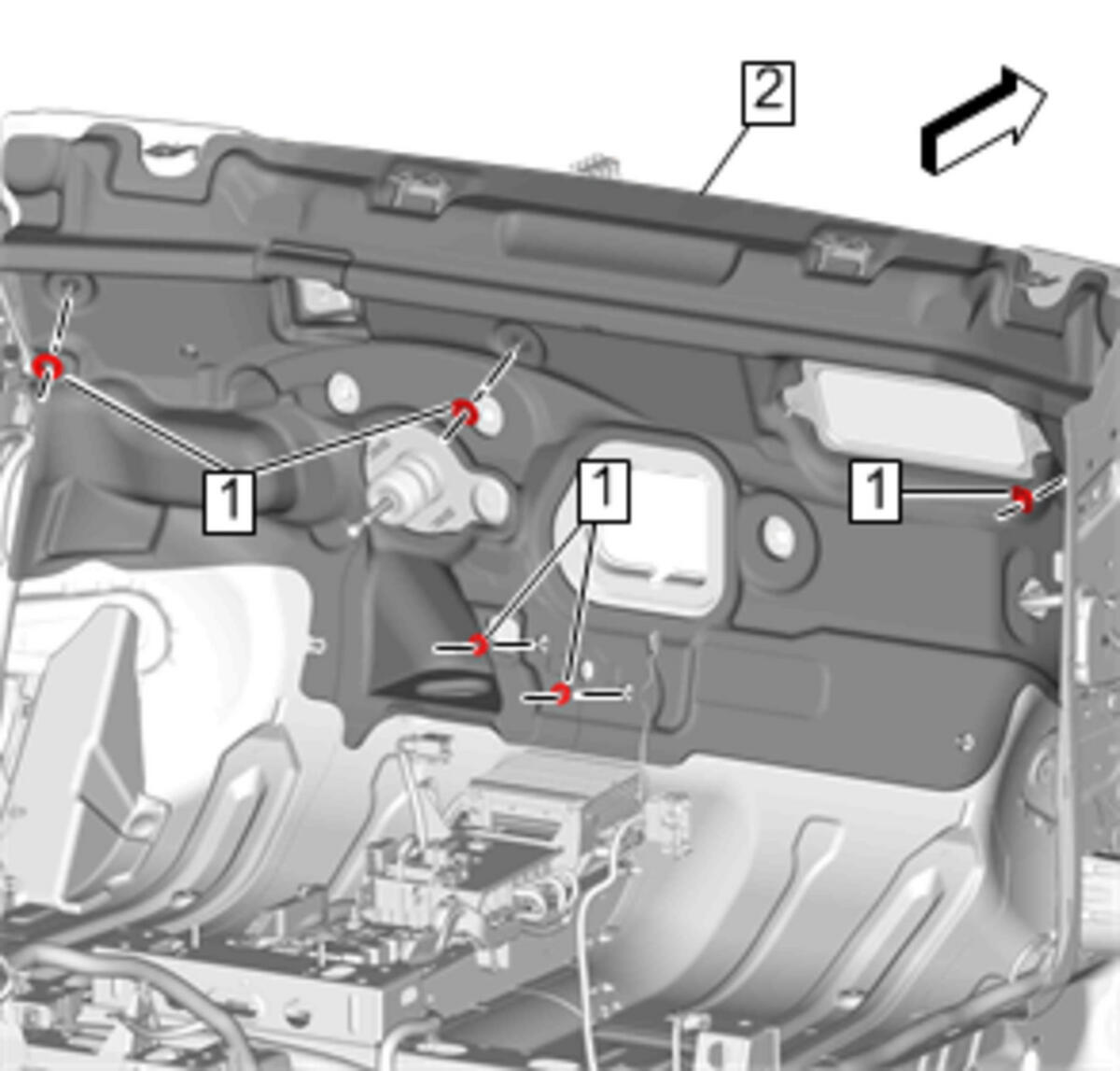

  1. GM4601795Courtesy of GENERAL MOTORS COMPANY

    Dash Panel Inner Insulator (2) - Install

  2. Dash Panel Inner Insulator Retainer (1) - Install [5x]

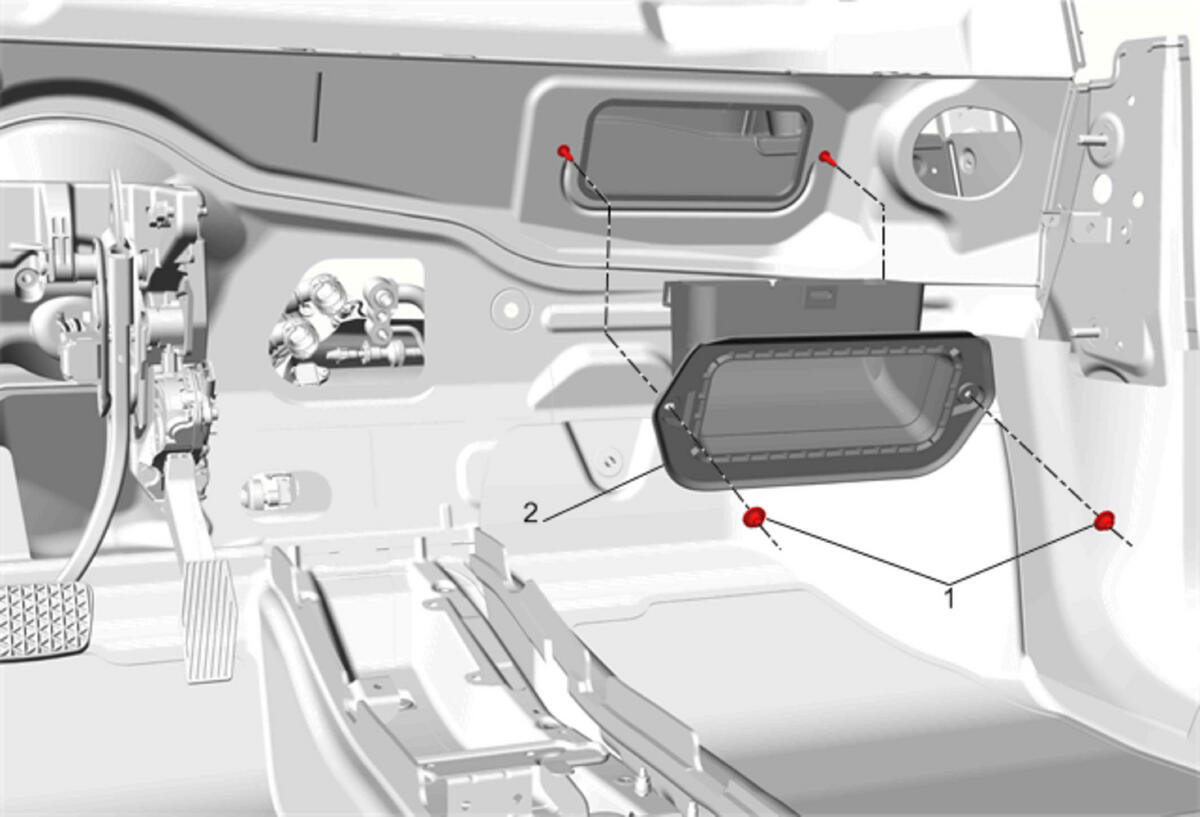

  3. GM3914252Courtesy of GENERAL MOTORS COMPANY

    Air Inlet Duct (2) - Install - Air Inlet Duct Replacement

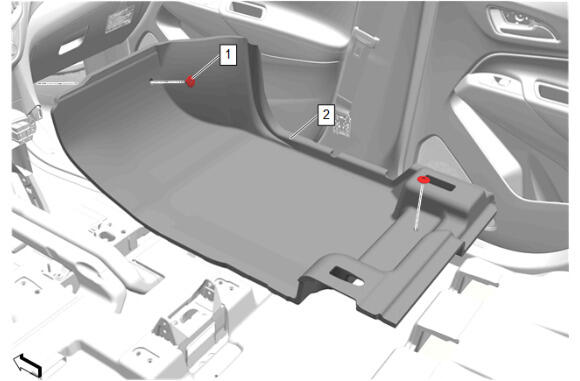

  4. GM4598323Courtesy of GENERAL MOTORS COMPANY

    Front Floor Panel Carpet - Right Side (2) - Install - Front Floor Panel Carpet Replacement - Right Side

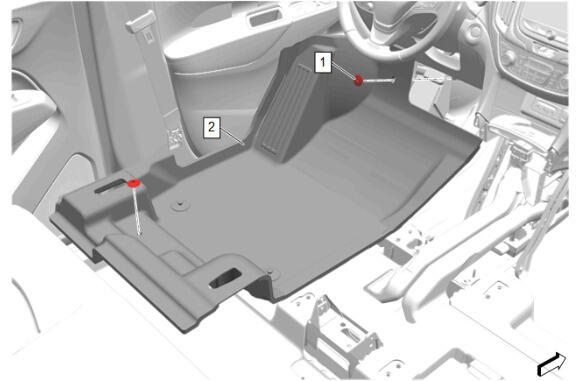

  5. GM4598396Courtesy of GENERAL MOTORS COMPANY

    Front Floor Panel Carpet - Left Side (2) - Install - Front Floor Panel Carpet Replacement - Left Side
