Front Suspension Automatic Forward Lighting Position Sensor Replacement
WARNING: This page is about a different car, the 2020 GMC Terrain and 2020 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

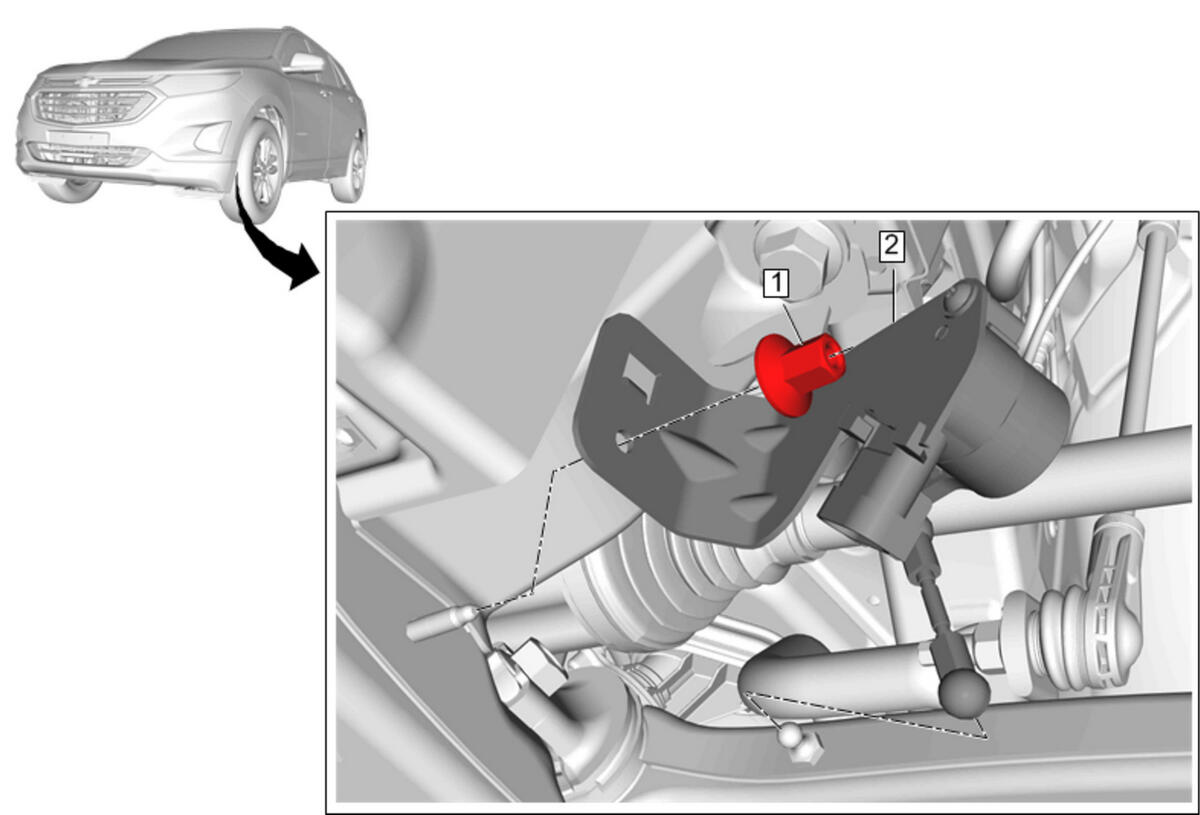

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lifting and Jacking the Vehicle |
|
| 1 | Front Suspension Automatic Forward Lighting Position Sensor Nut
CAUTION:
Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 9 N.m (80 lb in) |
| 2 | Front Suspension Automatic Forward Lighting Position Sensor Procedure Disconnect the ball socket from the ball stud. |
