Fuel Tank Pressure Sensor Replacement (AWD)

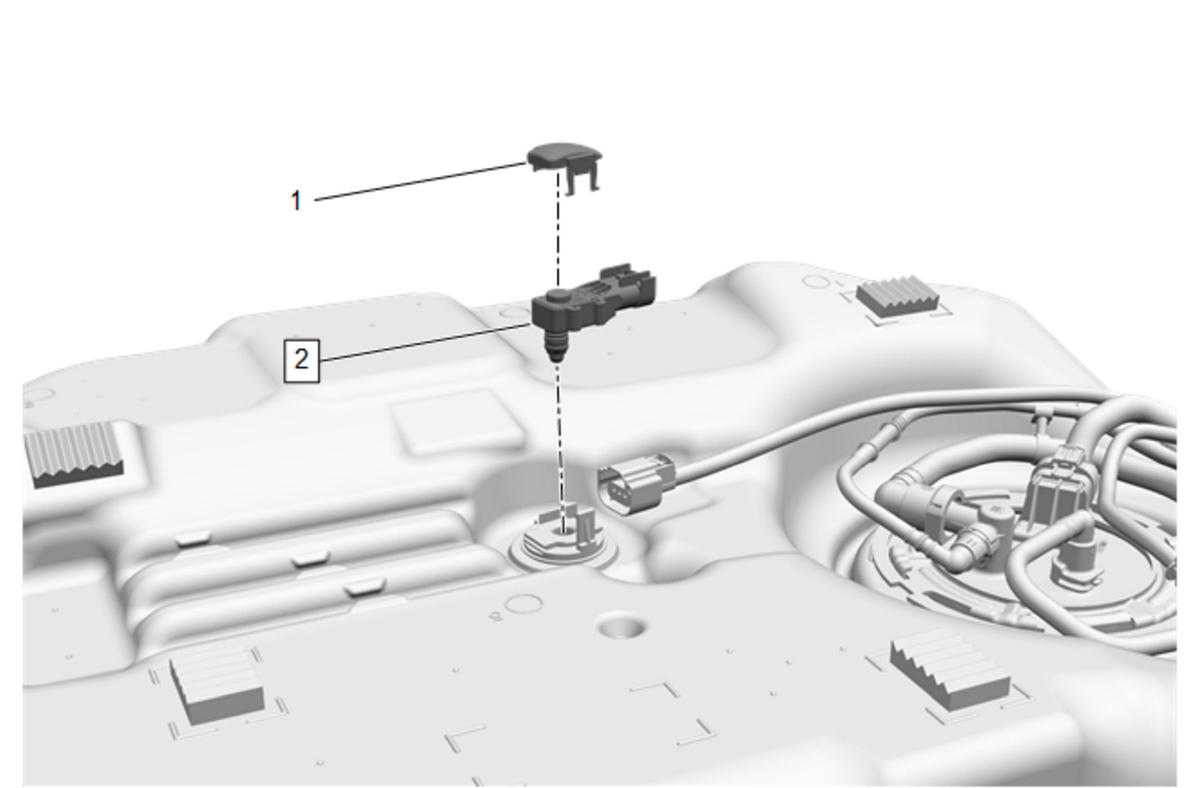

GM5539153Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fuel Tank Replacement (AWD)
1 Fuel Tank Pressure Sensor Cover
2 Fuel Tank Pressure Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tab.
  3. Clean and inspect o-ring and apply engine oil.
