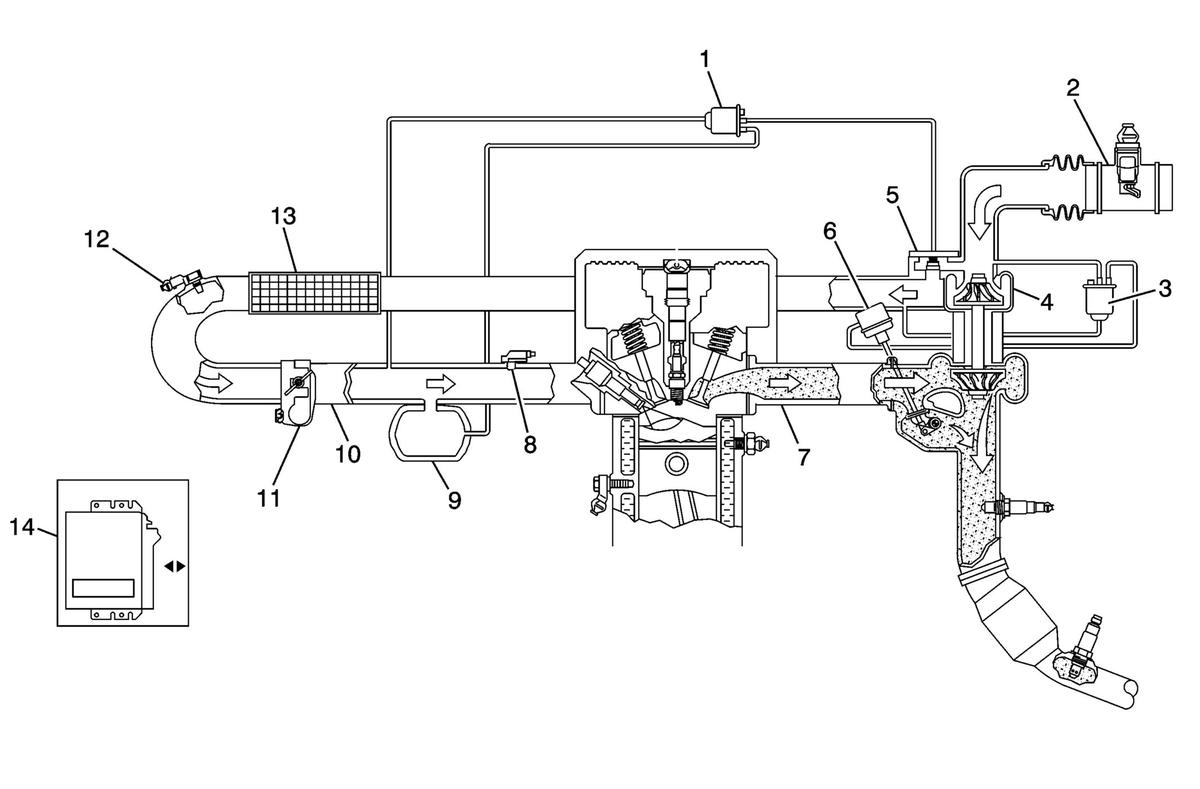

Compressor Air Intake Turbocharger System Description: Notes
| Callout | Component Name |
|---|---|
| 1 | Turbocharger Bypass Solenoid Valve |
| 2 | Multifunction Intake Air Sensor |
| 3 | Turbocharger Wastegate Regulator Solenoid Valve |
| 4 | Turbocharger |
| 5 | Turbocharger Bypass Valve |
| 6 | Turbocharger Wastegate Actuator |
| 7 | Engine Exhaust Manifold |
| 8 | Manifold Absolute Pressure (MAP) Sensor |
| 9 | Vacuum Tank (Integral to Intake Manifold) |
| 10 | Intake Manifold |
| 11 | Throttle Body |
| 12 | Intake Air (Boost) Pressure and Temperature Sensor |
| 13 | Charge Air Cooler |
| 14 | Engine Control Module (ECM) |
