Installation Procedure

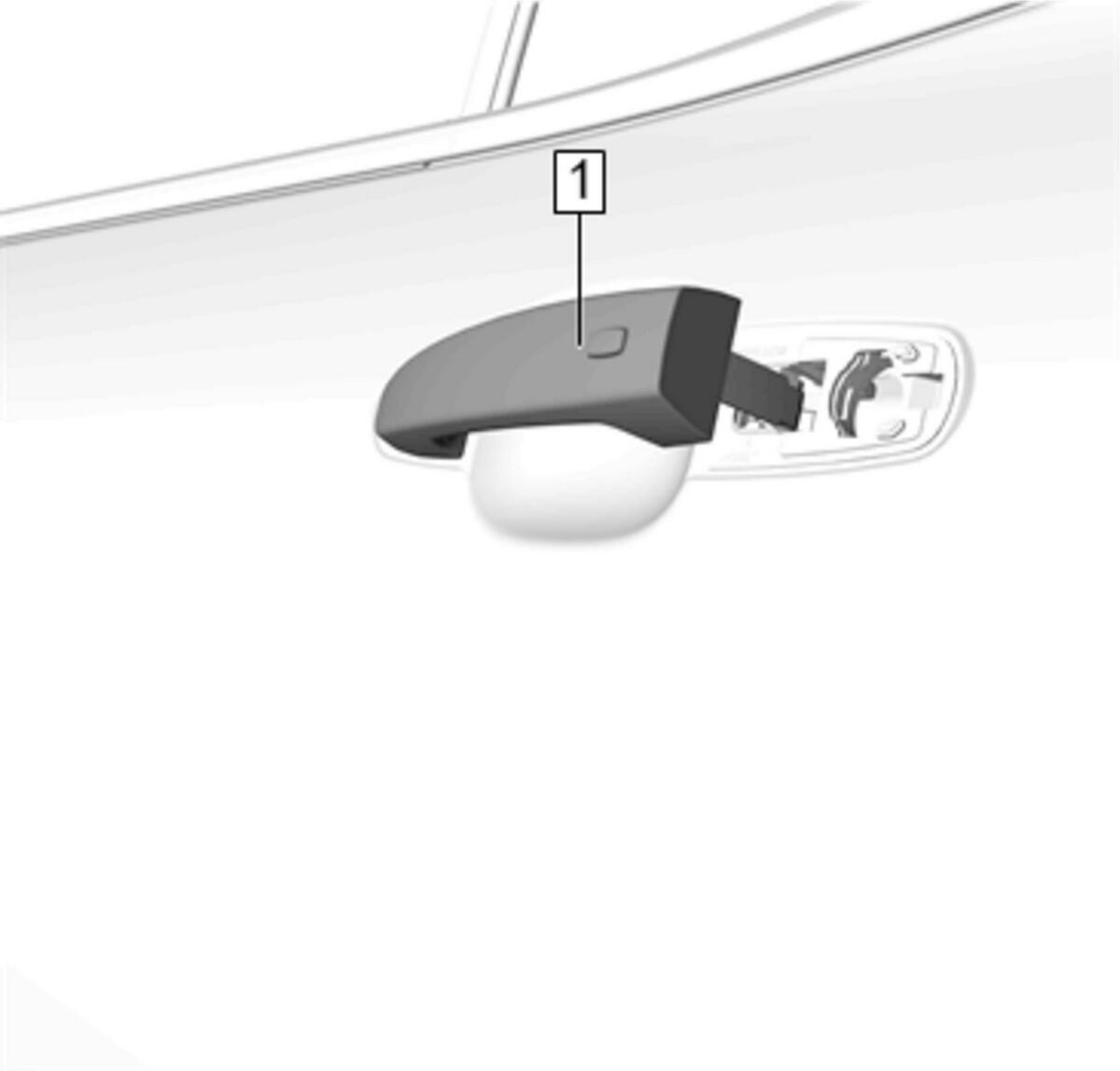

  1. GM4572412Courtesy of GENERAL MOTORS COMPANY

    Pull the door handle (1) out to the open position.

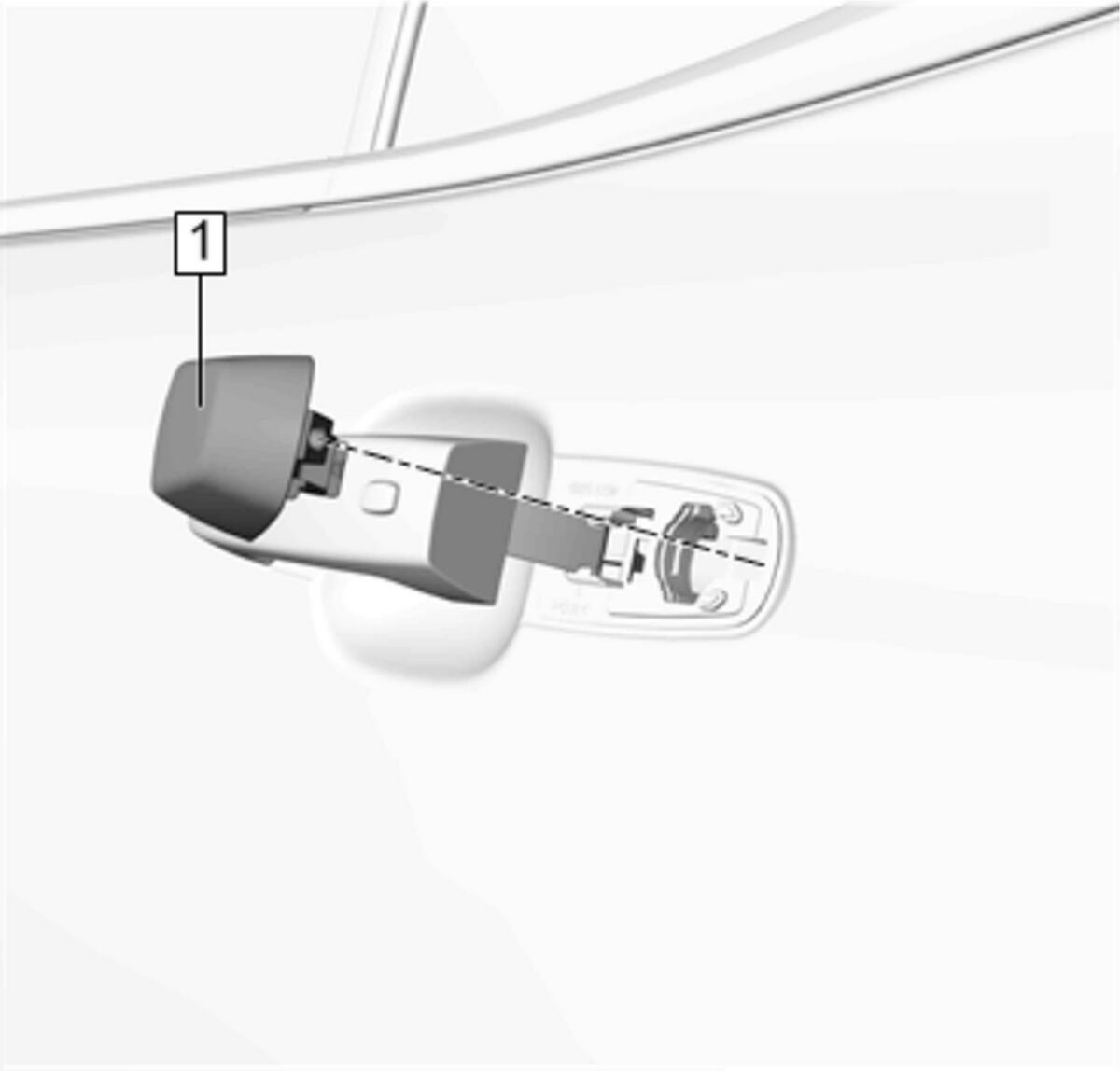

  2. GM4572405Courtesy of GENERAL MOTORS COMPANY

    Rear Side Door Lock Cylinder Opening Cover (1) - Install

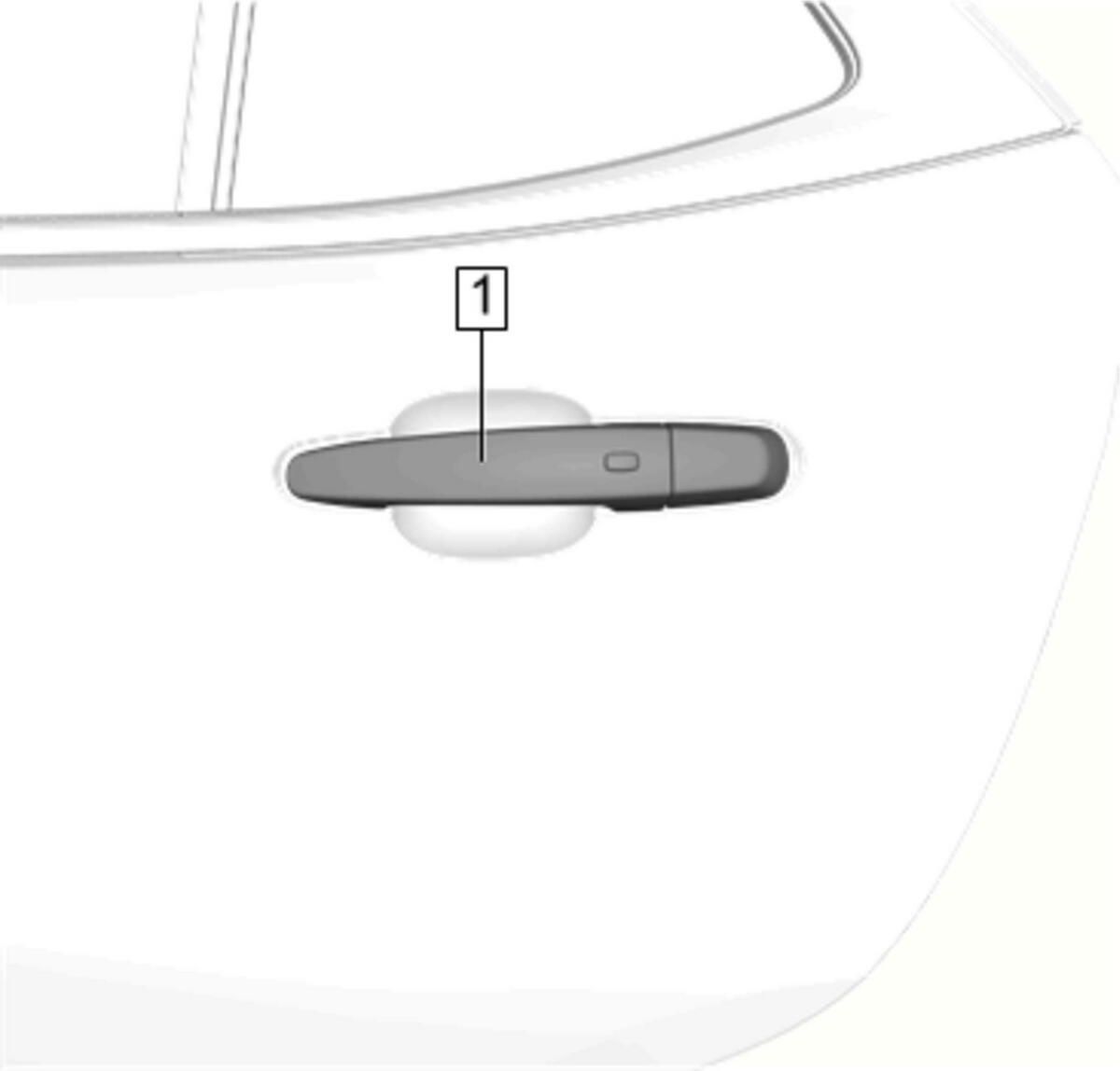

  3. GM4572420Courtesy of GENERAL MOTORS COMPANY

    Place the rear side door outside handle (1) in the closed position.

  4. GM4569624Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Rear Side Door Lock Cylinder Opening Cover Screw (2) - Tighten 4.7 N.m (42 lb in)

  5. Rear Side Door Access Hole Cover (1) - Install
