Liftgate Release Switch Replacement - Exterior (Terrain)

Courtesy of GENERAL MOTORS COMPANY

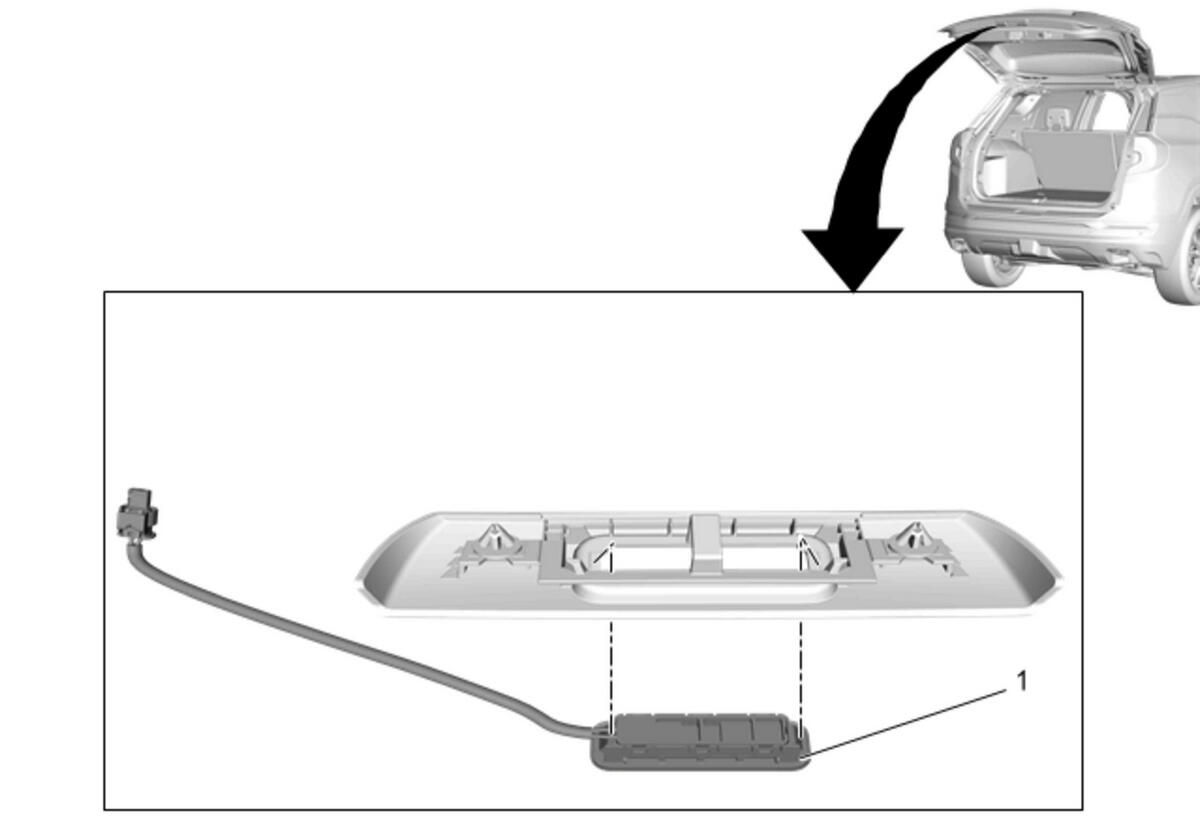

Callout	Component Name
Preliminary Procedure Rear Closure Fixed Handle Applique Replacement (Terrain)
1	Liftgate Release Switch Procedure Disconnect the electrical connector. Release the liftgate release switch retainers and push out from the rear closure fixed handle applique.

Callout

Component Name

Liftgate Release Switch

Procedure

Disconnect the electrical connector.
Release the liftgate release switch retainers and push out from the rear closure fixed handle applique.
