Door Lock Switch Replacement - Driver Side (Terrain)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement (Terrain)

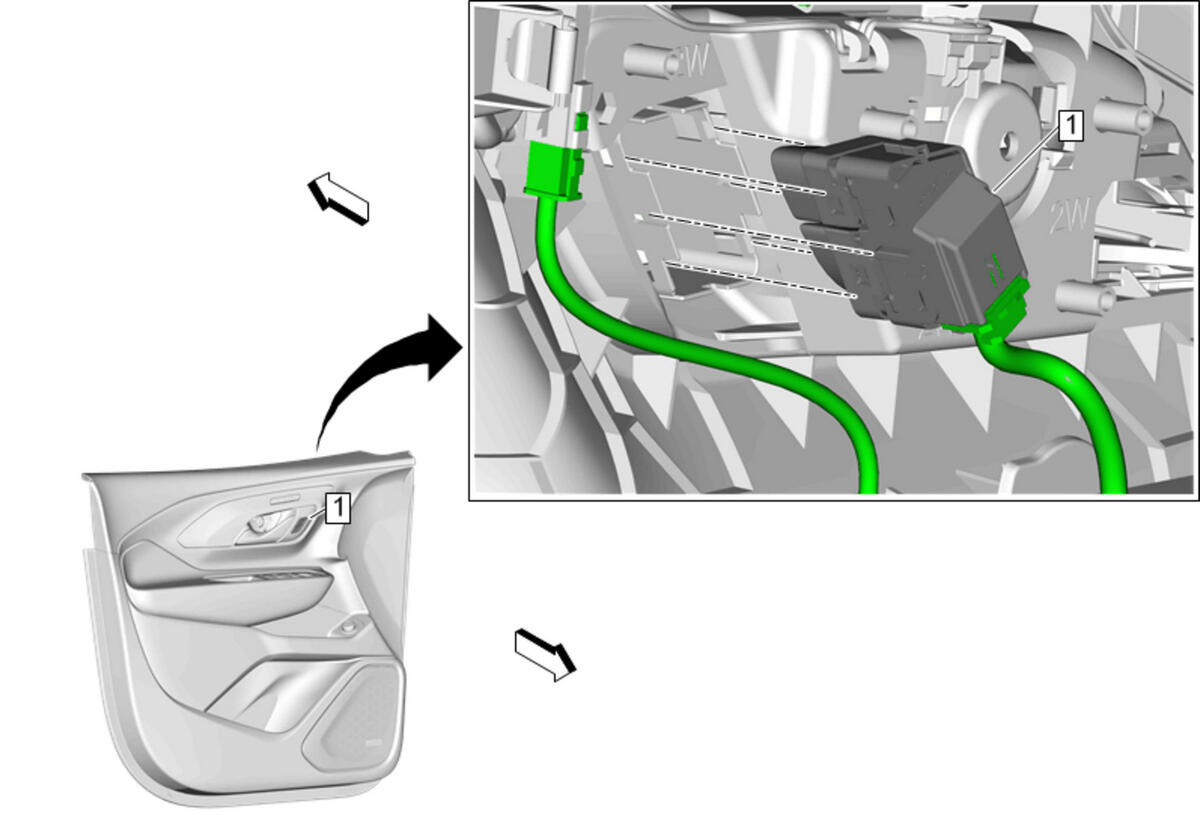

1	Door Lock Switch - Driver Side Procedure From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim. Disconnect the electrical connector.

Callout

Component Name

Door Lock Switch - Driver Side

Procedure

From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
Disconnect the electrical connector.
