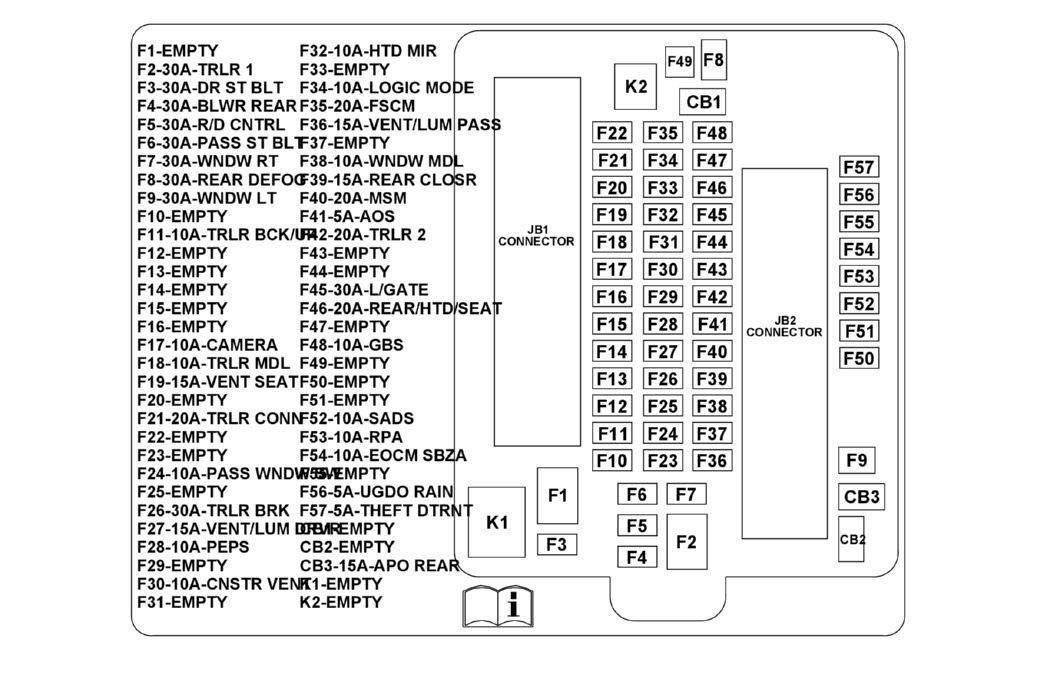

X53A Fuse Block - Rear Body Label

WARNING: This page is about a different car, the 2020 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.
GM4293775Courtesy of GENERAL MOTORS COMPANY
