Installation Procedure

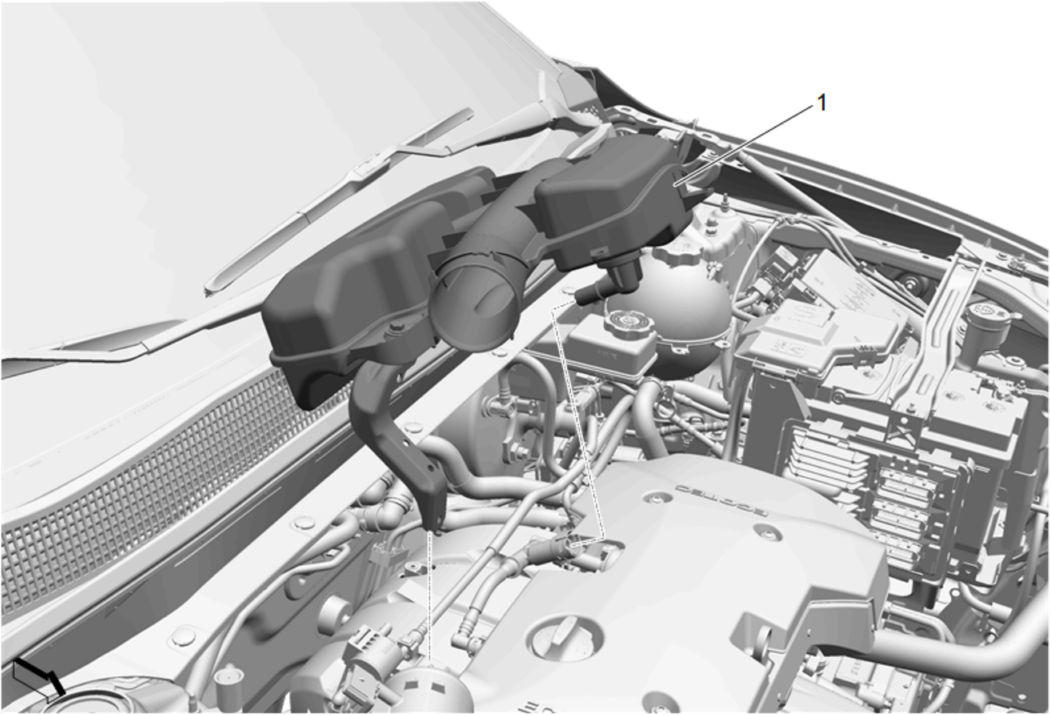

  1. Air Cleaner Outlet Duct (1) - Install
    GM5399591Courtesy of GENERAL MOTORS COMPANY

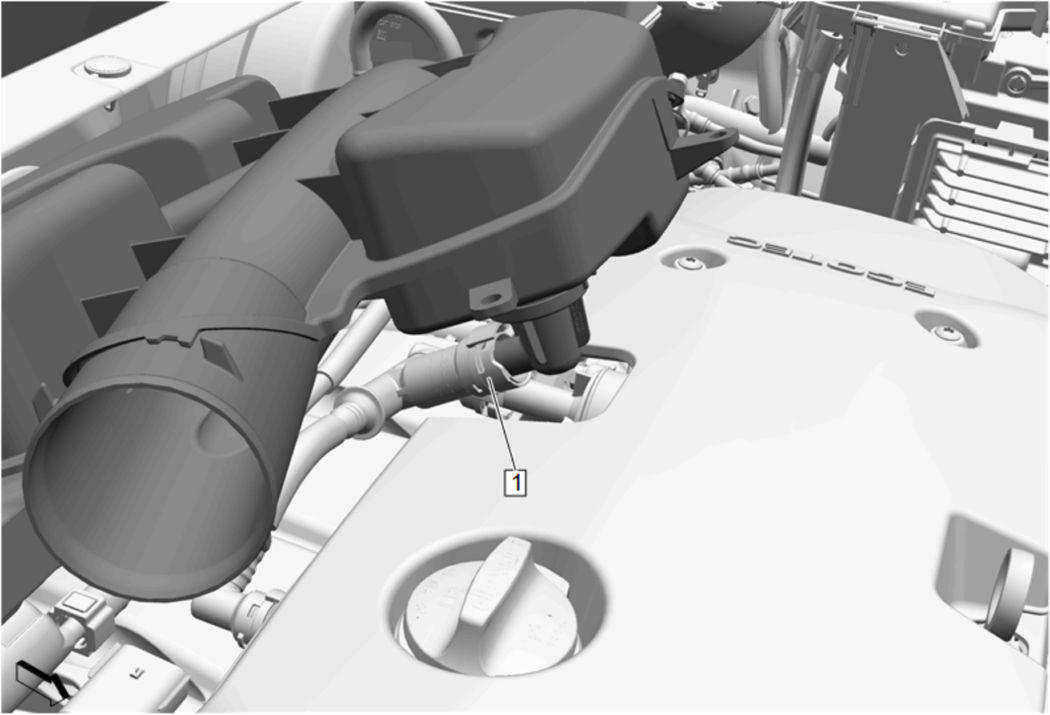

  2. Positive Crankcase Ventilation Pipe (1) - Connect - Plastic Collar Quick Connect Fitting Service
    GM5399614Courtesy of GENERAL MOTORS COMPANY

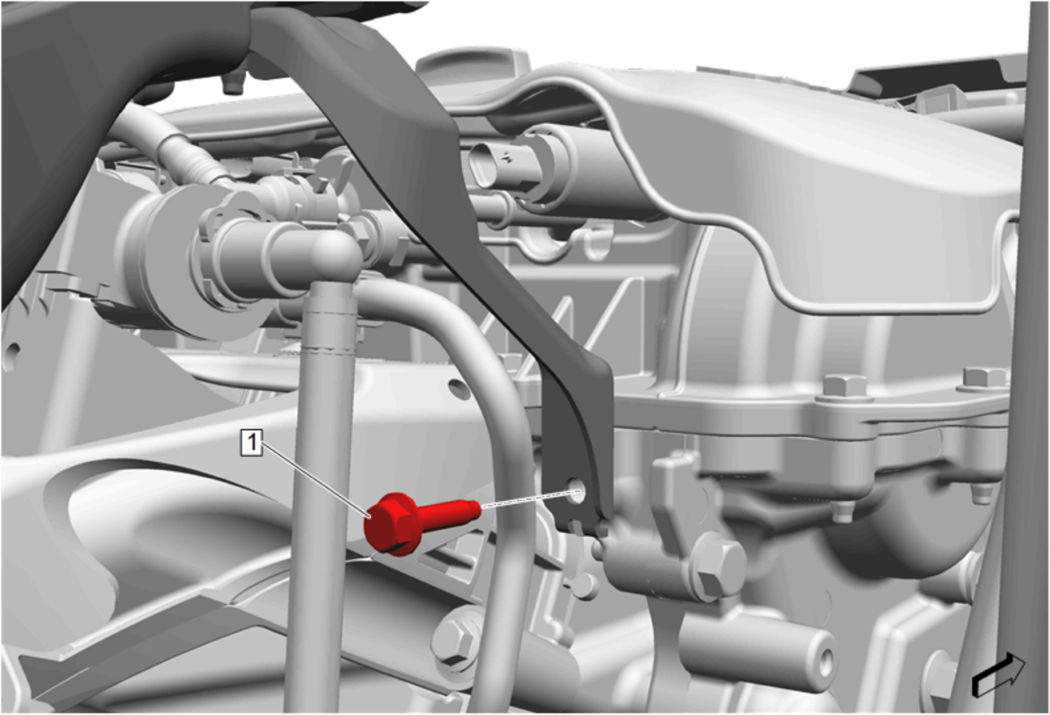

  3. Air Cleaner Outlet Duct Bolt (1) - Install and tighten 9 N.m (80 lb in)
    GM5399611Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

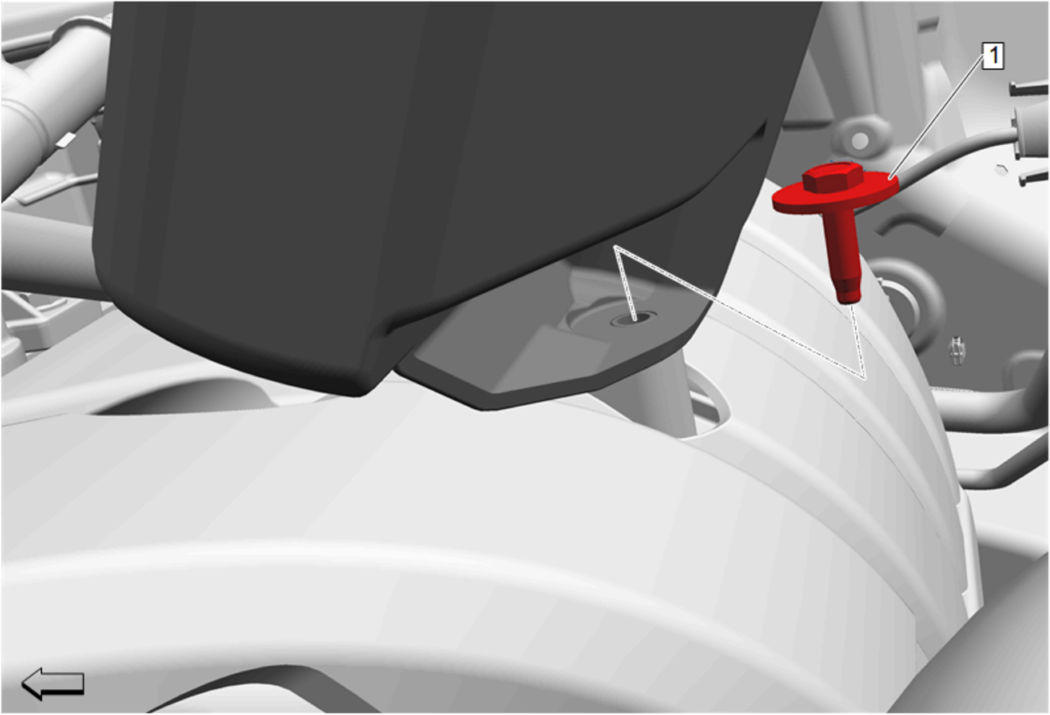

  4. Air Cleaner Outlet Duct Bolt (1) - Install and tighten 9 N.m (80 lb in)
    GM5399608Courtesy of GENERAL MOTORS COMPANY

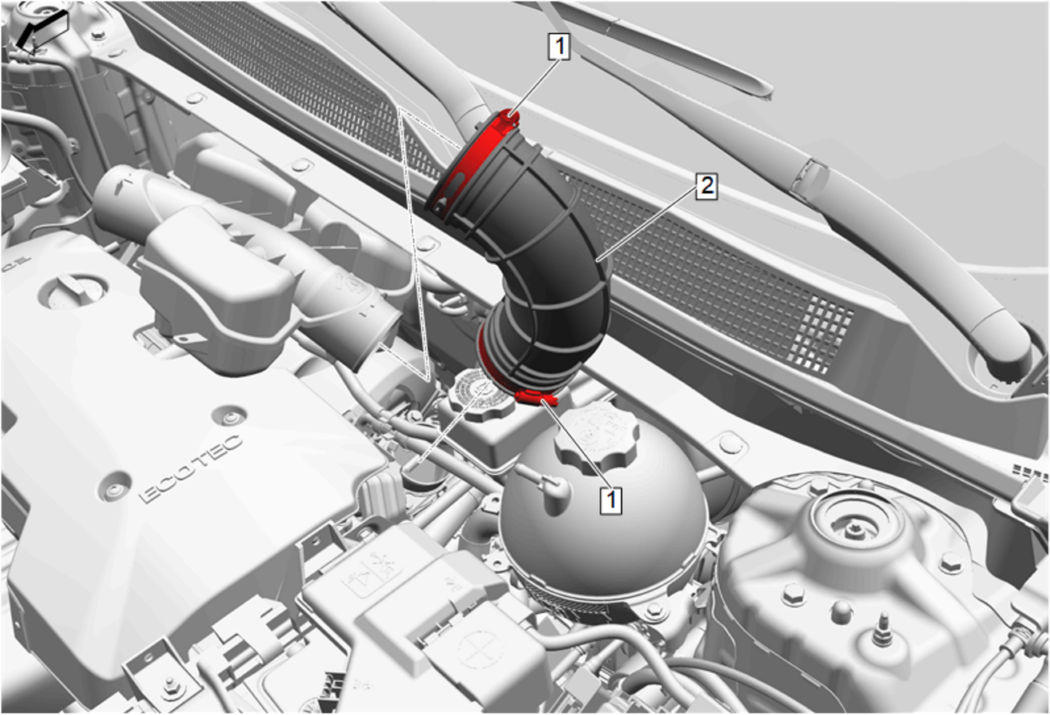

  5. Air Cleaner Outlet Duct (2) - Install
    GM5399606Courtesy of GENERAL MOTORS COMPANY
  6. Air Cleaner Outlet Duct Clamp (1) - Tighten [2x] 4 N.m (35 lb in)
  7. Air Cleaner Outlet Front Duct - Install - Air Cleaner Outlet Front Duct Replacement
  8. Radiator Surge Tank Inlet Hose @ Air Cleaner Outlet Duct - Reposition - Radiator Surge Tank Inlet Hose Replacement (LCV From Radiator Surge Tank to Radiator and Radiator Surge Tank Outlet Pipe)
