Home >> GMC >> 2021 >> Acadia SL >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger

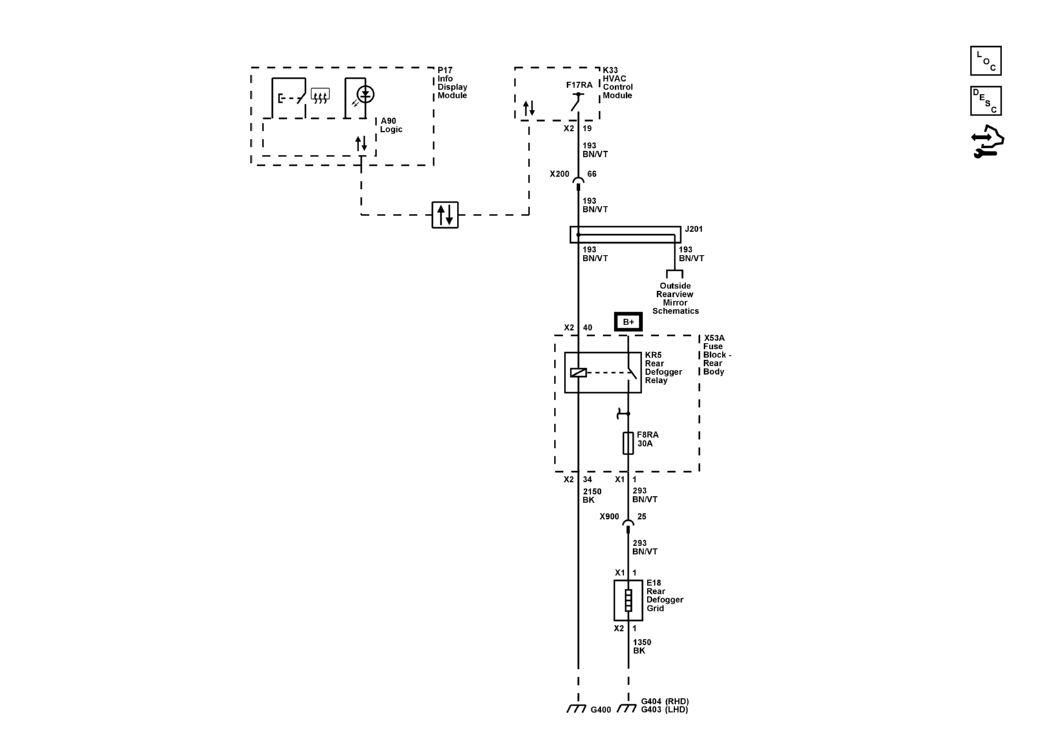

Defogger Wiring Schematics: Defogger

GM5481393

Courtesy of GENERAL MOTORS COMPANY
