Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

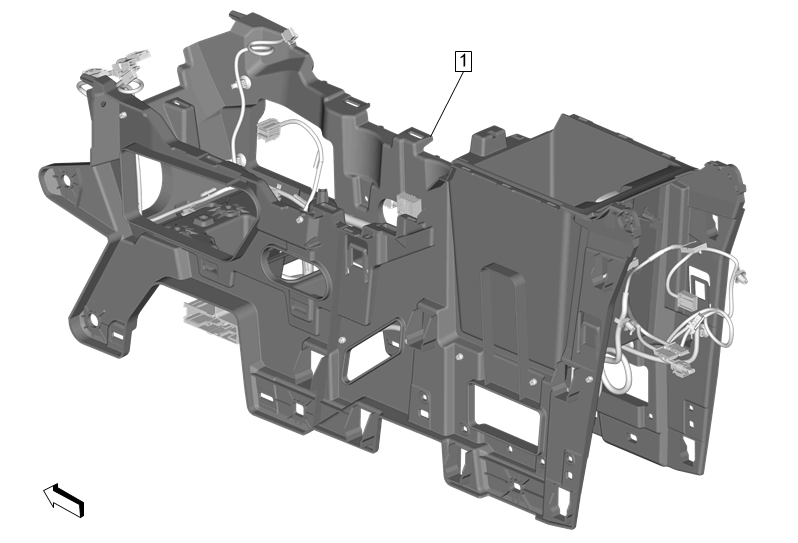

Front Floor Lower Console (1)
Courtesy of GENERAL MOTORS COMPANY

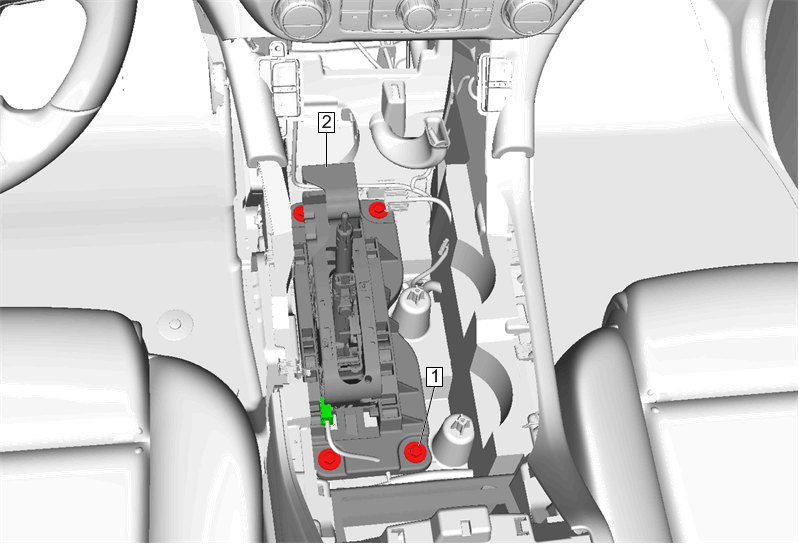

Transmission Control Assembly (2) - Install - Transmission Control Replacement (With Base) , or Transmission Control Replacement (Without Base)
Courtesy of GENERAL MOTORS COMPANY

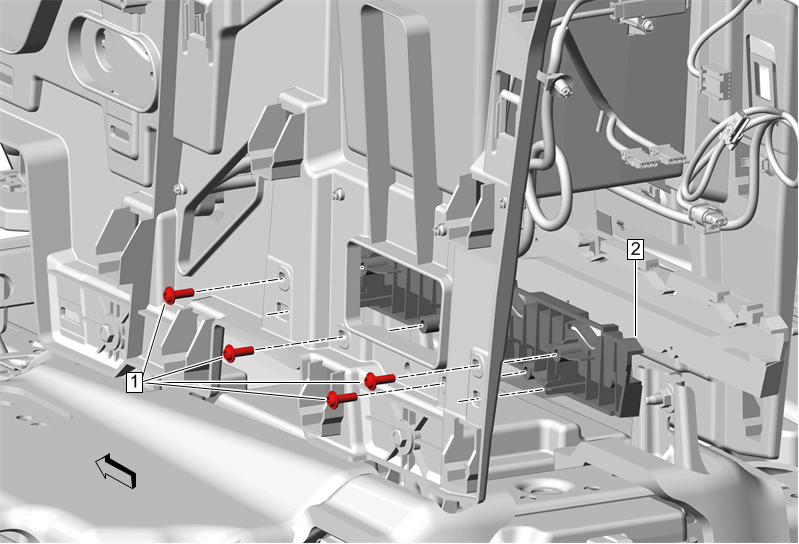

Front Floor Console Rear Cup Holder Guide - Right Side (2) - Install - Front Floor Console Rear Cup Holder Guide Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Cup Holder Guide - Left Side (2) - Install - Front Floor Console Rear Cup Holder Guide Replacement
Courtesy of GENERAL MOTORS COMPANY

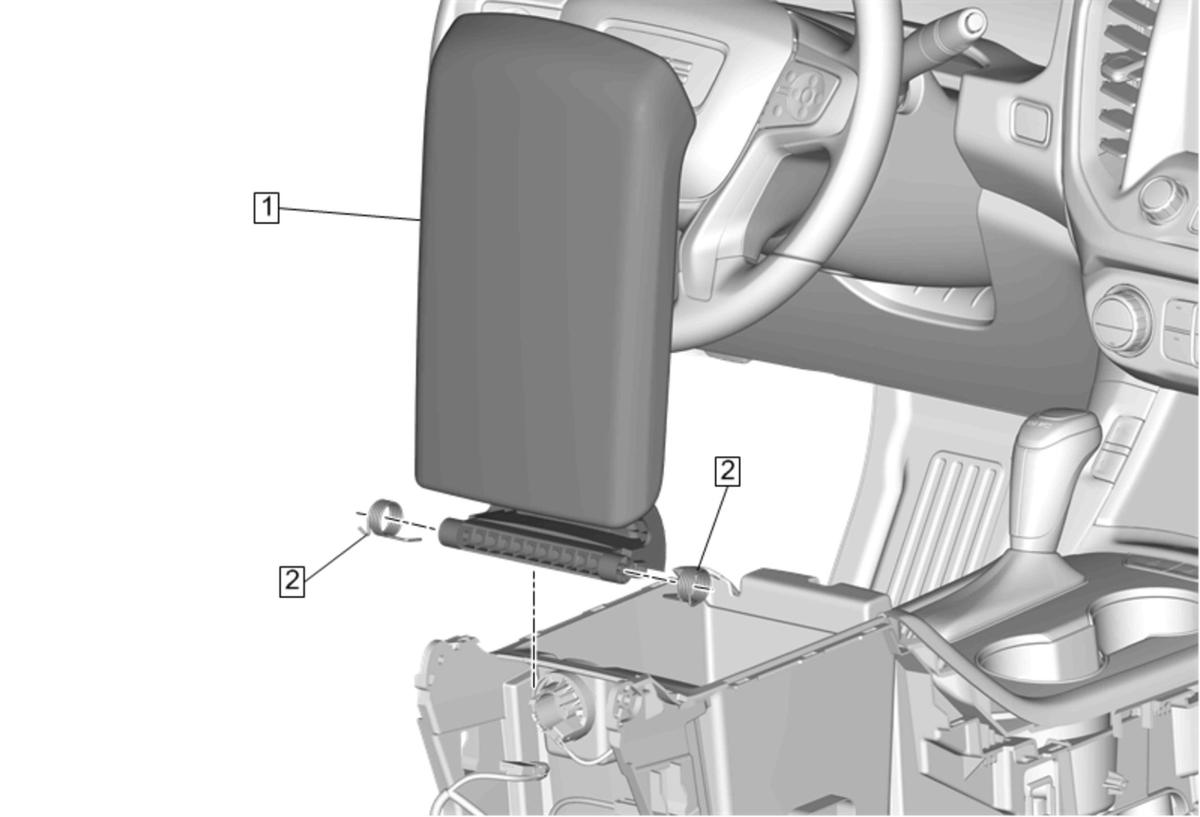

Front Floor Console Armrest (1) - Install - Front Floor Console Armrest Replacement
Courtesy of GENERAL MOTORS COMPANY

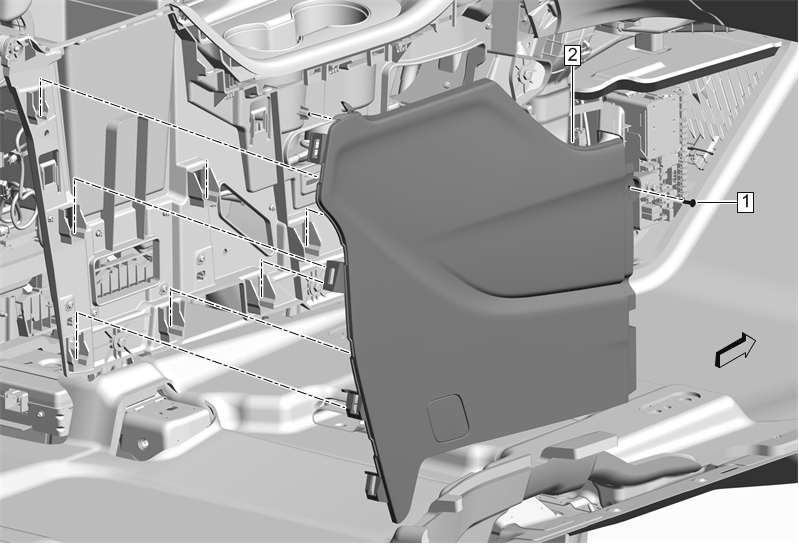

Front Floor Rear Console Side Trim Panel - Right Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

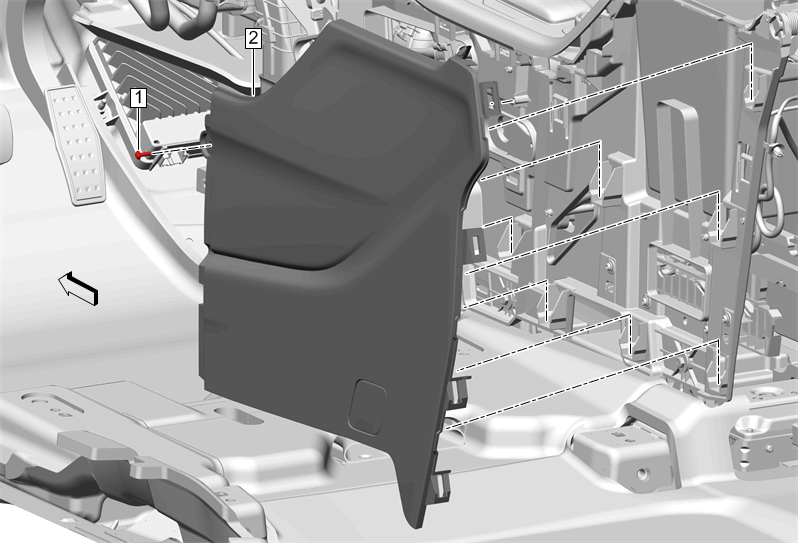

Front Floor Rear Console Side Trim Panel - Left Side (2) - Install - Front Floor Rear Console Side Trim Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Assembly (1) - Install - Front Floor Console Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Transmission Control Lever Knob (3) - Install - Transmission Control Lever Knob Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (3) - Install - Front Floor Console Extension Panel Replacement - Right Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (3) - Install - Front Floor Console Extension Panel Replacement - Left Side
