Driver Door Components
Driver Door Components

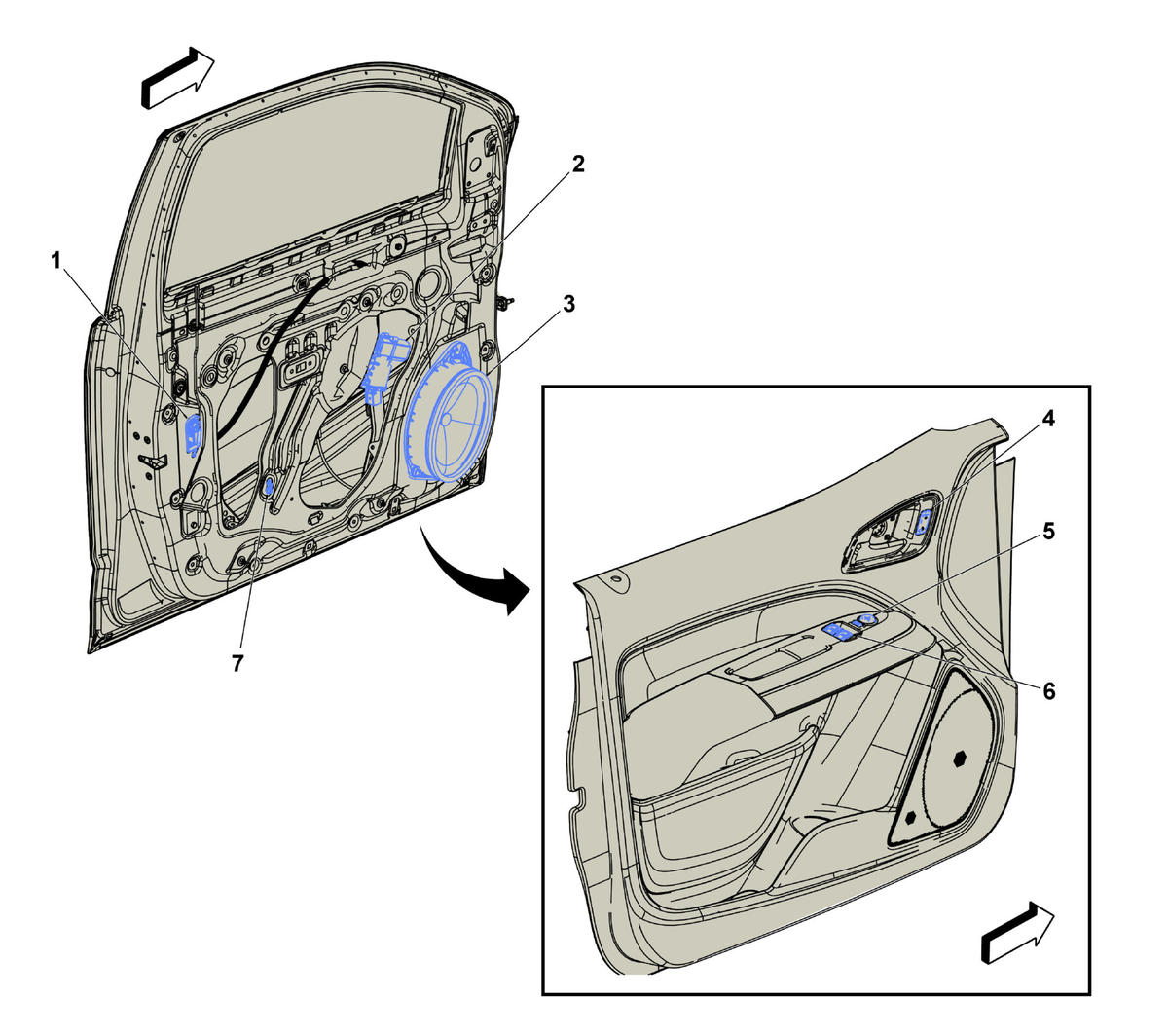

| Component Name | Callout |
|---|---|
| A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver | 1 |
| M74D Window Motor - Driver M74D Window Motor - Driver | 2 |
| P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door | 3 |
| S13D Door Lock Switch - Driver (ATG) S13D Door Lock Switch - Driver | 4 |
| S52 Outside Rearview Mirror Switch (DL6/DL9) S52 Outside Rearview Mirror Switch | 5 |
| S79D Window Switch - Driver S79D Window Switch - Driver | 6 |
| B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front | 7 |
