Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection
  2. GM5207372Courtesy of GENERAL MOTORS COMPANY

    Upper Terminal Cover (3) - Remove

  3. Battery Positive Junction Block Cable Nut (2) - Remove
  4. Lower Terminal Cover (1) - Remove
  5. Battery Positive Junction Block Cable (4) - Remove
  6. GM5335354Courtesy of GENERAL MOTORS COMPANY

    Reposition the battery hold down retainer (2). Battery Replacement

  7. GM5146406Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

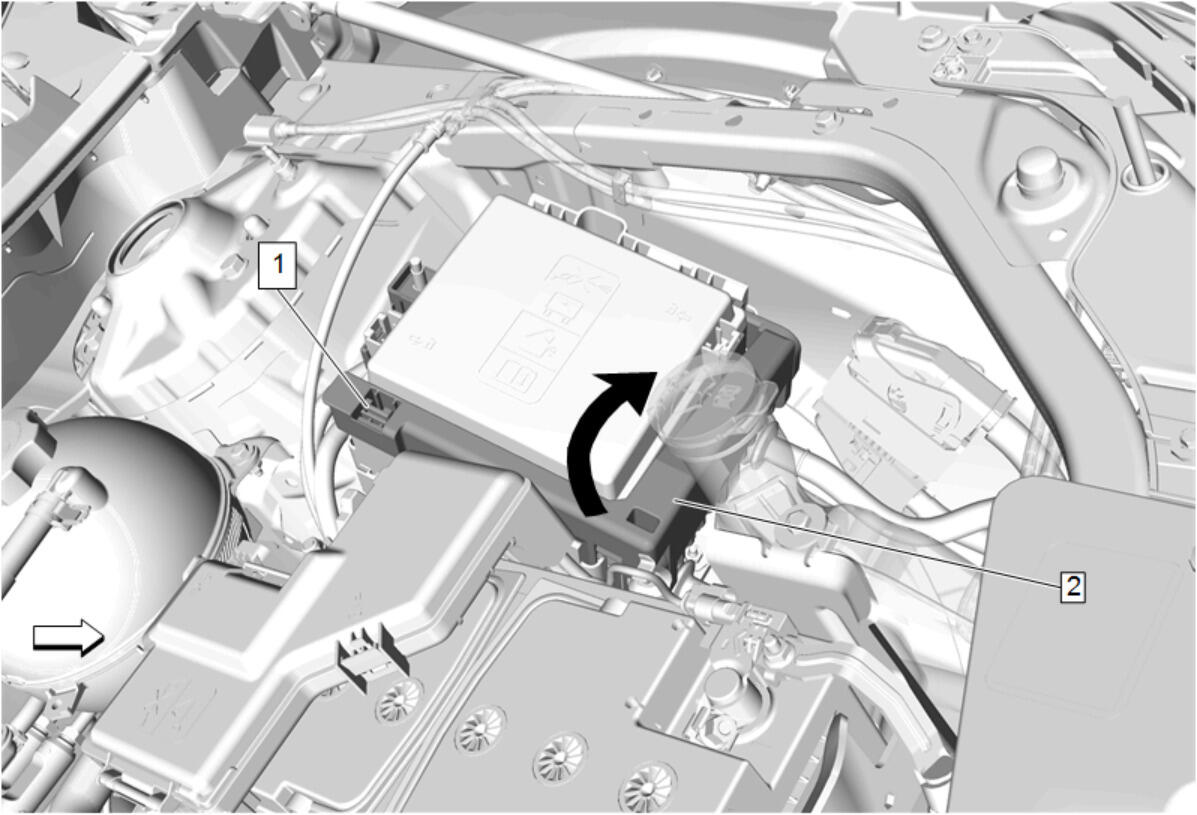

  8. GM5146421Courtesy of GENERAL MOTORS COMPANY

    Release the lever lock (1) and rotate handle (2) upwards.

  9. GM5146441Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Junction Block (1) - Remove
