Rearview Driver Information Camera Replacement (Terrain)

WARNING: This page is about a different car, the 2018 GMC Terrain and 2018 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

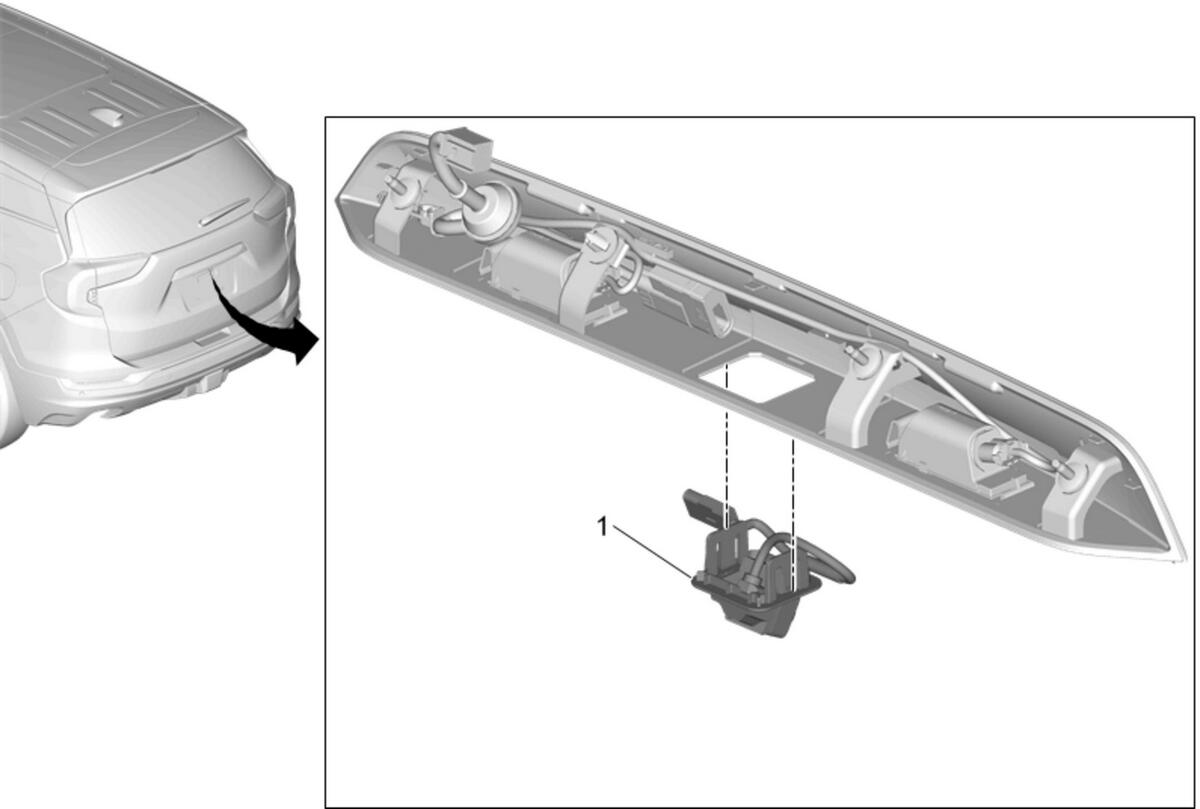

Fig 1: Rearview Driver Camera (Terrain)
GM4709108Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Closure Center Applique Replacement
1 Rearview Driver Information Camera

Procedure

  1. Release the retaining tabs.
  2. Disconnect the electrical connector.
