Low Frequency Rear Compartment Antenna Bracket Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

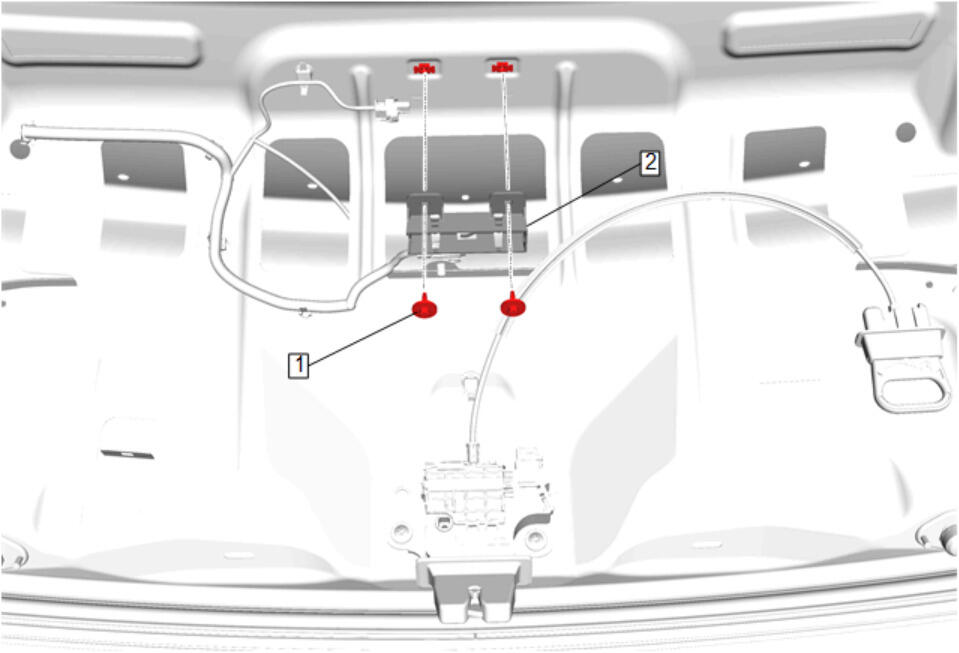

GM5331292Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Low Frequency Rear Compartment Antenna Replacement
1 Low Frequency Rear Compartment Antenna Bracket Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Low Frequency Rear Compartment Antenna Bracket
