Short Range Radar Rear Sensor Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

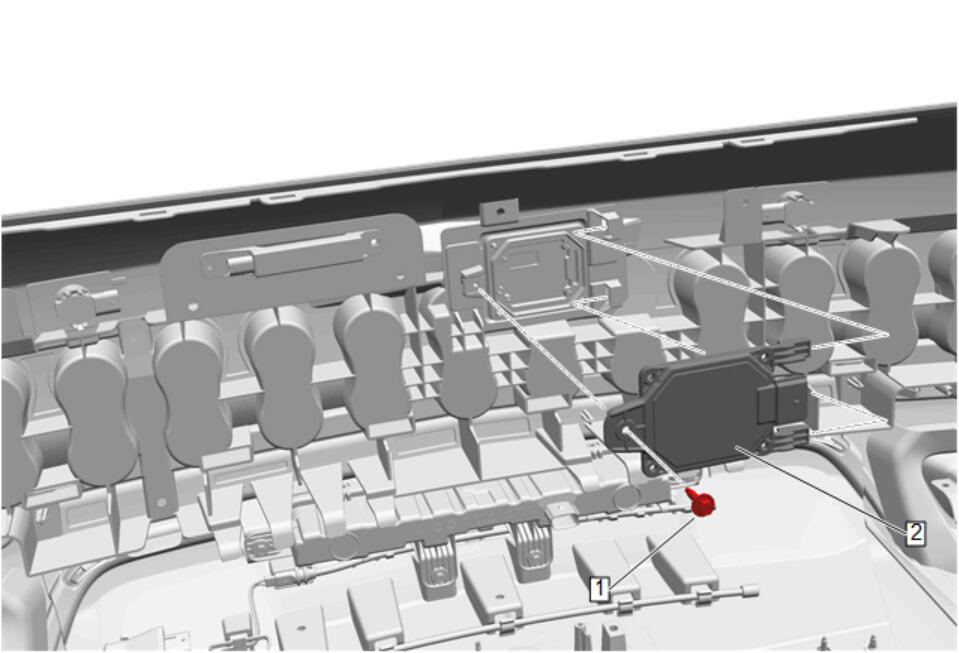

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)
1	Short Range Radar Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5N.m (22 lb in)
2	Short Range Radar Rear Sensor Procedure Disconnect the electrical connector. Slide the short range radar rear sensor to the left and remove. Perform the necessary programming and setup procedure:Control Module References .

Callout

Component Name

Preliminary Procedure
Rear Bumper Fascia Removal and Installation (without Blackwing) , or Rear Bumper Fascia Removal and Installation (with Blackwing)

Short Range Radar Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5N.m (22 lb in)

Short Range Radar Rear Sensor

Procedure

Disconnect the electrical connector.
Slide the short range radar rear sensor to the left and remove.
Perform the necessary programming and setup procedure:Control Module References .
