Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

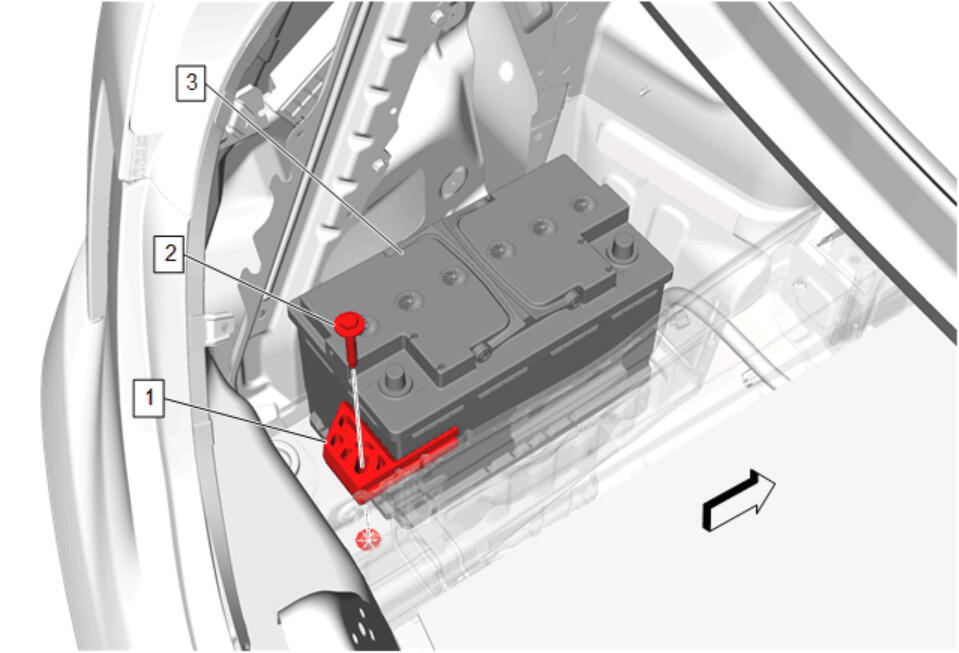

Battery (3) - Install
- Battery Hold Down Retainer (1) - Install
- Battery Hold Down Bolt (2) - Install and Tighten 22 N.m (16 lb ft)

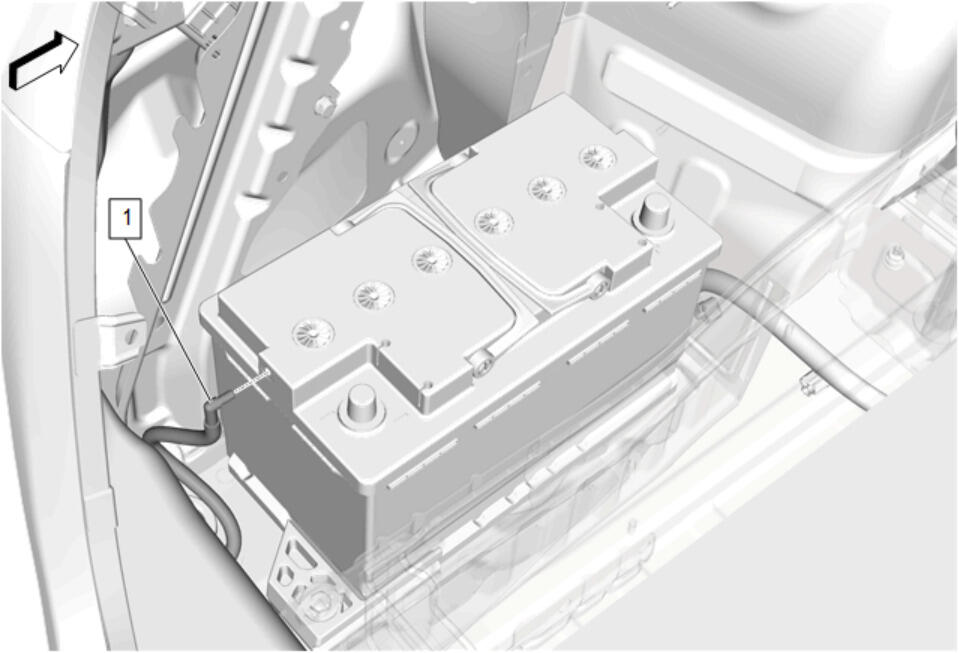

Battery Vent Hose (1) - Install

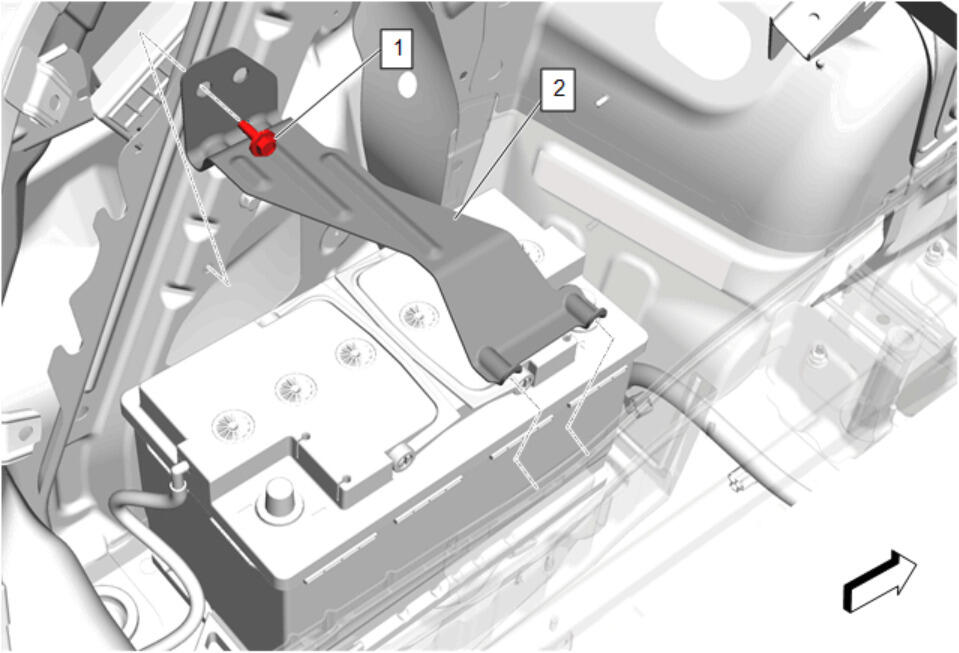

Battery Hold Down Retainer (2) - Install
- Battery Hold Down Strap Bolt (1) - Install and Tighten 9 N.m (80 lb in)
Battery Distribution Fuse Block (2) - Install - Battery Distribution Fuse Block Replacement
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution
