Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

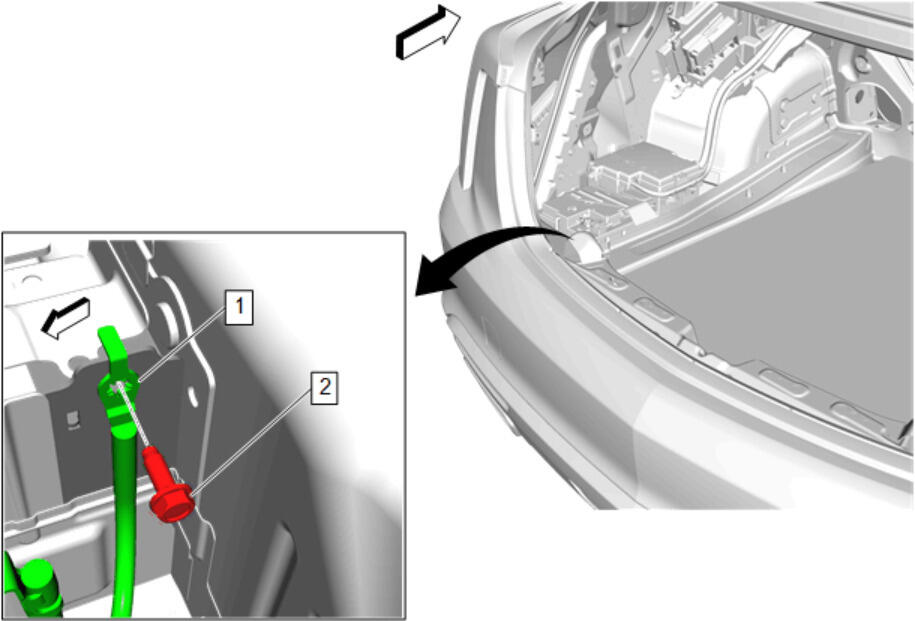

  1. GM5310582Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (1) - Install

    2. CAUTION:

    Refer to Fastener Caution

  2. Battery Negative Cable Bolt (2) @Rear Bumper Impact Bar Bracket - Install and Tighten 22 N.m (16 lb ft)

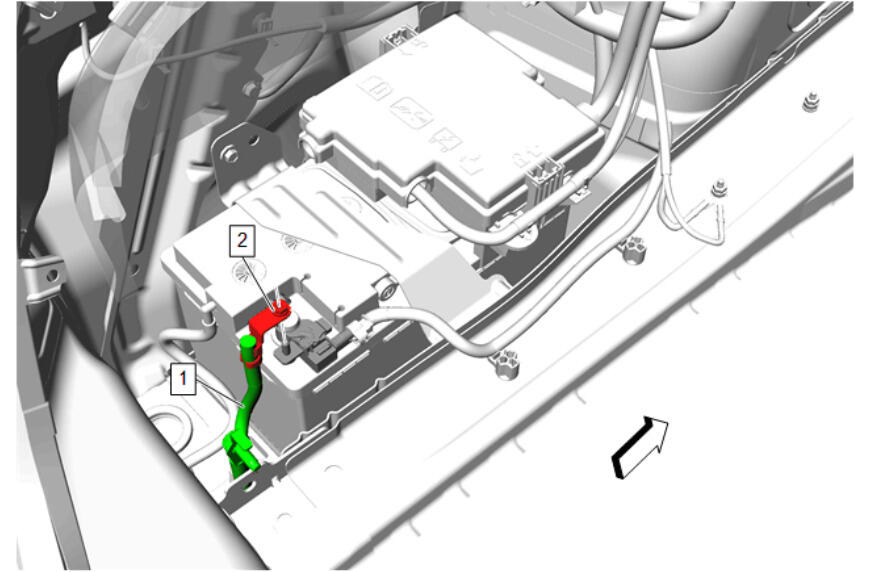

  3. GM5423970Courtesy of GENERAL MOTORS COMPANY

    Battery Negative Cable (1) - Install

  4. Battery Negative Cable Nut (2) @Battery Monitor Module - Install and Tighten 9 N.m (80 lb in)
  5. Install the rear compartment side trim panel. Rear Compartment Side Trim Replacement - Left Side
