Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

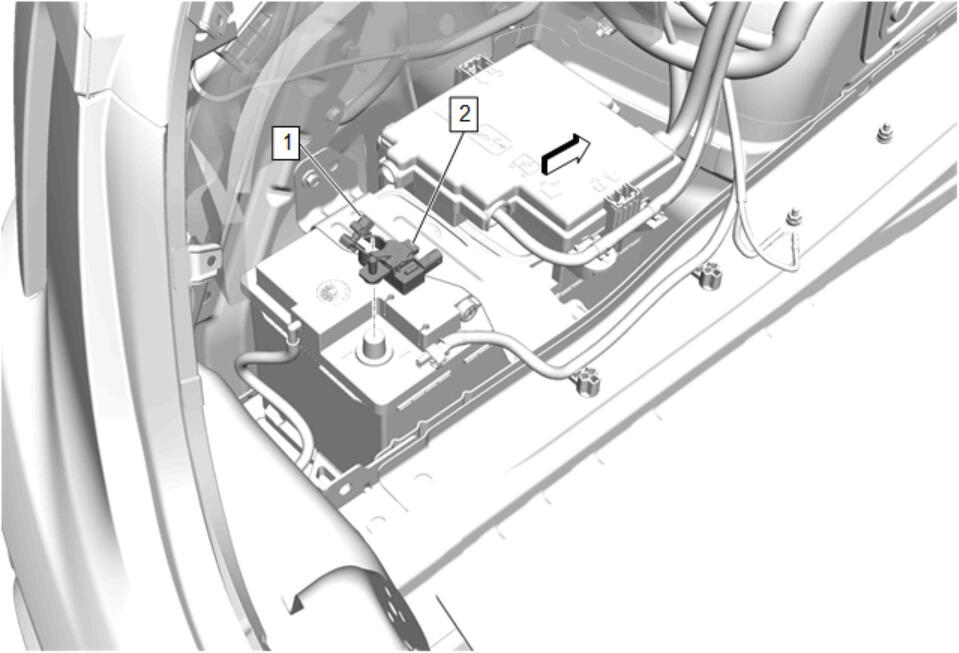

Battery Monitor Module (2) - Install
- Battery Post Negative Cable Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)

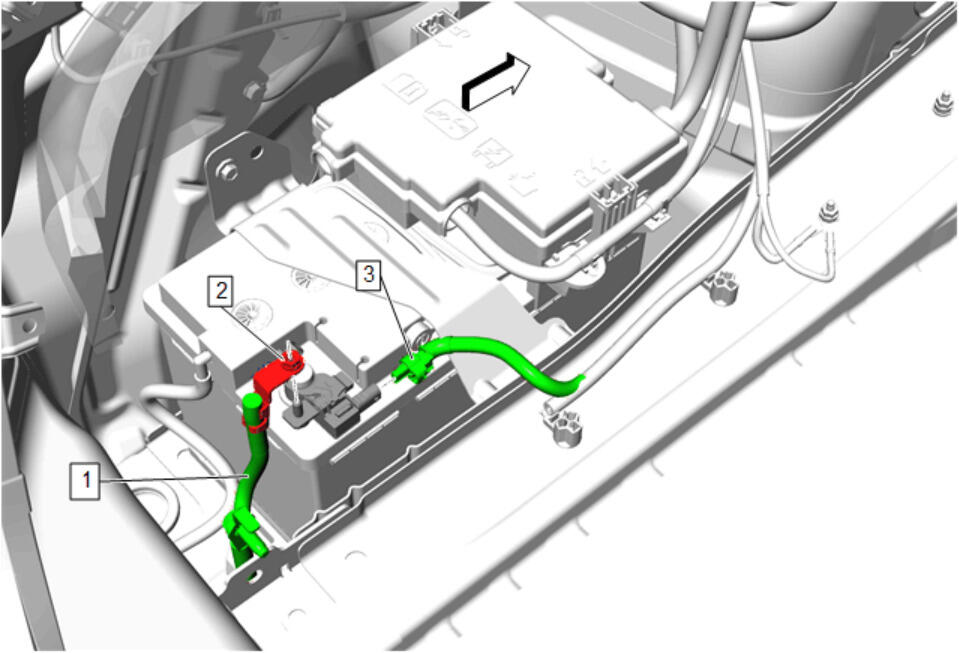

Battery Negative Cable (1) - Install
- Battery Negative Cable Nut (2) @Battery Monitor Module - Install and Tighten 9 N.m (80 lb in)
- Electrical Connector (3) - Connect

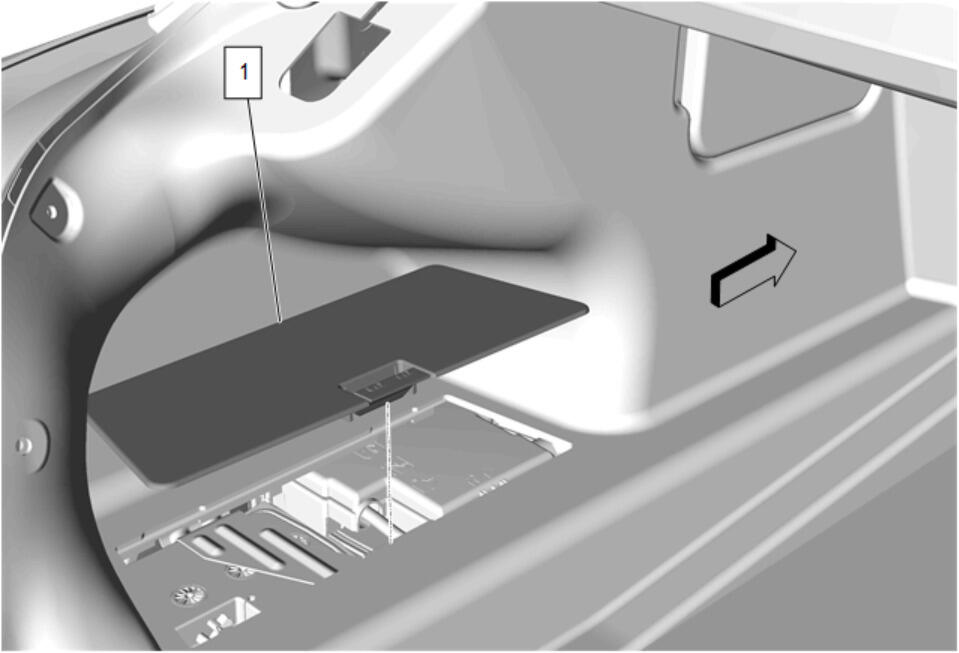

Battery Access Cover (1) - Install
CAUTION:
Refer to Fastener Caution
