Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

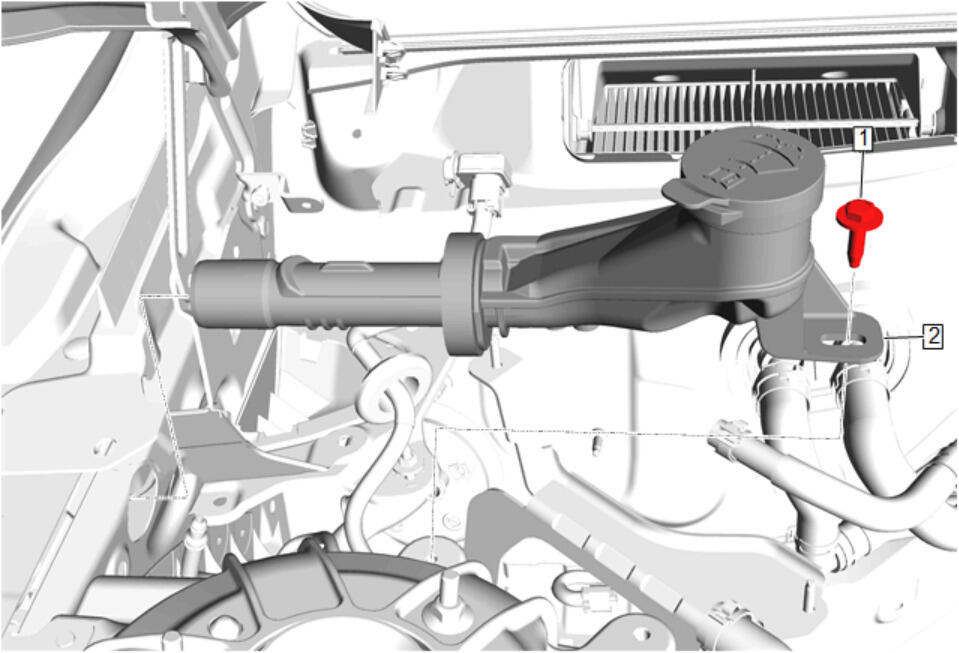

Windshield Washer Solvent Container (1) - Install
- CAUTION:
Refer to Fastener Caution .
Windshield Washer Solvent Container Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
- Windshield Washer Pump Hose - Connect - Windshield Washer Pump Hose Replacement
- Connect and position the wiring harness.
Windshield Washer Solvent Container Filler Tube (2) - Install - Windshield Washer Solvent Container Filler Tube Replacement
- Remove the drain pan.
- Fill and inspect the windshield washer solvent container for leaks and check the washer system for proper operation.

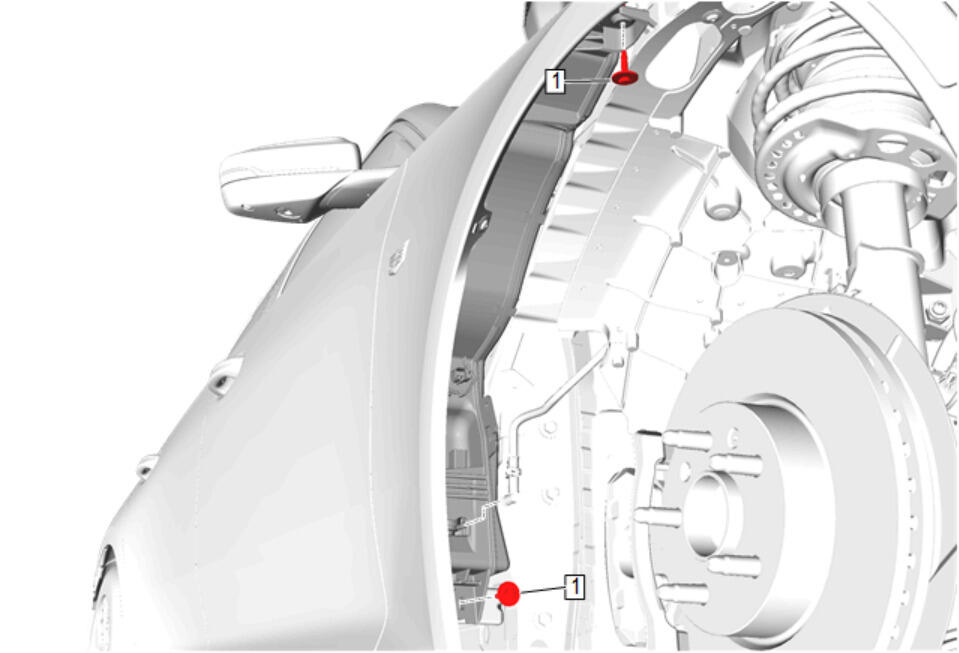

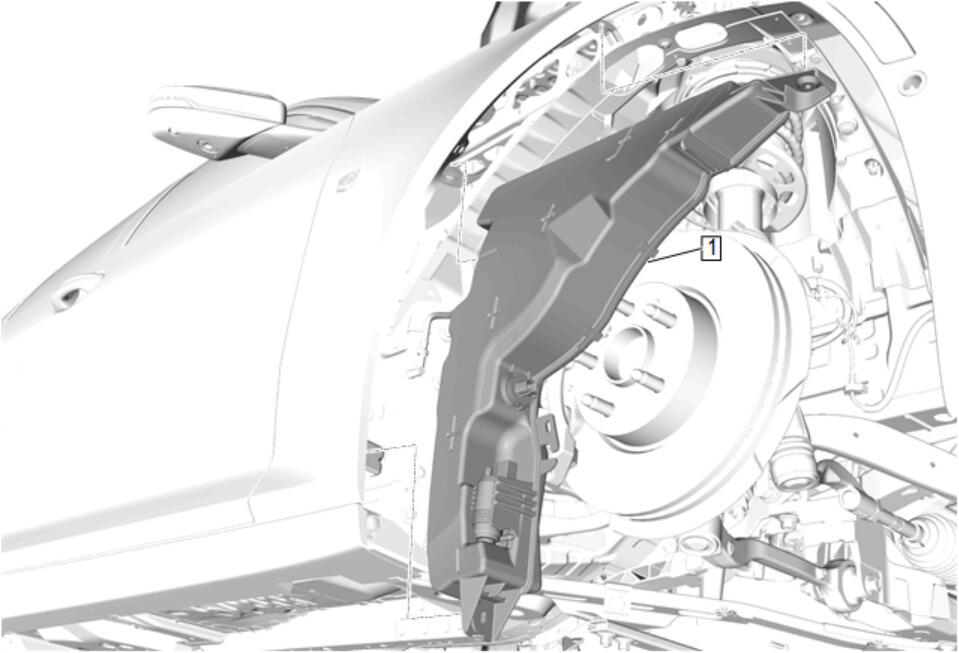

- Install the right side front wheelhouse liner. Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)
