Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

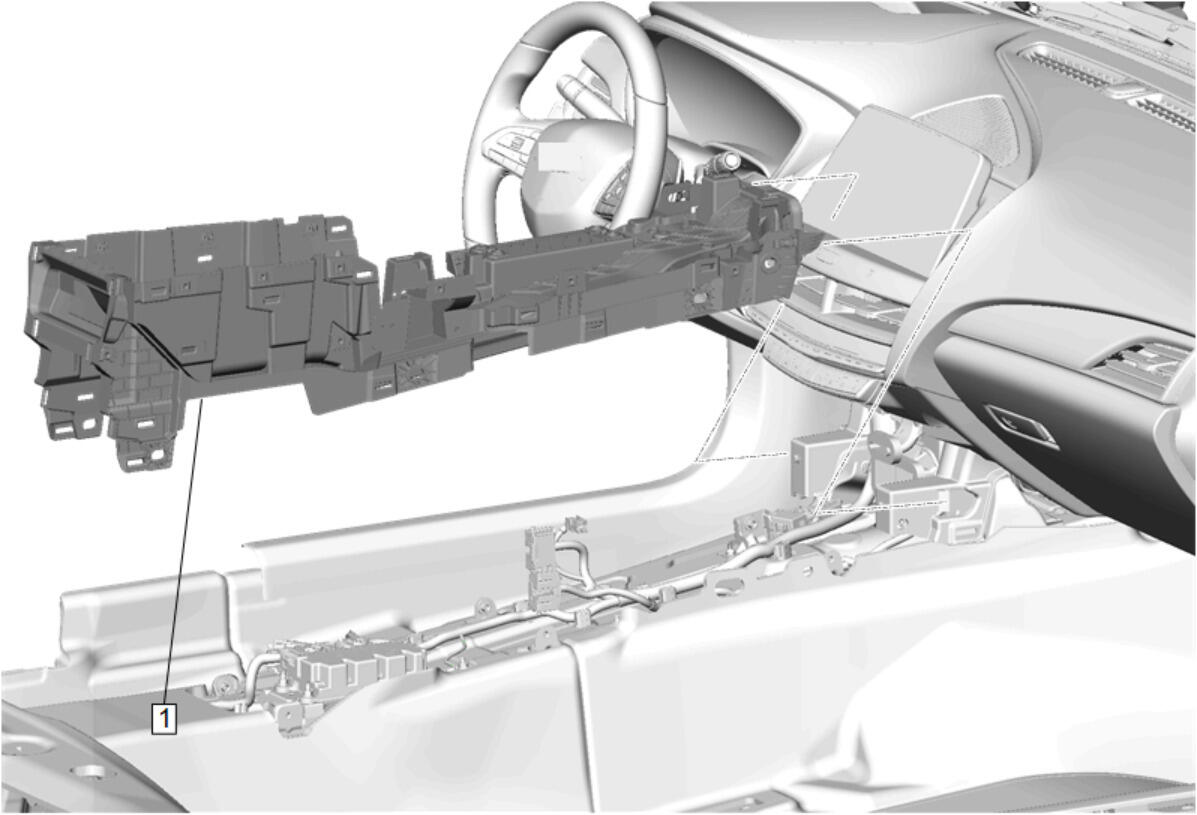

With the aid of an assistant, install the front floor console retainer (1).
Courtesy of GENERAL MOTORS COMPANY

Connect the instrument panel wiring harness to the retainer.

CAUTION:

Refer to Fastener Caution .

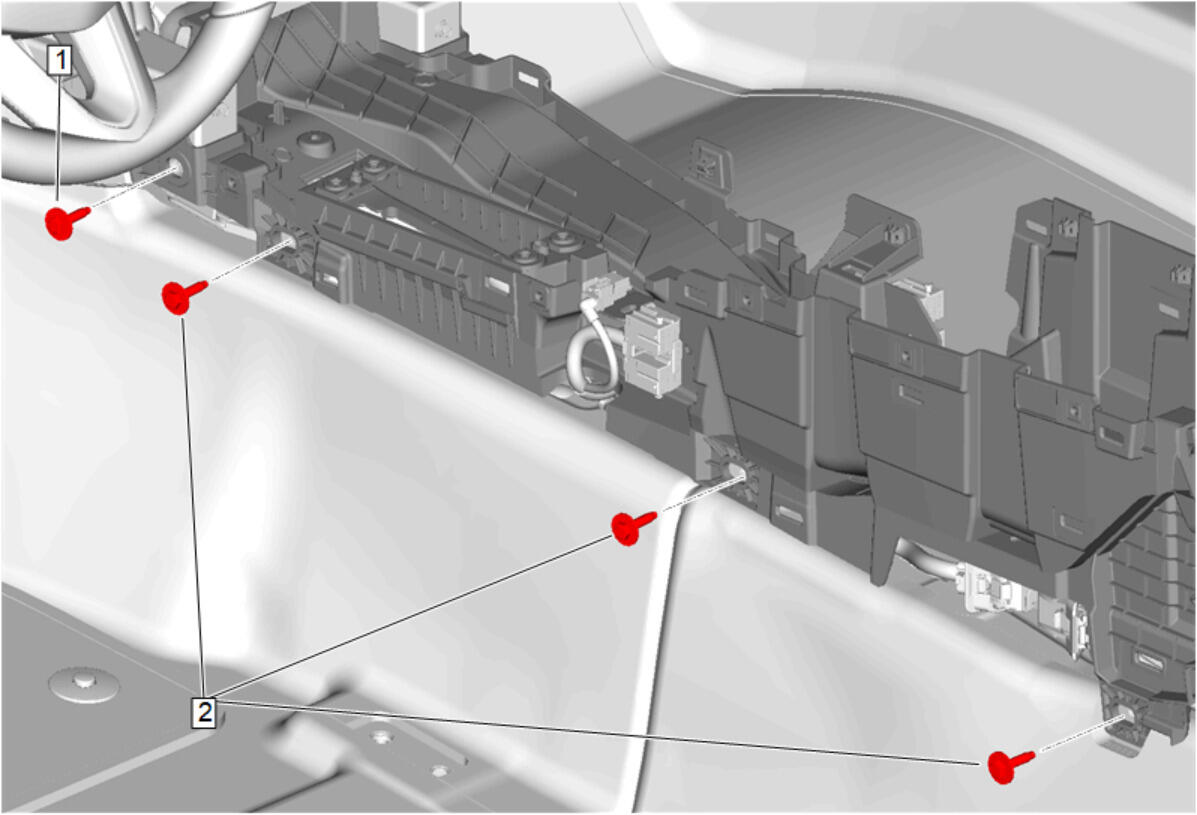

Front Floor Console Bracket Bolt (1) - Install and tighten to 7 N.m (62 lb in)
Front Floor Console Bolt (2) - Install and tighten [3x] 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

Connect the instrument panel wiring harness to the retainer.

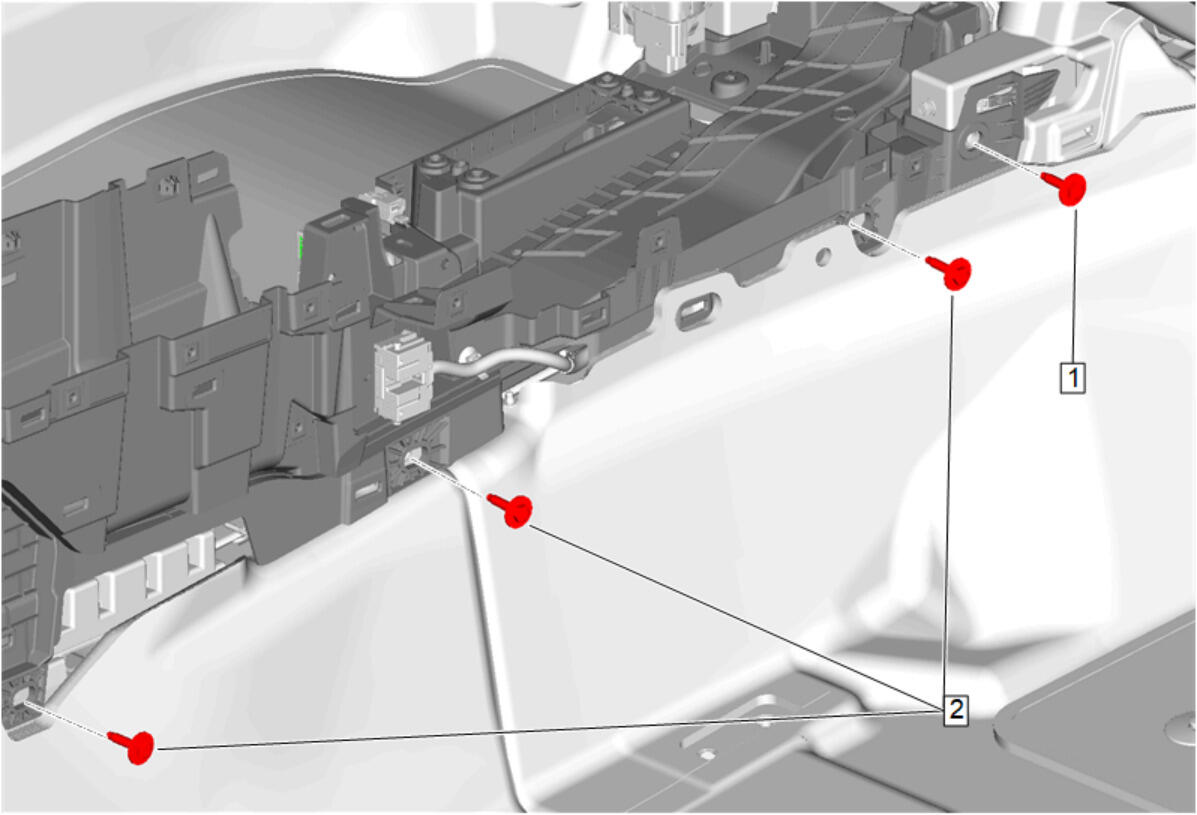

Front Floor Console Bracket Bolt (1) - Install and tighten to 7 N.m (62 lb in)
Front Floor Console Bolt (2) - Install and tighten [3x] 7 N.m (62 lb in)
Courtesy of GENERAL MOTORS COMPANY

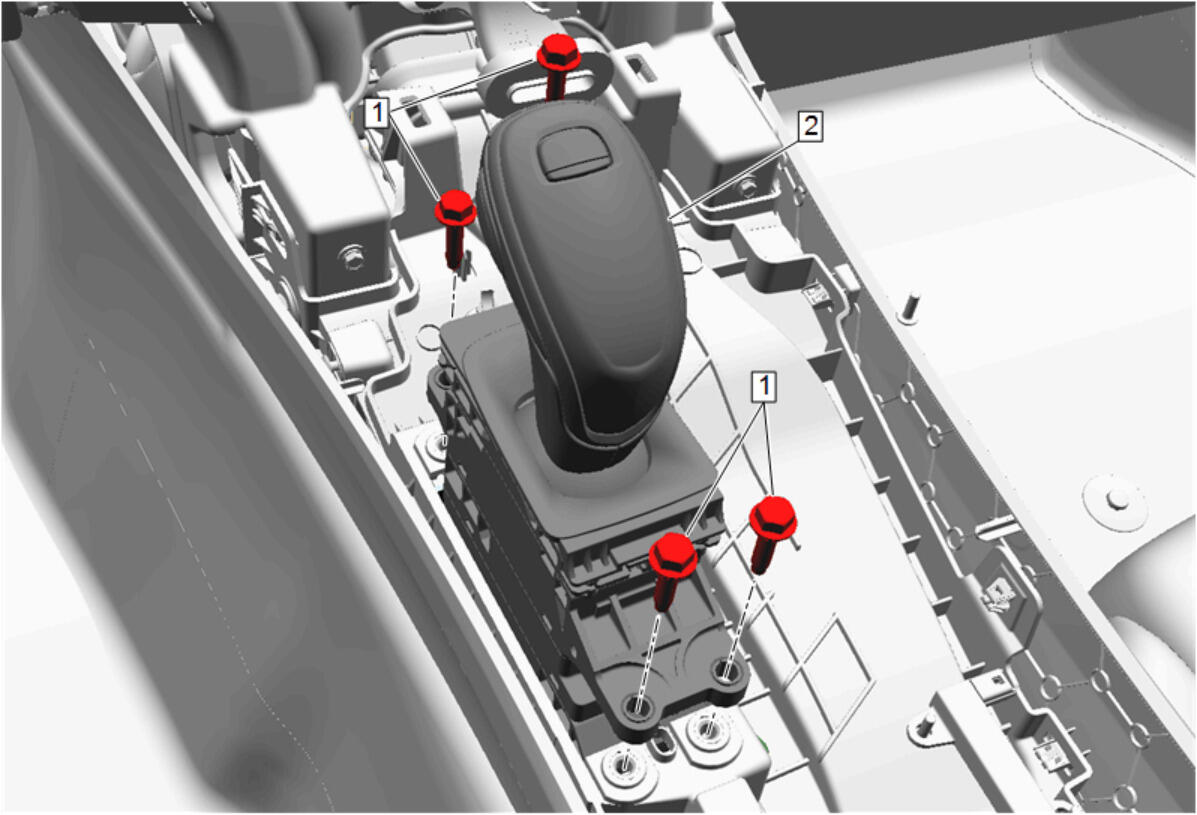

Automatic Transmission Control (2) - Install - Automatic Transmission Control Replacement
Courtesy of GENERAL MOTORS COMPANY

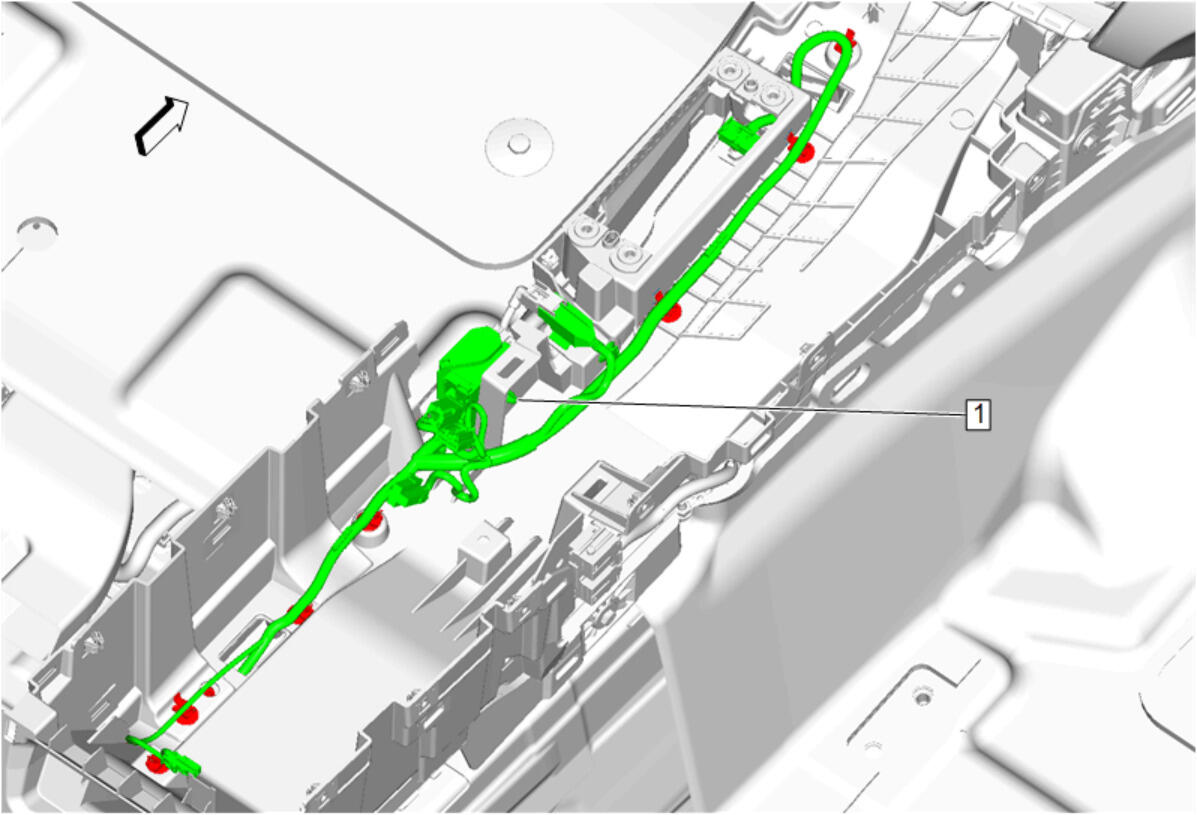

Front Floor Console Wiring Harness (1) - Install - Front Floor Console Wiring Harness Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (2) - Install - Front Floor Console Trim Plate Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Armrest (2) - Install - Front Floor Console Armrest Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Rear Trim Panel (2) - Install - Front Floor Console Rear Trim Panel Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Left Side (1) - Install - Front Floor Console Extension Panel Replacement - Left Side
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Extension Panel - Right Side (1) - Install - Front Floor Console Extension Panel Replacement - Right Side
