Rear License Plate Lamp Module Replacement (With UV2)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Closure Center Applique Replacement

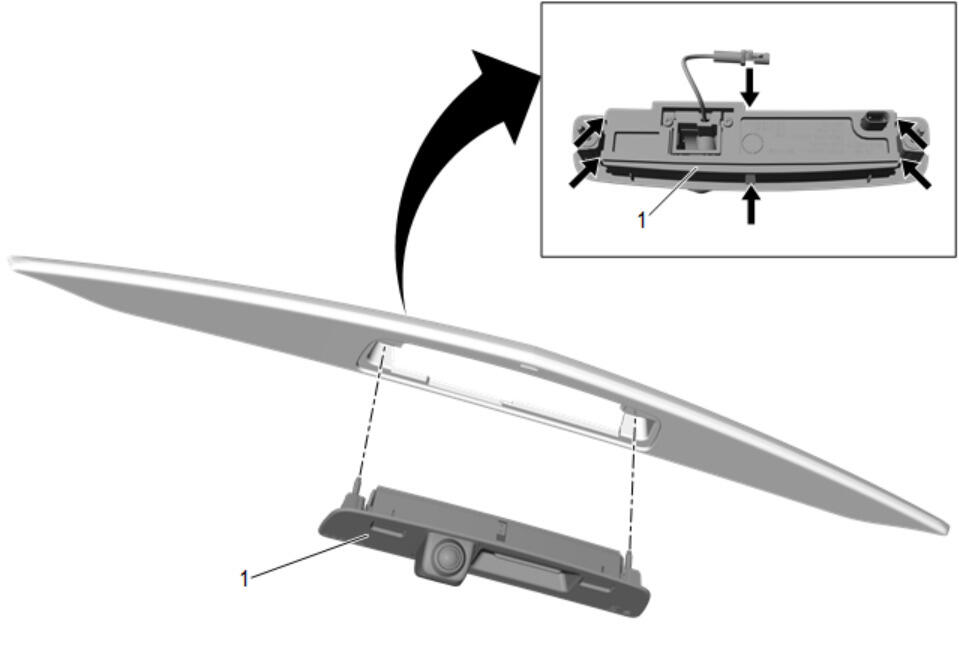

1	Rear License Plate Lamp Module Procedure Release the retaining tabs. Transfer components as necessary. Perform the camera calibration procedure. Video Processing Control Module Calibration

Callout

Component Name

Preliminary Procedure
Rear Closure Center Applique Replacement

Rear License Plate Lamp Module

Procedure

Release the retaining tabs.
Transfer components as necessary.
Perform the camera calibration procedure. Video Processing Control Module Calibration
