Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Apply the parking brake.
Place the transmission control in the Neutral position.

NOTE:

The transmission control lever boot and knob are replaced as an assembly.

Courtesy of GENERAL MOTORS COMPANY

Using a flat bladed trim tool, detach the manual transmission control lever boot (2) from the console.
Lift the manual transmission control lever boot (1) to access the manual transmission control lever knob bolt (3).
Remove the manual transmission control lever knob bolt (3), then lift off the manual transmission control lever boot and knob assembly (1, 2).
Courtesy of GENERAL MOTORS COMPANY

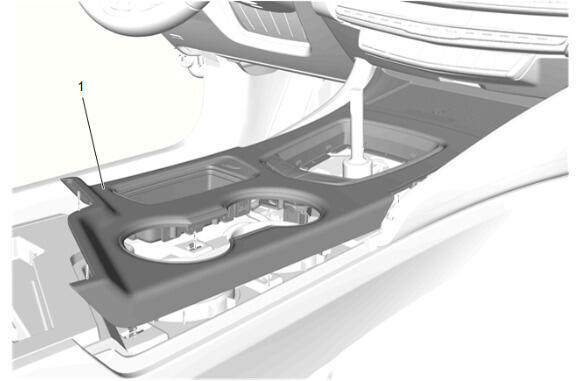

Using a flat-bladed plastic trim tool, release the retaining clips.
Reposition the front floor console trim plate (1) to access the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

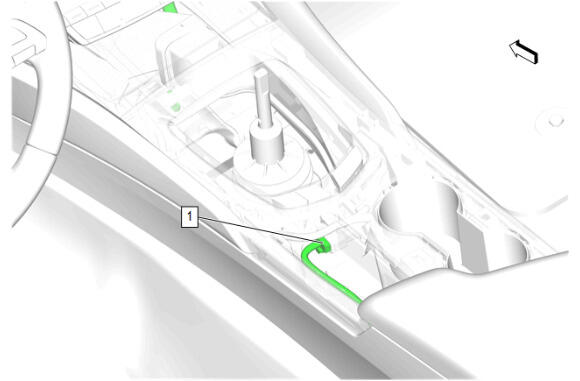

Disconnect the instrument panel harness connector (1) from the front floor console wiring harness extension harness.
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Trim Plate (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connector.
Wireless Charging System Module Bolt (1) - Remove [2x]
Wireless Charging System Module (2) - Remove
