Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

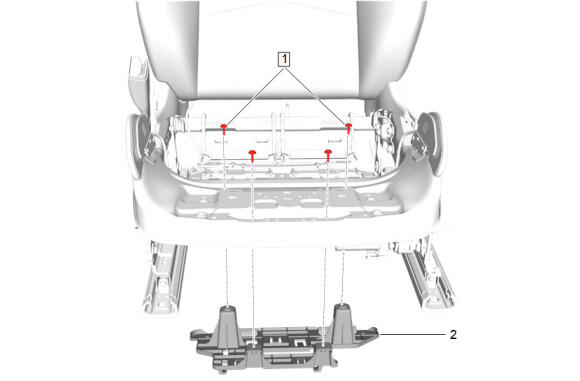

Front Seat Adjuster Memory Module Bracket (2) - Install
Position the wiring harness.

CAUTION:

Refer to Fastener Caution .

Front Seat Adjuster Memory Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

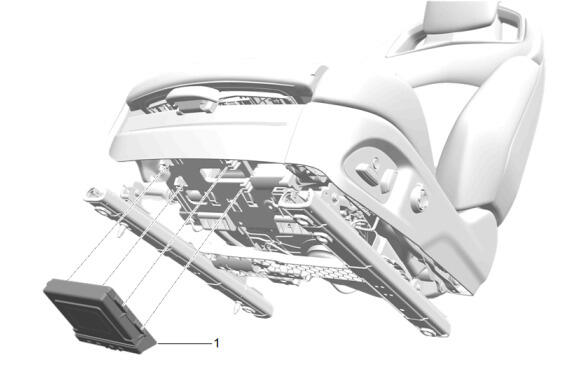

Driver or Passenger Seat Adjuster Memory Module (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

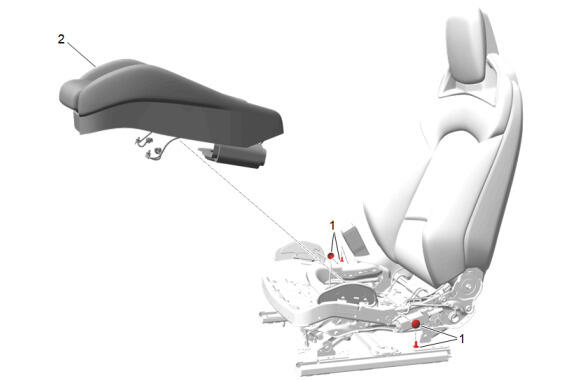

Front Seat Cushion Cover and Pad (2) - Install - Front Seat Cushion Cover and Pad Removal and Installation (Blackwing)
