Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

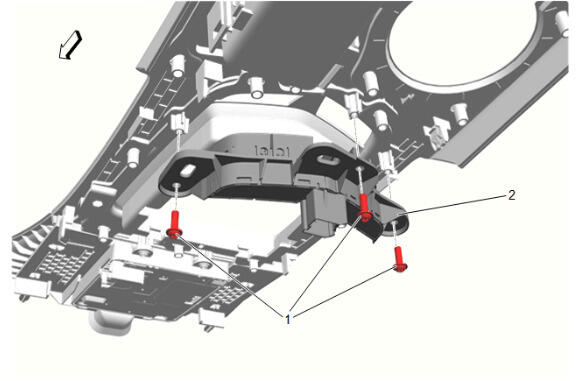

Vehicle Stability Control System Switch (2) - Install
- Auxiliary Multifunction Switch Bolt (1) - Install and tighten [3x] - Fastener Specifications
- Connect the electrical connector.
Connect the electrical connector.
- Front Floor Console Trim Plate (1) - Install
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
- Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
- Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
- Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
- Ensure there are no gaps in the thread locking adhesive once applied to the component.
- Position the transmission control lever boot and knob assembly (1, 2) on the manual transmission control lever.
- Manual Transmission Control Lever Knob Bolt (3) - Install and tighten - Fastener Specifications .
- Install the manual transmission control lever boot (2) to the console.
CAUTION:
Refer to Fastener Caution .
