Section 211 (Driver Assistance Systems)
>>
Schematic Wiring Diagrams
>>
Driver Assistance Systems Wiring Schematics
>>

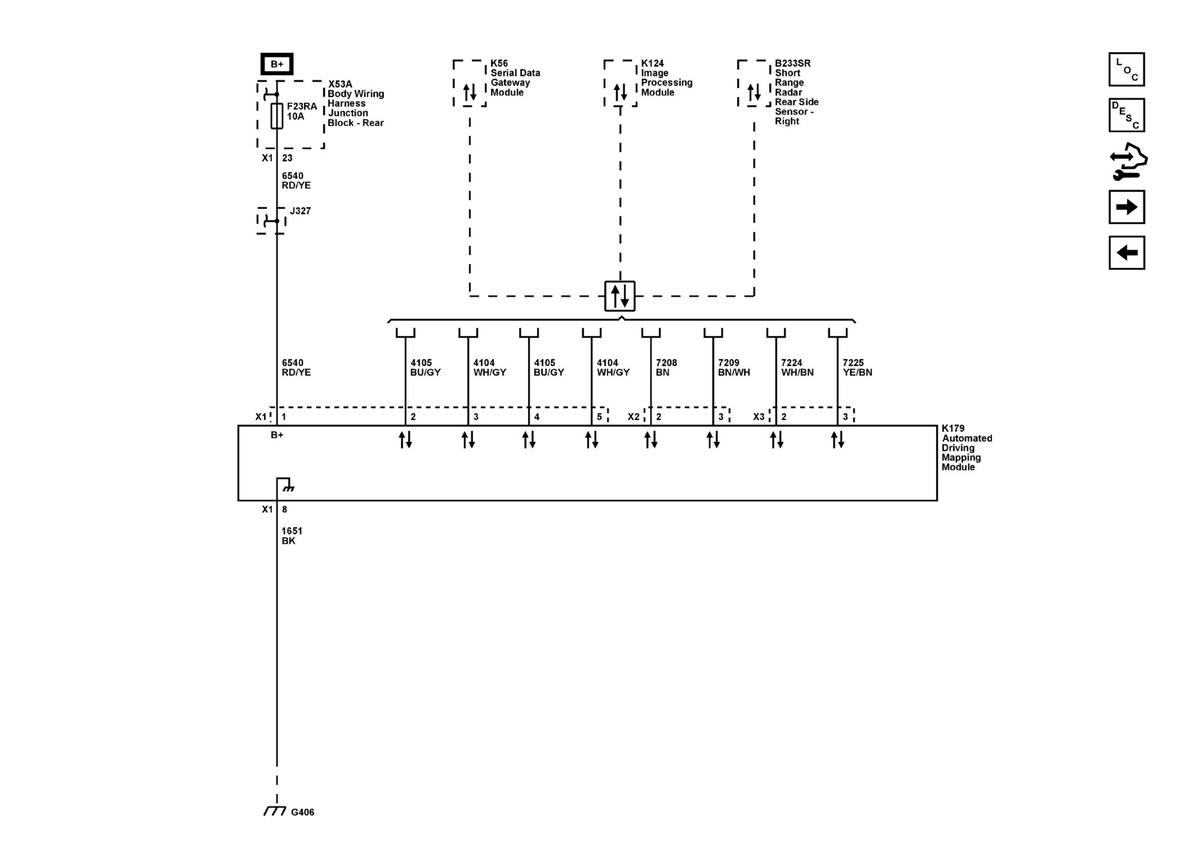

Lane Centering Control - Module Power, Ground, Serial Data (UKL)
Lane Centering Control - Module Power, Ground, Serial Data (UKL)
WARNING:
This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
