Installation Procedure

WARNING: This page is about a different car, the 2021 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Water Outlet Seal (2) - Install NEW
Engine Coolant Flow Control Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Flow Control Valve Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (2) @ Engine Coolant Temperature Sensor - Connect
Electrical Connector (1) @ Engine Coolant Flow Control Valve - Connect [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Oil Cooler Coolant Inlet Hose (4) @ Engine Coolant Flow Control Valve - Install
Engine Coolant Air Bleed Hose (3) @ Engine Coolant Flow Control Valve - Install
Engine Coolant Air Bleed Hose (2) @ Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage [3x] - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (3) @ Engine Coolant Flow Control Valve - Install
Thermostat Bypass Hose (2) @ Engine Coolant Flow Control Valve - Install
Hose Clamp (1) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Gasket (2) - Install NEW
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Check that the 2 pins (4) of the intake manifold are seated correctly in the cylinder head.

Intake Manifold (1) - Install

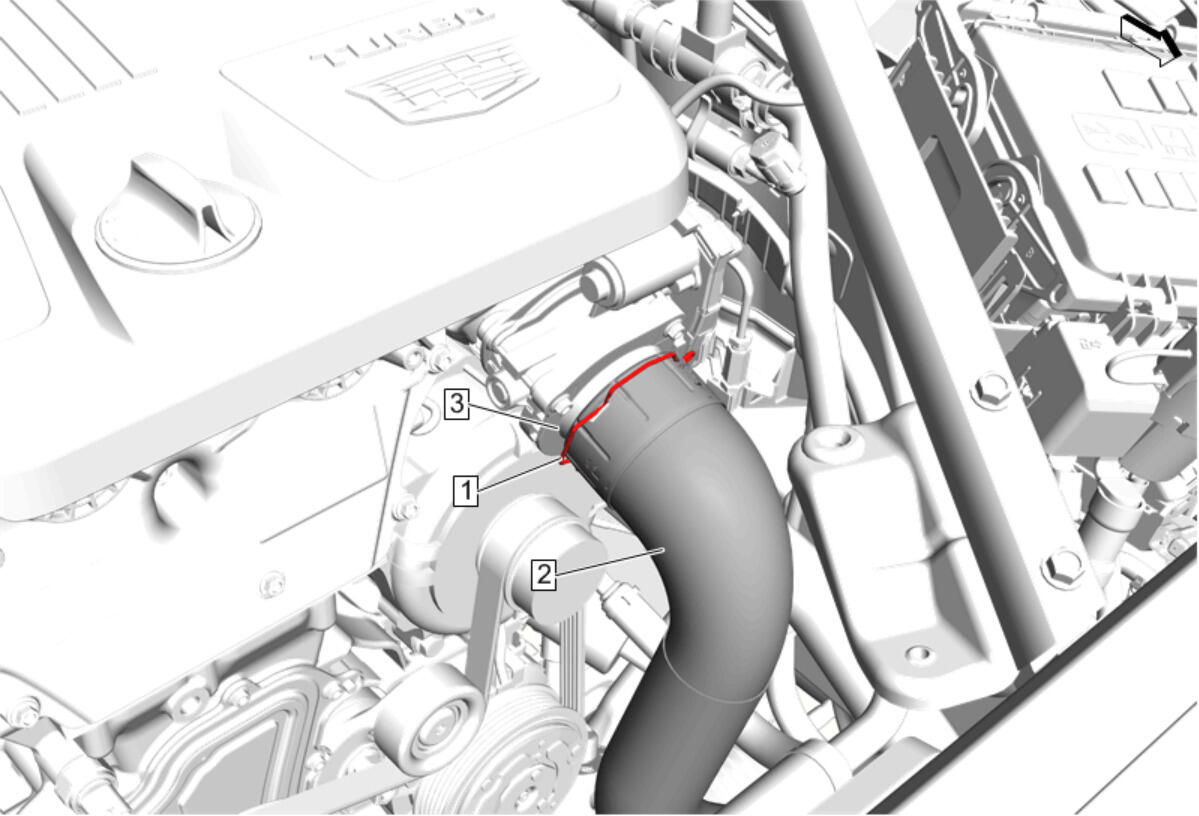

Charge Air Cooler Outlet Air Tube @ Intake Manifold - Install
Connect throttle body electrical connector (1)
Courtesy of GENERAL MOTORS COMPANY

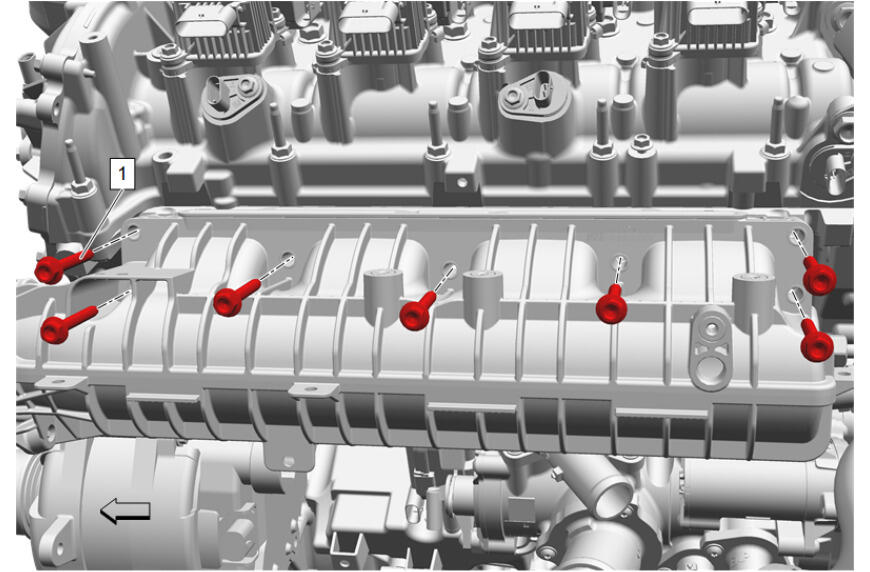

Intake Manifold Bolt (1) - Tighten in sequence [7x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Intake Air Pressure and Temperature Sensor - Connect
Courtesy of GENERAL MOTORS COMPANY

Retainer Spring (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Pipe Bracket - Install [2x]
Radiator Surge Tank Outlet Hose Clip Bracket Nut - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Reposition the wiring harness (3) and connect as necessary.
Retainer (1) @ Intake Manifold (2) - Install [5x]
Courtesy of GENERAL MOTORS COMPANY

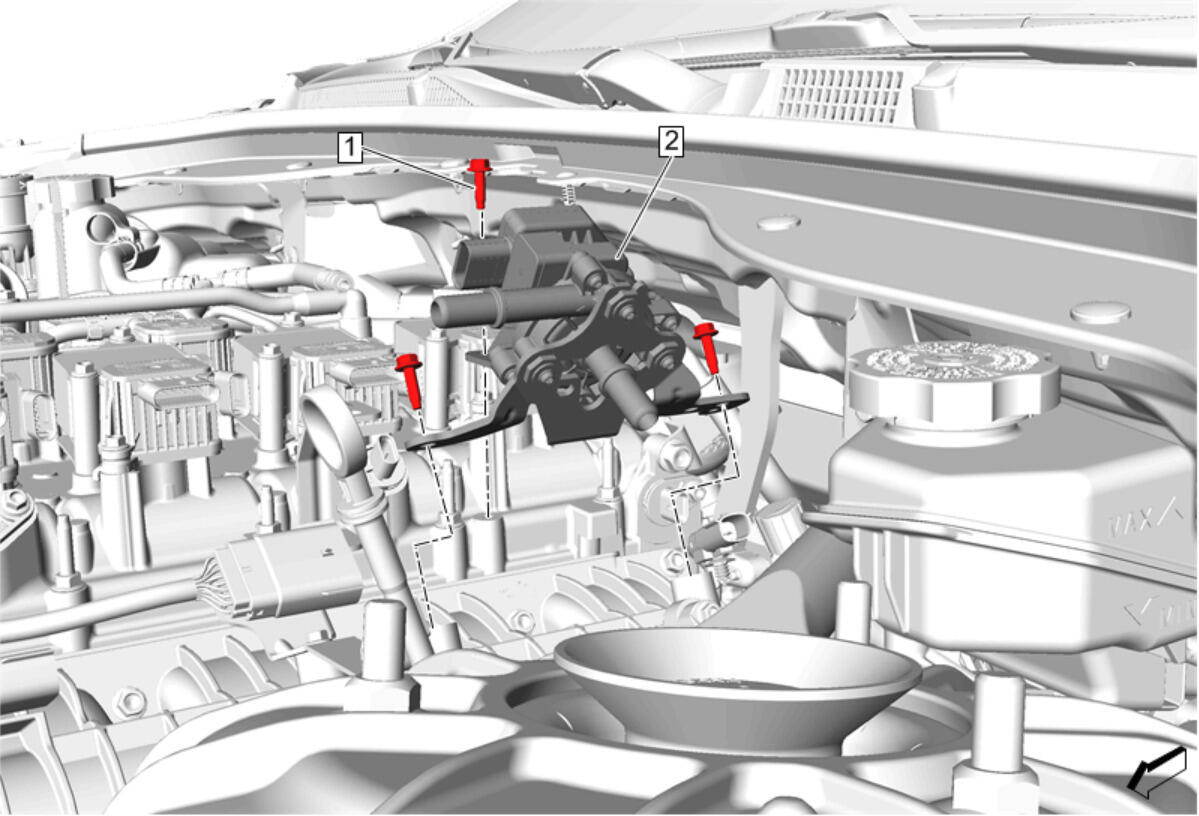

Evaporative Emission Canister Purge Pump (2) - Install
Evaporative Emission Canister Purge Pump Bolt (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

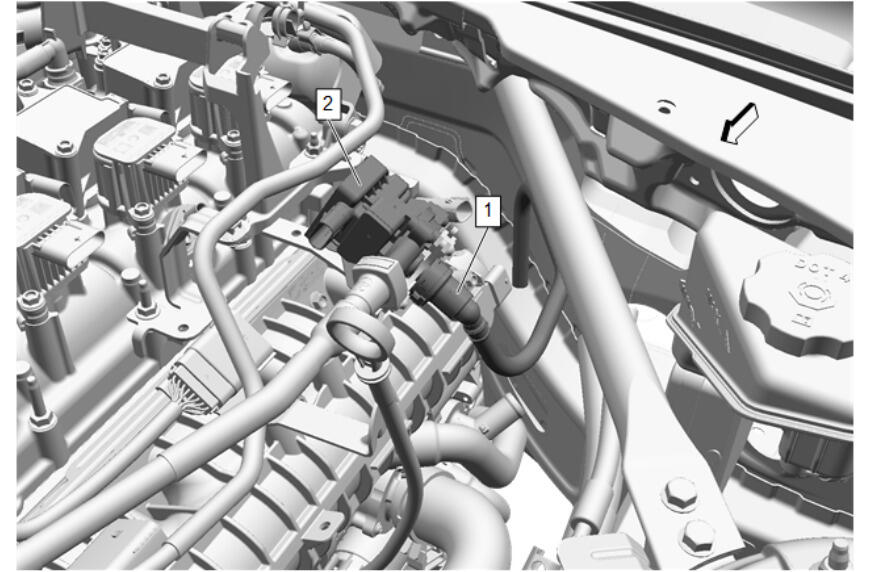

Evaporative Emission Pipe (1) @ Evaporative Emission Canister Purge Pump (2) - Connect - Plastic Collar Quick Connect Fitting Service
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

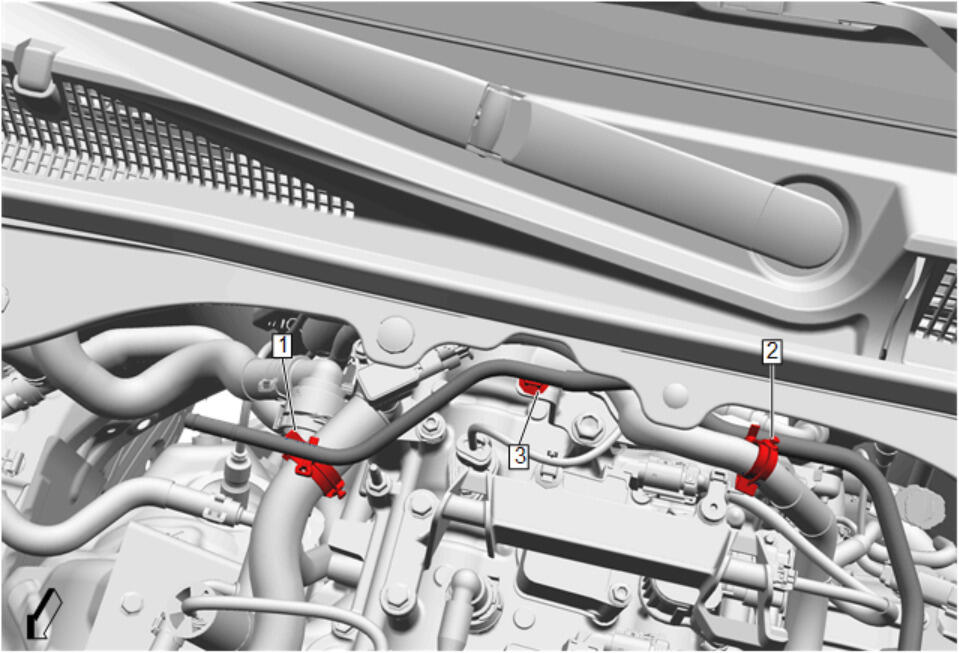

Radiator Surge Tank Outlet Pipe (3) - Install
Radiator Surge Tank Inlet Hose Clip (1) @ Radiator Surge Tank Inlet Pipe Bracket - Install
Radiator Surge Tank Inlet Hose Clip (2) @ Radiator Surge Tank Inlet Pipe Bracket - Install
Courtesy of GENERAL MOTORS COMPANY

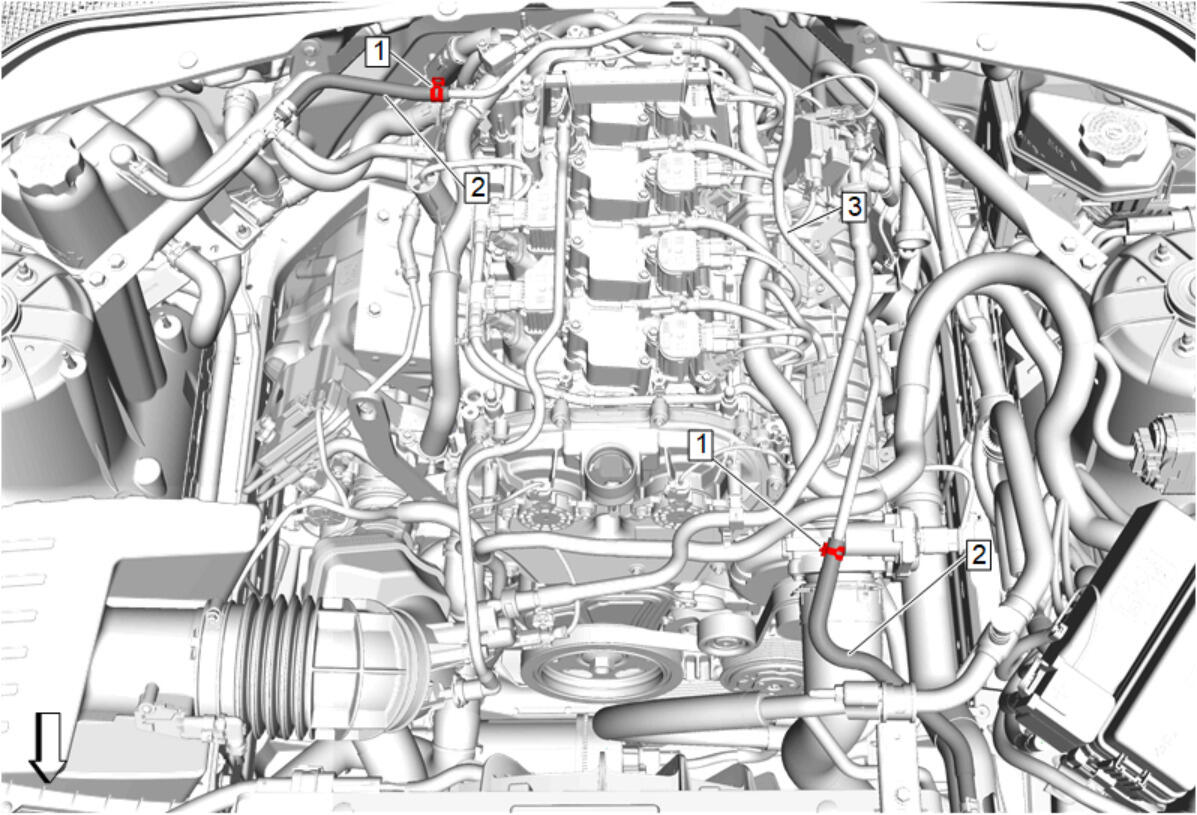

Radiator Surge Tank Inlet Hose Clip (2) @ Engine Wiring Harness - Install
Radiator Surge Tank Inlet Hose Clip (1) @ Positive Crankcase Ventilation Hose - Install
Radiator Surge Tank Inlet Hose Clip (3) @ Fuel Pump Cover - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Hose (2) @ Radiator Surge Tank Outlet Pipe (3) - Install [2x]
Radiator Surge Tank Inlet Hose Clamp (1) @ Radiator Surge Tank Outlet Pipe (3) - Engage [2x] - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

Upper Intake Manifold Bracket (2) - Install
Upper Intake Manifold Cover Nut (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Upper Intake Manifold Cover Bracket Bolt (1) @ Upper Intake Manifold Bracket (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

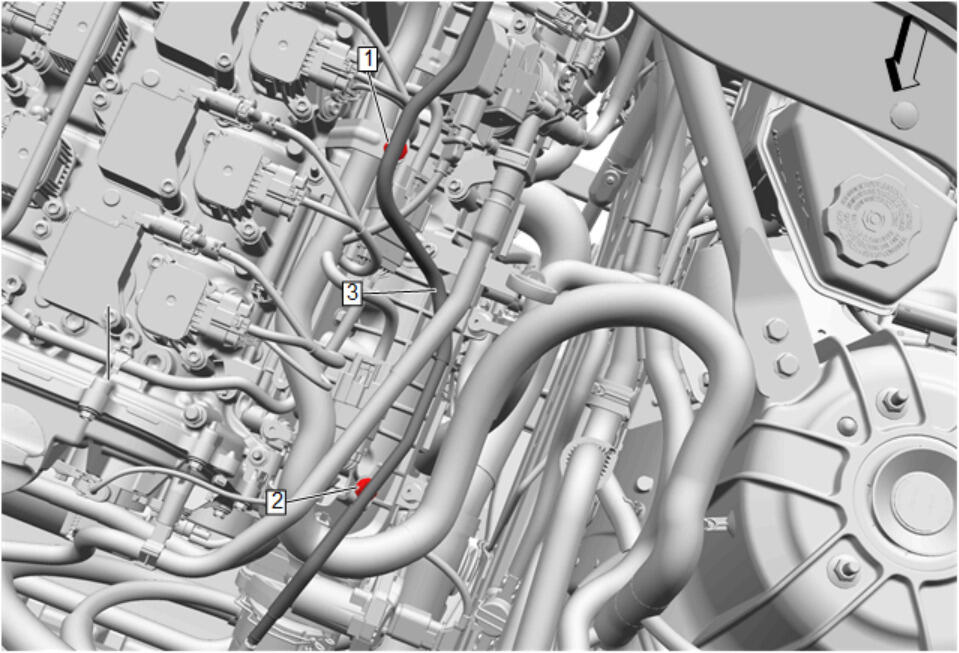

Wiring Harness (4) - Reposition
Retainer (2) @ Upper Intake Manifold Bracket (3) - Install
Electrical Connector (1) - Connect [3x]
Ensure any remaining retainers are connected securely.
Courtesy of GENERAL MOTORS COMPANY

Oil Level Indicator Tube O-Ring (2) - Install NEW
Oil Level Indicator Tube (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Oil Level Indicator Tube Bracket Bolt (1) - Install - Fastener Specifications
Electrical Connector (1) @ Oil Level Indicator (3) - Install
Courtesy of GENERAL MOTORS COMPANY

Oil Level Indicator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the engine sight shield retainers fully engage the intake manifold cover studs.

Push down on the front of the intake manifold cover (1) engaging the intake manifold cover retainers to the intake manifold cover studs.
Install the oil fill cap.
Connect the battery. Battery Negative Cable Disconnection and Connection
Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716)
Start the engine and check for leaks.
Perform the engine block coolant valve position learn. Engine Block Coolant Valve Position Learn
Perform the engine coolant control valve learn. Engine Coolant Control Valve Learn
Perform the engine coolant pump data reset. Engine Coolant Pump Data Reset
