Home >> GMC >> 2019 >> Terrain SL >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seats >> Schematic Wiring Diagrams >> Driver Seat System Wiring Schematics >> Module Power, Ground, Serial Data, And Memory Controls (A45 or A74)

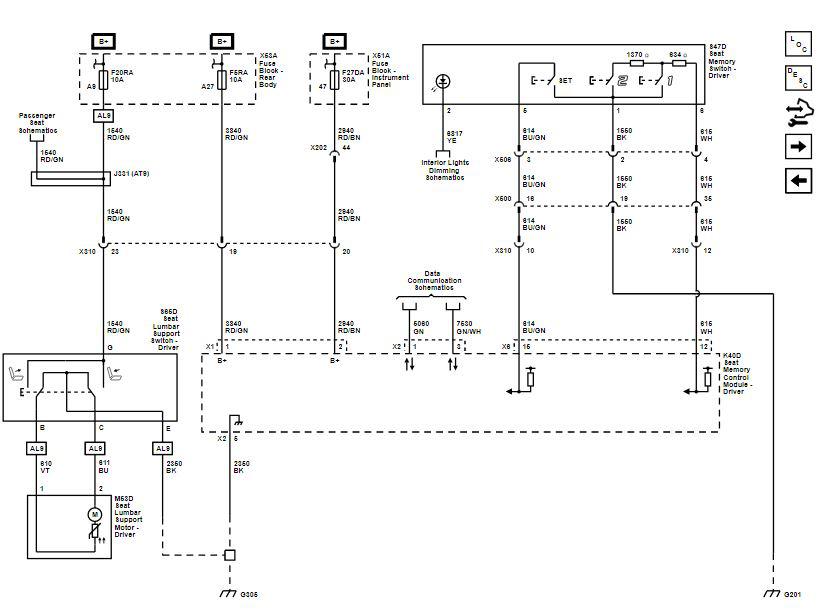

Module Power, Ground, Serial Data, And Memory Controls (A45 or A74)

GM4876646

Courtesy of GENERAL MOTORS COMPANY
