Home >> GMC >> 2019 >> Terrain SL >> Repair and Diagnosis >> Body & Frame >> Fixed And MOVEABLE Windows >> Schematic and Routing Diagrams >> Moveable Window Schematics >> Front Doors

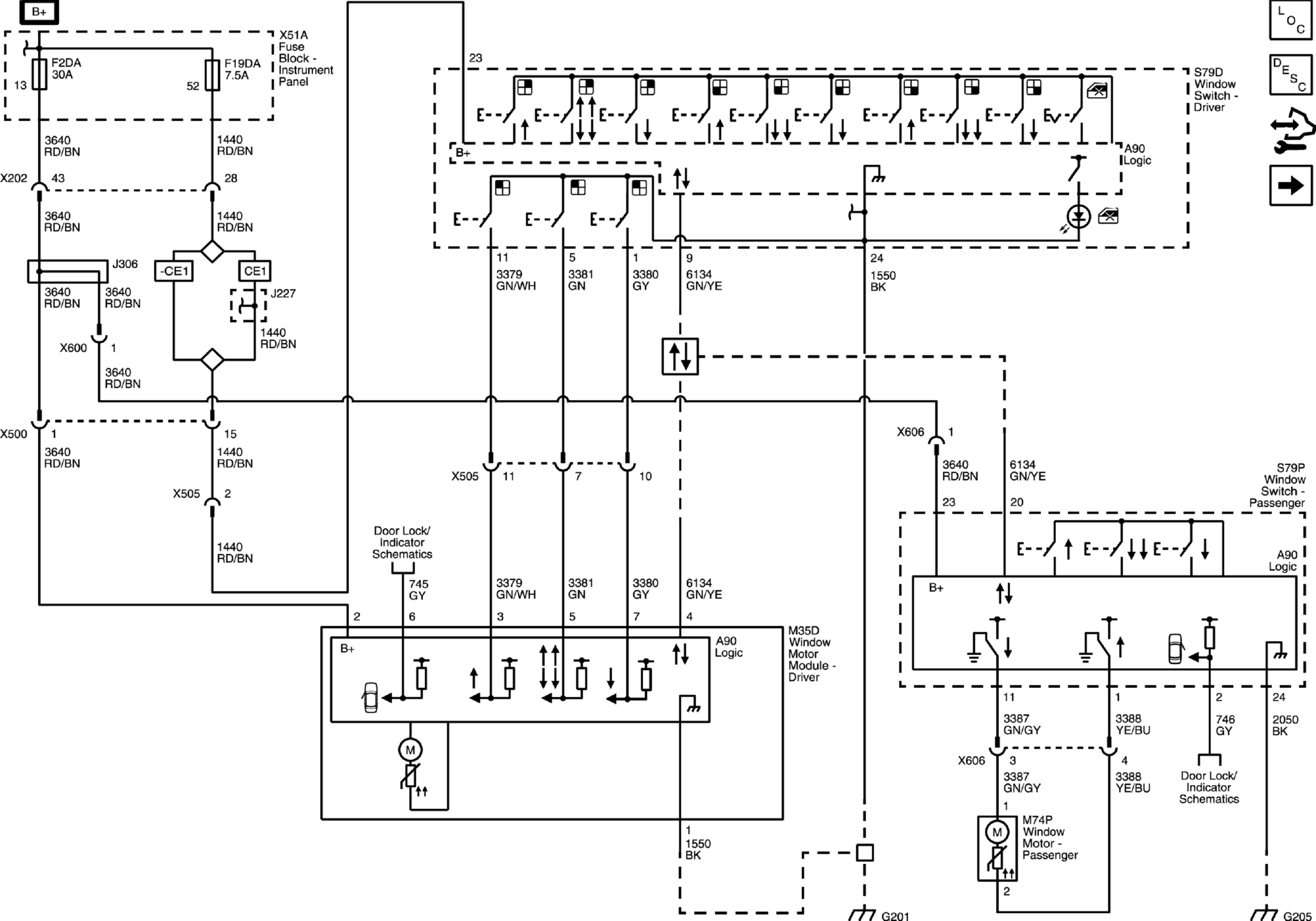

Front Doors

GM4874077

Courtesy of GENERAL MOTORS COMPANY
