Glow Plug Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

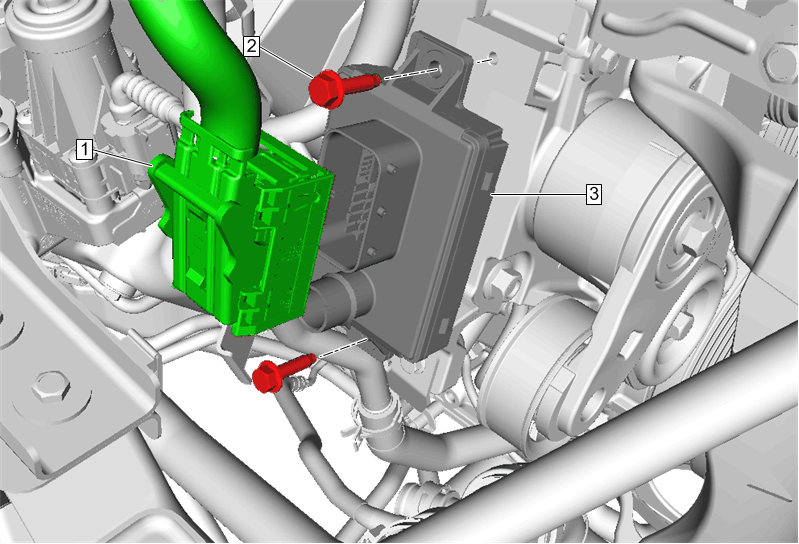

Callout	Component Name
Preliminary Procedure Air Cleaner Assembly Replacement
1	Glow Plug Control Module Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Glow Plug Module Connector Procedure Disconnect the glow plug module connector.
3	Glow Plug Control Module Procedure If the scan tool DPF Soot Mass is less than 30 grams (67.42%), enable the DPF. Diesel Particulate Filter (DPF) Regeneration Enable If the scan tool DPF Soot Mass is 30 grams (67.42%) or greater, refer to Diesel Particulate Filter (DPF) Service Regeneration . Perform the glow plug module programming and setup. K34 Glow Plug Control Module: Programming and Setup
