Chassis Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

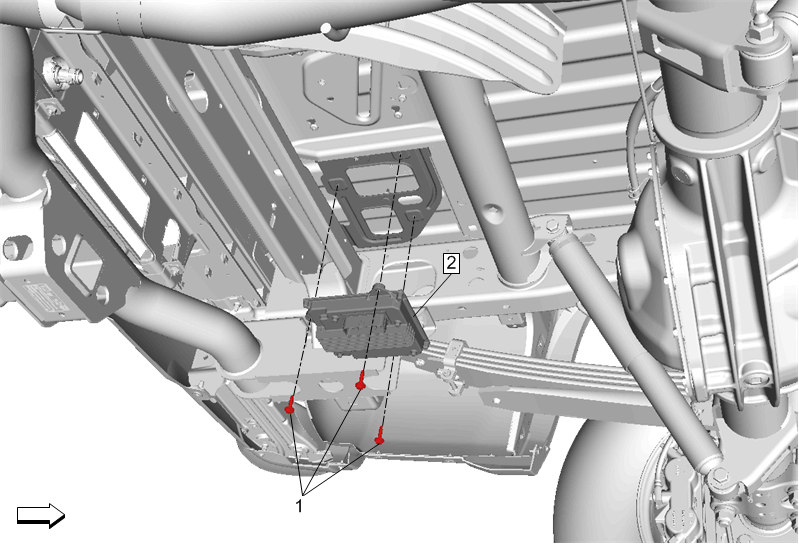

GM4539970Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Spare Wheel Hoist Replacement
1 Chassis Control Module Bolt [3x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Control Module References
