Home >> GMC >> 2019 >> Acadia SL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 2.5L (LCV) - Engine Controls Wiring Schematics >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Controlled/Monitored Subsystem References

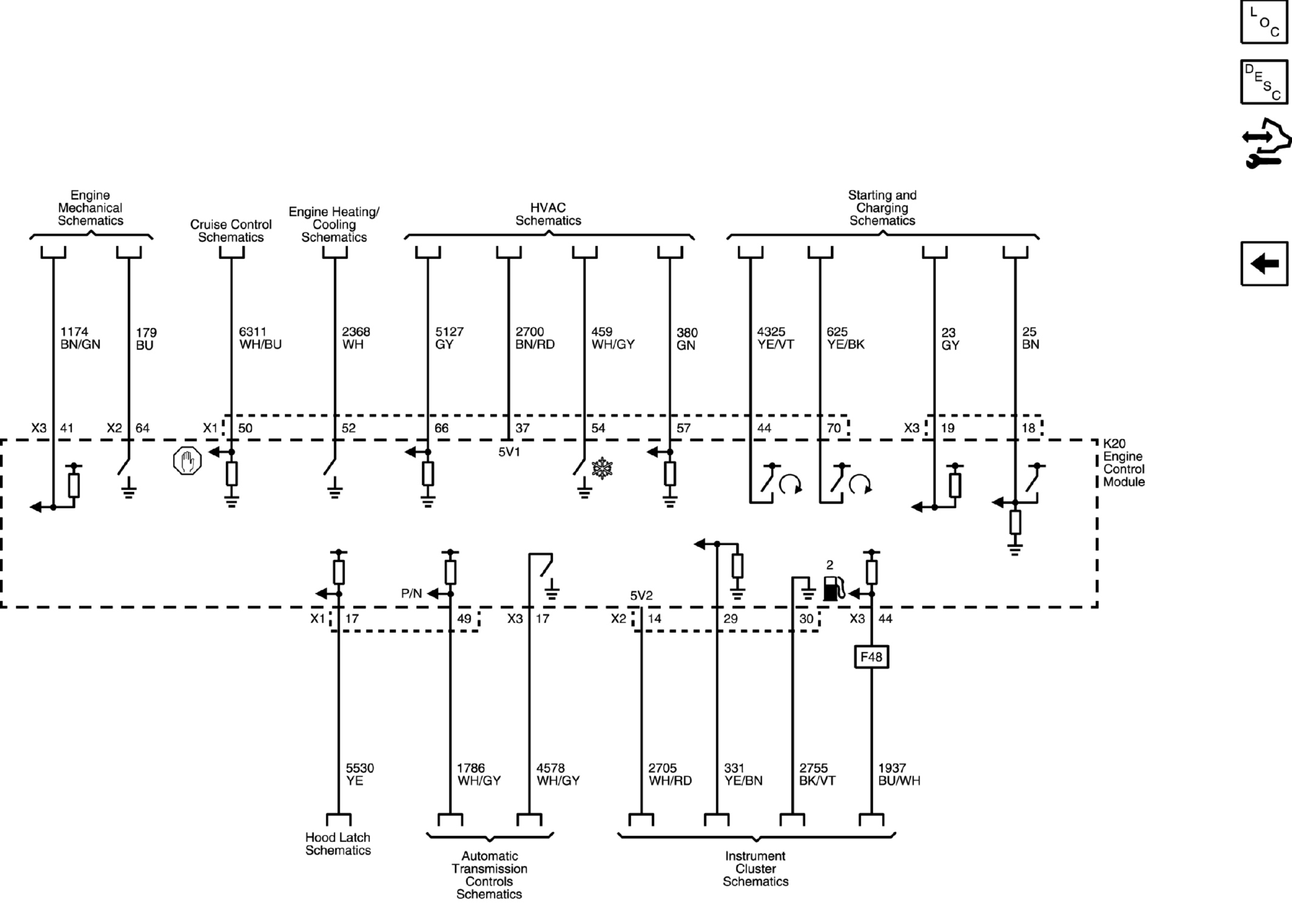

Controlled/Monitored Subsystem References

GM4894344Courtesy of GENERAL MOTORS COMPANY
