Home >> GMC >> 2019 >> Acadia Denali, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls And Fuel - 3.6L (LGX) - Engine Controls Wiring Schematics >> Schematic Wiring Diagrams >> Engine Controls Wiring Schematics >> Monitored/Controlled Subsystem References

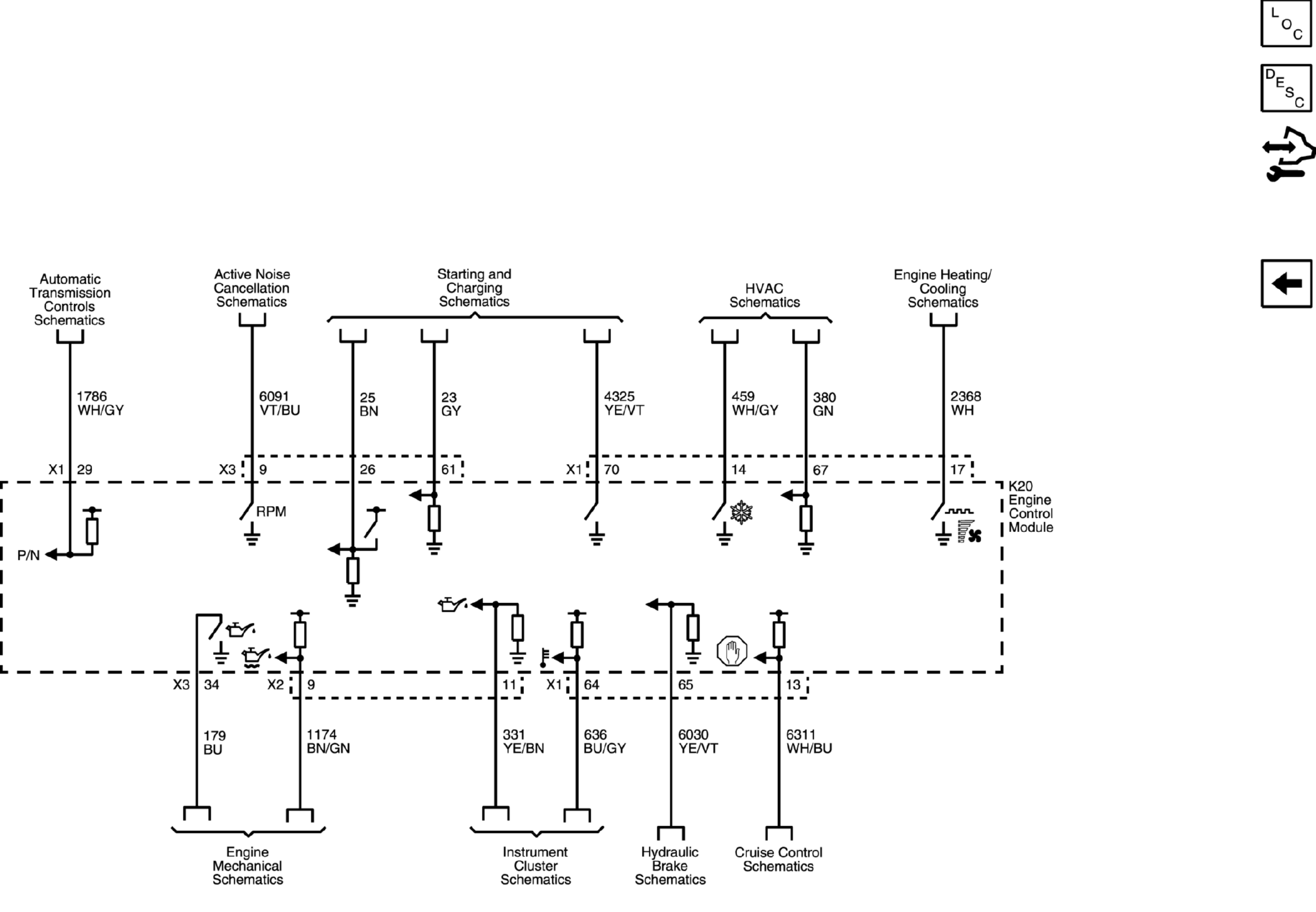

Monitored/Controlled Subsystem References

GM4894364

Courtesy of GENERAL MOTORS COMPANY
