Installation Procedure

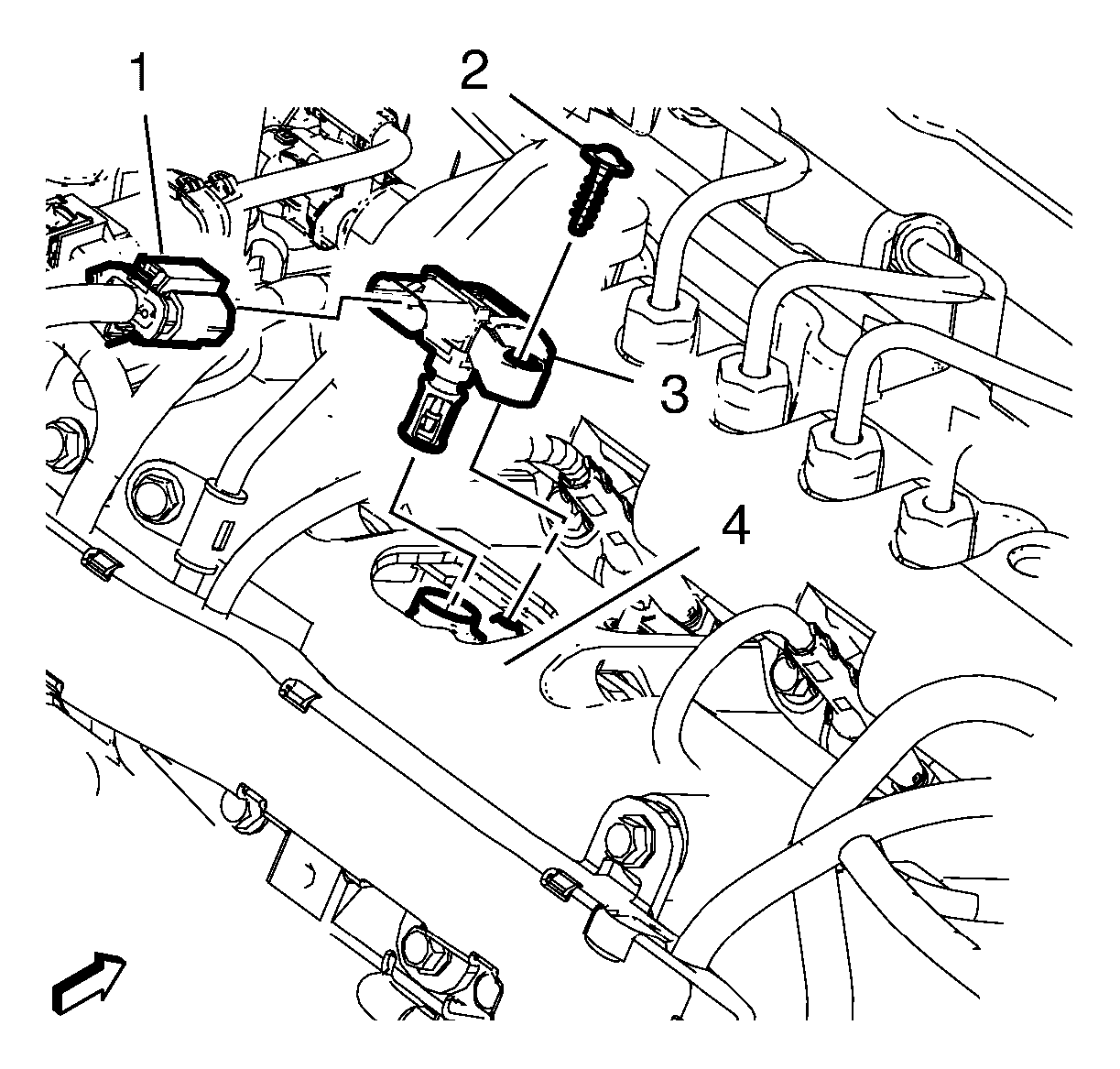

    Fig 1: Intake Air Pressure And Temperature Sensor, Bolt And Electrical Connector
    GM3283892Courtesy of GENERAL MOTORS COMPANY
  1. Install the intake air pressure and temperature sensor (3) to the intake manifold (4).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the bolt (2) to intake air pressure and temperature sensor (3) and tighten to 1.6 N.m (14 lb in).
  3. Connect the wiring harness plug (2) to the intake air pressure and temperature sensor (3).
  4. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
