Fuel Pump Power Control Module Bracket Replacement (FWD)

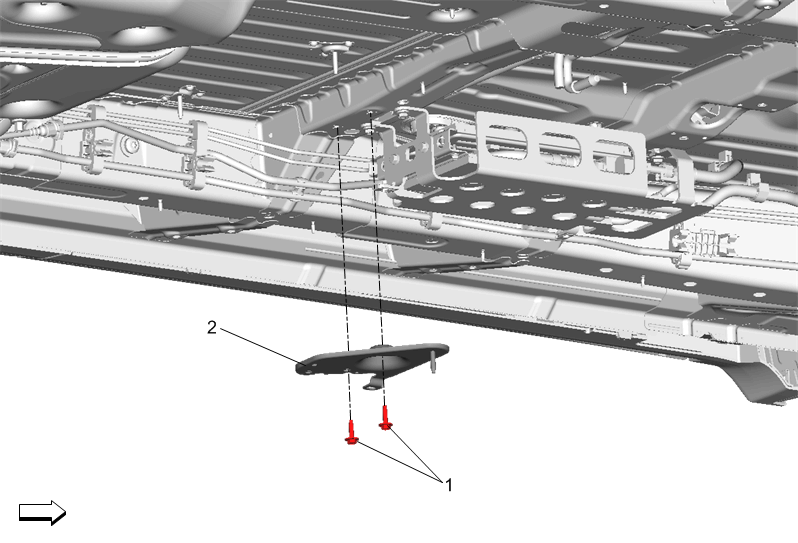

Fig 1: Fuel Pump Power Control Module Bracket (FWD)
GM4691819Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Fuel Pump Power Control Module. Refer to Fuel Pump Power Control Module Replacement (FWD)
1 Fuel Pump Power Control Module Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module Bracket
