Installation Procedure

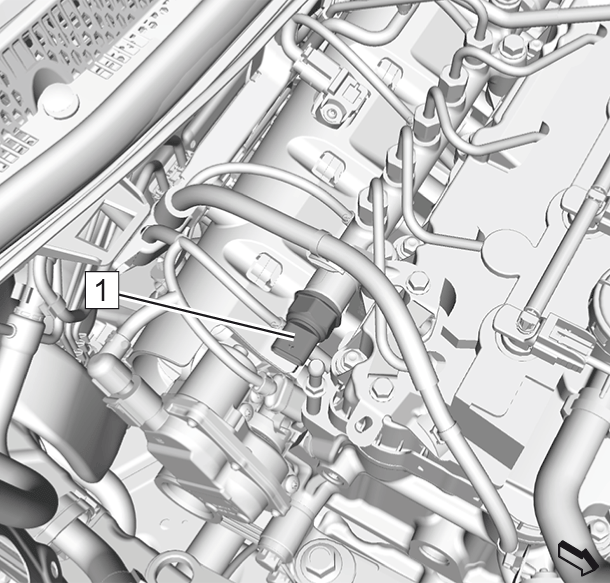

    Fig 1: Fuel Pressure Sensor
    GM4585062Courtesy of GENERAL MOTORS COMPANY
  1. Install NEW Fuel Pressure Sensor (1) - Hand tighten
    2. CAUTION:

    Refer to Component Fastener Tightening Caution

  2. Tighten Fuel Pressure Sensor (1) to 35 N.m (26 lb ft)

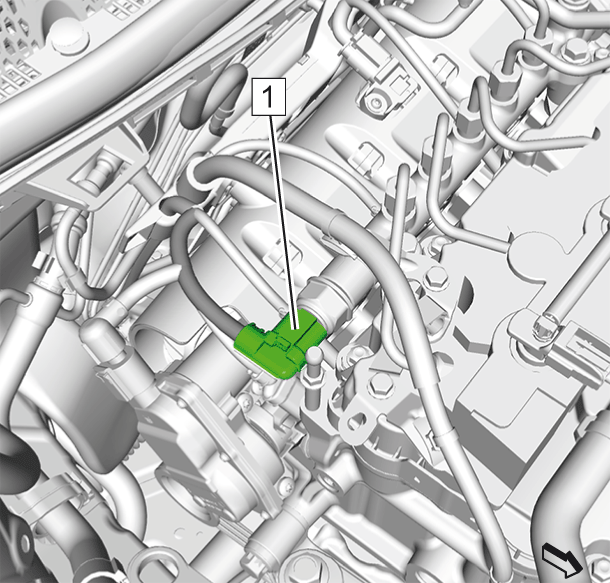

    3. Fig 2: Electrical Connector
    GM4585061Courtesy of GENERAL MOTORS COMPANY
  3. Connect Electrical Connector (1)
  4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (KL9)
  5. Start the engine and check for fuel leaks.
  6. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement
  7. If replacing, perform the fuel injection small quantity learn. Refer to Fuel Injection Small Quantity Learn
