Engine Control Module Bracket Replacement

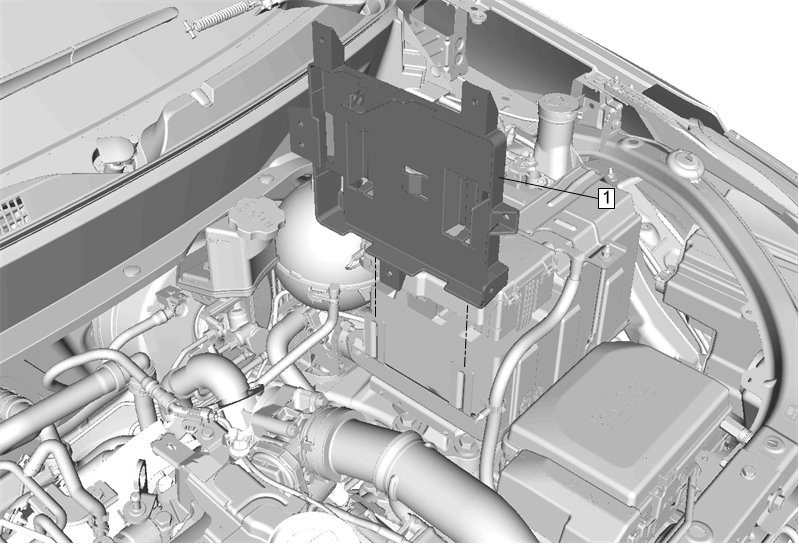

Fig 1: Engine Control Module Bracket
GM4673687Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove Engine Control Module. Refer to Engine Control Module Replacement
  2. Reposition away Engine Coolant Air Bleed Hose @ Engine Control Module Bracket. Refer to Engine Coolant Air Bleed Hose Replacement (Radiator Surge Tank to Exhaust Gas Recirculation Cooler Housing and Radiator LH7)
  3. Remove wiring harness from engine control module bracket.
1 Engine Control Module Bracket
Procedure
Release retaining tab to remove bracket from battery tray.
