Fuel Tank Shield Replacement (FWD)

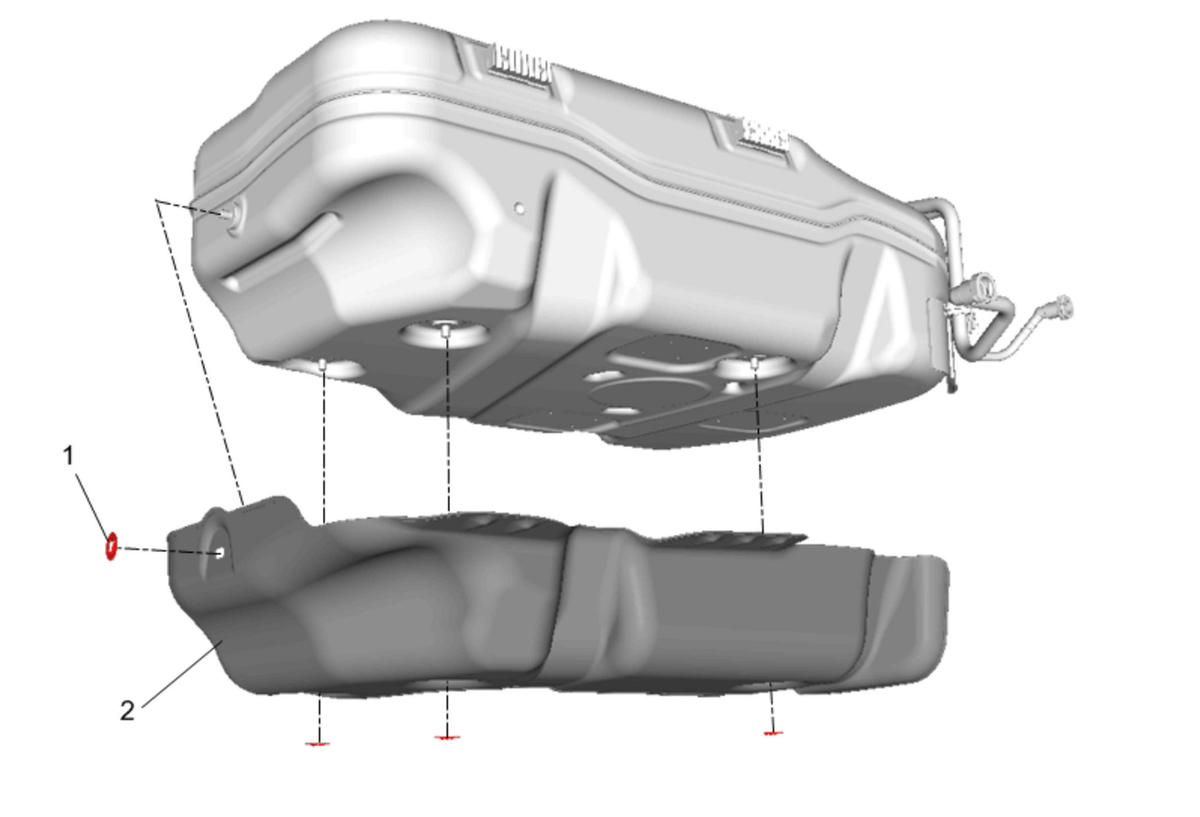

Fig 1: Fuel Tank Shield (FWD)
GM4594165Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedure Fuel Tank Replacement (FWD)
1 Fuel Tank Shield Retainer[4x]
2 Fuel Tank Shield
