Installation Procedure

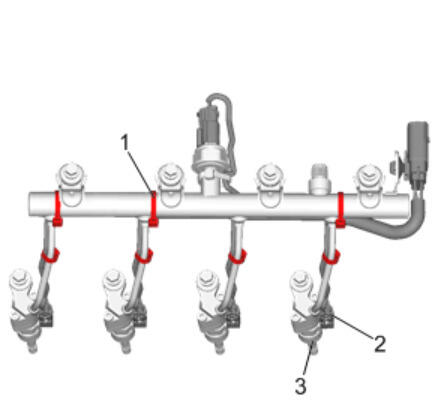

    Fig 1: Fuel Injectors, Wiring Harness And Tie Straps
    GM3982080Courtesy of GENERAL MOTORS COMPANY
  1. Connect the fuel injector wiring harness connectors (2) to the fuel injectors (3).
  2. Position the fuel injector wiring harness to the fuel injection fuel rail and install NEW wiring harness tie straps (1).

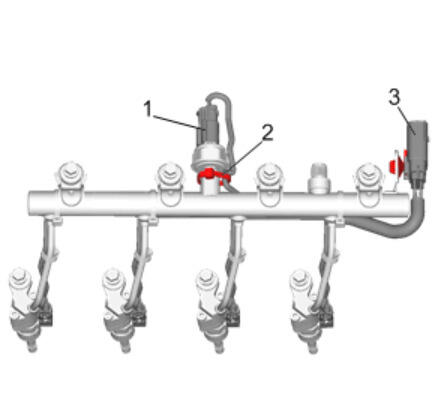

    3. Fig 2: Fuel Injector Wiring Harness, Connector And Tie Strap
    GM3982086Courtesy of GENERAL MOTORS COMPANY
  3. Connect the fuel injector wiring harness connector (1) to the fuel injection fuel rail fuel pressure sensor.
  4. Install a NEW wiring harness tie strap (1).
  5. Clip the fuel injector wiring harness (3) to the fuel injection fuel rail.
  6. Install Fuel Injection Fuel Rail Assembly - Fuel Injection Fuel Rail Assembly Replacement
