Crankshaft Position Sensor Replacement (FWD)

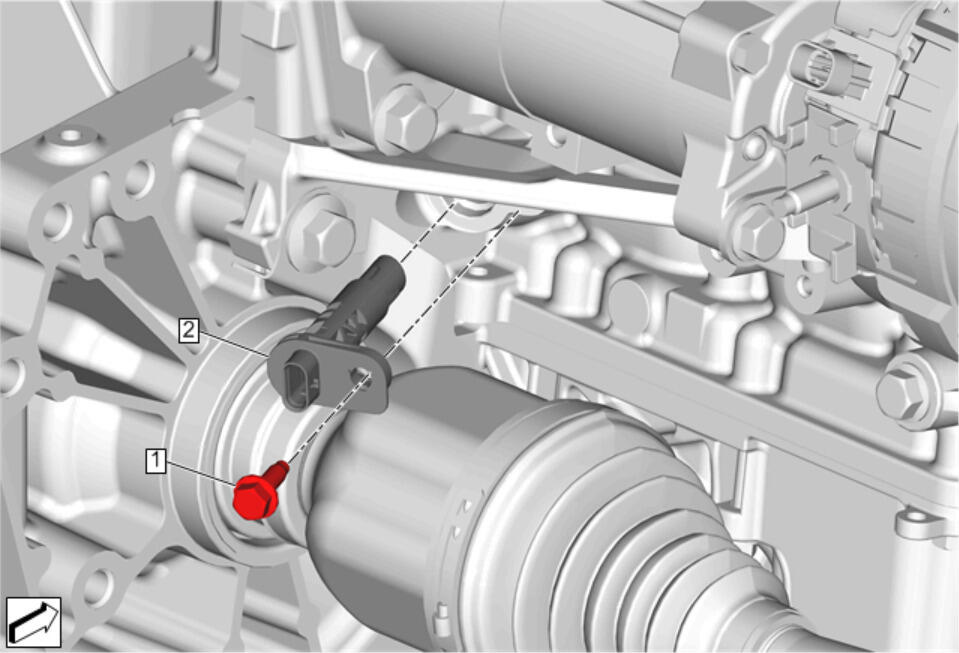

Fig 1: Crankshaft Position Sensor (FWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9) Raise and support the vehicle. Lifting and Jacking the Vehicle Disconnect the electrical connector.
1	Crankshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor Procedure Perform the crankshaft position variation learn. Crankshaft Position Variation Learn

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
Raise and support the vehicle. Lifting and Jacking the Vehicle
Disconnect the electrical connector.

Crankshaft Position Sensor Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor
Procedure
Perform the crankshaft position variation learn. Crankshaft Position Variation Learn
