Camshaft Position Actuator Locating Pin Control Valve Replacement

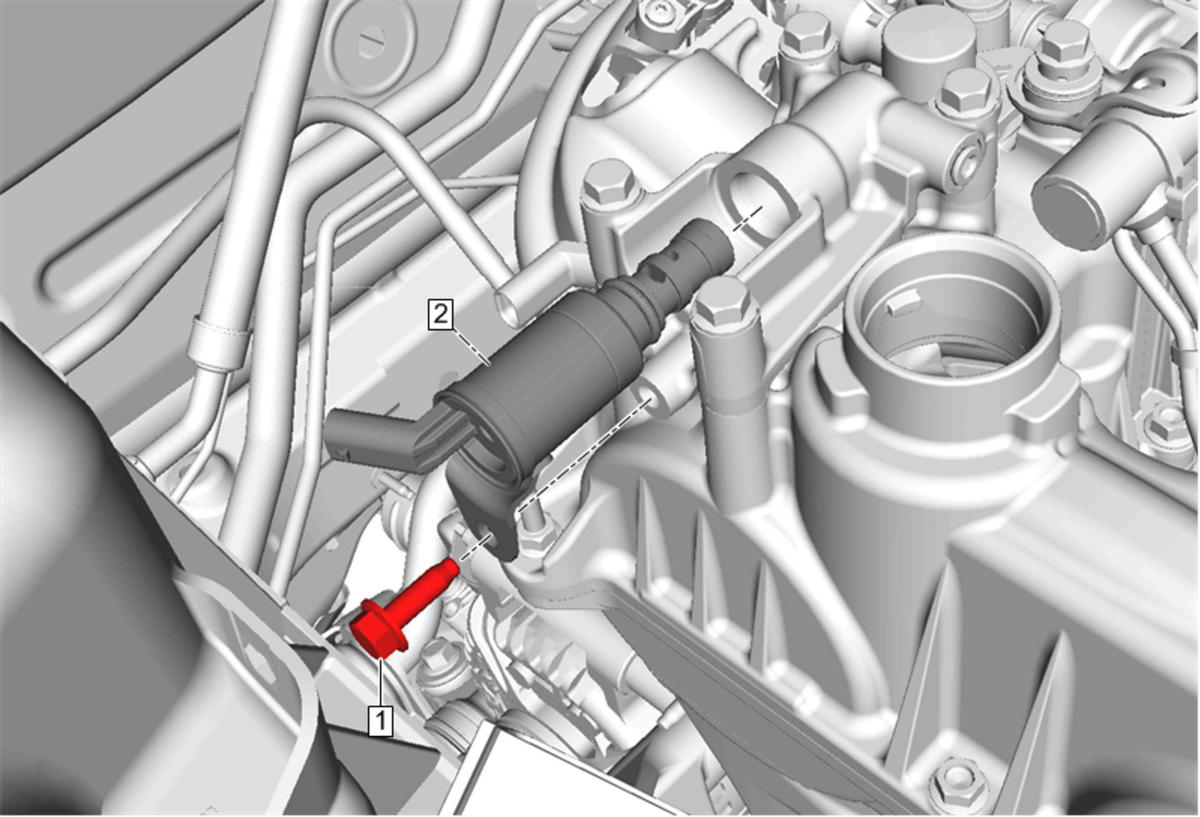

Fig 1: Camshaft Position Actuator Locating Pin Control Valve

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Camshaft Position Actuator Locating Pin Control Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Actuator Locating Pin Control Valve Procedure Disconnect the electrical connector. If reusing the OLD control valve, install a NEW seal. NOTE: A NEW control valve will come with a NEW seal.

Callout

Component Name

Camshaft Position Actuator Locating Pin Control Valve Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Actuator Locating Pin Control Valve

Procedure

NOTE:

A NEW control valve will come with a NEW seal.
