Rear Of The Engine (LTG)

Rear Of The Engine (LTG)

Items
1. B74 Manifold Absolute Pressure Sensor (LTG) B74 Manifold Absolute Pressure Sensor (LTG)
2. B68B Knock Sensor 2 (LTG/LYX) B68B Knock Sensor 2 (LTG/LYX)
3. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LTG)
4. B68A Knock Sensor 1 (LTG/LYX) B68A Knock Sensor 1 (LTG/LYX)
5. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LTG)
6. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LTG)

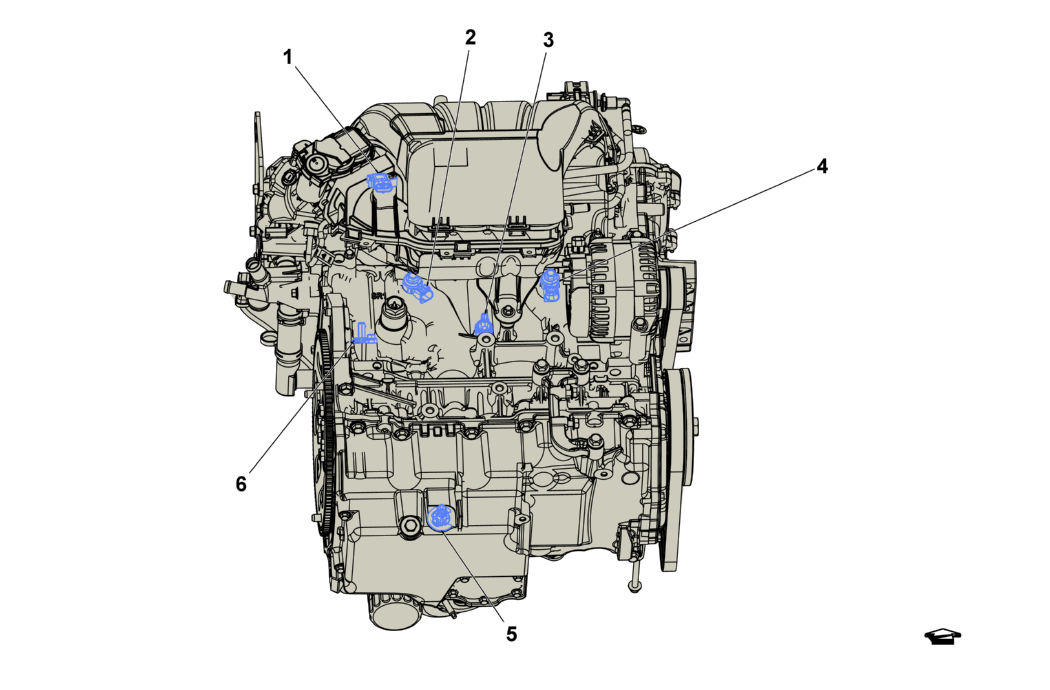

Fig 1: Rear Of The Engine (LTG)
GM4585920Courtesy of GENERAL MOTORS COMPANY
