Fuel Feed Rear Pipe Replacement

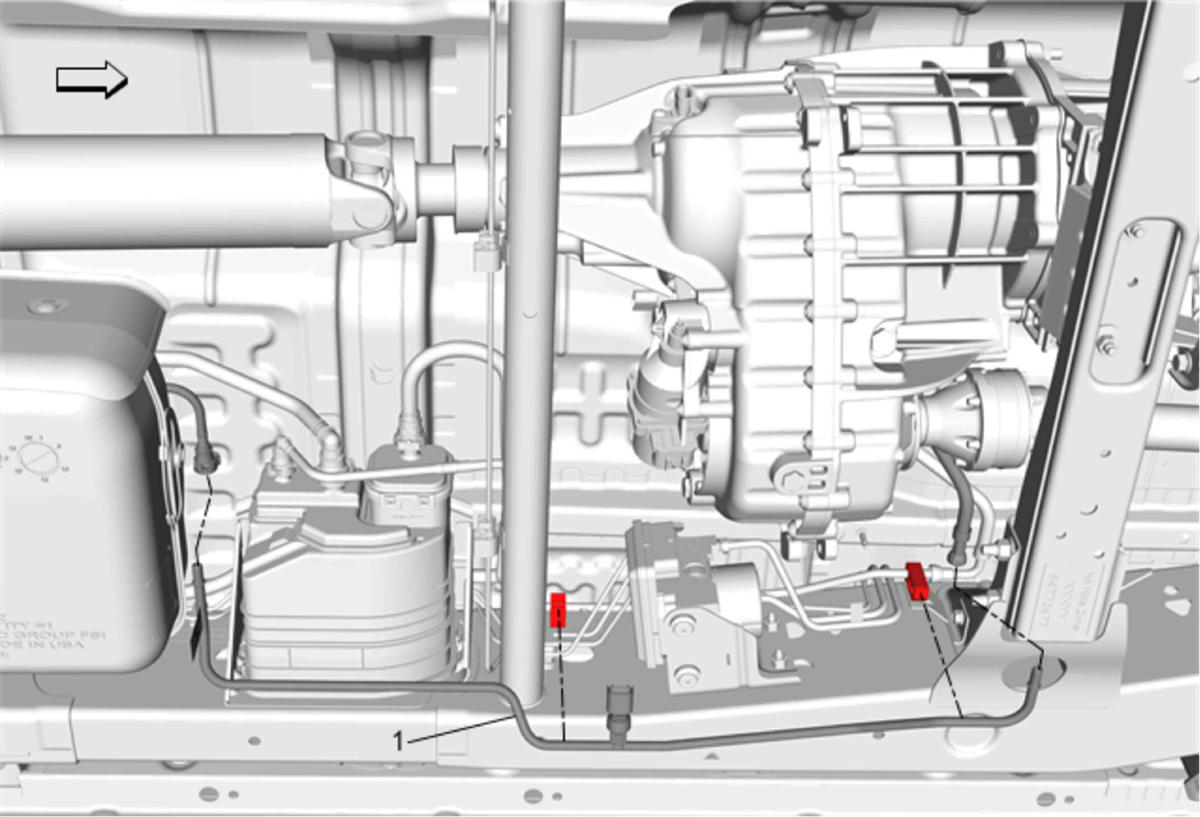

GM3807462Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Relieve the system fuel pressure. Fuel Pressure Relief
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
  3. Disconnect the fuel pressure sensor electrical connector.
  4. Rear Evaporative Emission Pipe@Evaporative Emission Canister - Disconnect - Evaporative Emission Rear Pipe Replacement
1 Fuel Feed Rear Pipe
Procedure
Disconnect the quick disconnects and remove from the 2 retainers. Plastic Collar Quick Connect Fitting Service , and Metal Collar Quick Connect Fitting Service
