Secondary Air Injection Check Valve Bracket Replacement

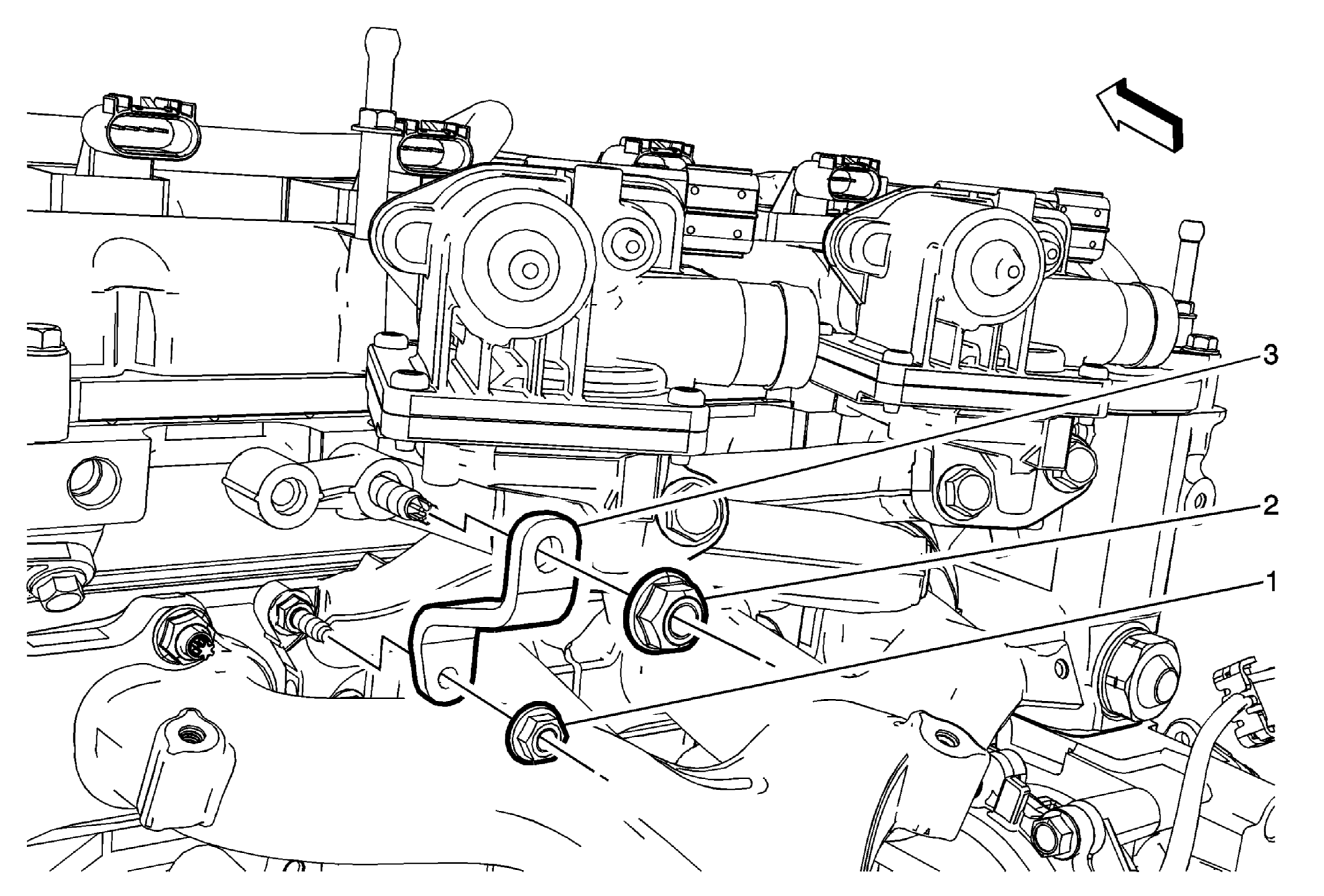

Fig 1: Secondary Air Injection Check Valve Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Secondary Air Injection Check Valve Bracket Upper Fastener CAUTION: Refer to Fastener Caution . Tighten  25 N.m (18 lb ft)
2	Secondary Air Injection Check Valve Bracket Lower Fastener Tighten  10 N.m (89 lb in)
3	Secondary Air Injection Check Valve Bracket
