Installation Procedure

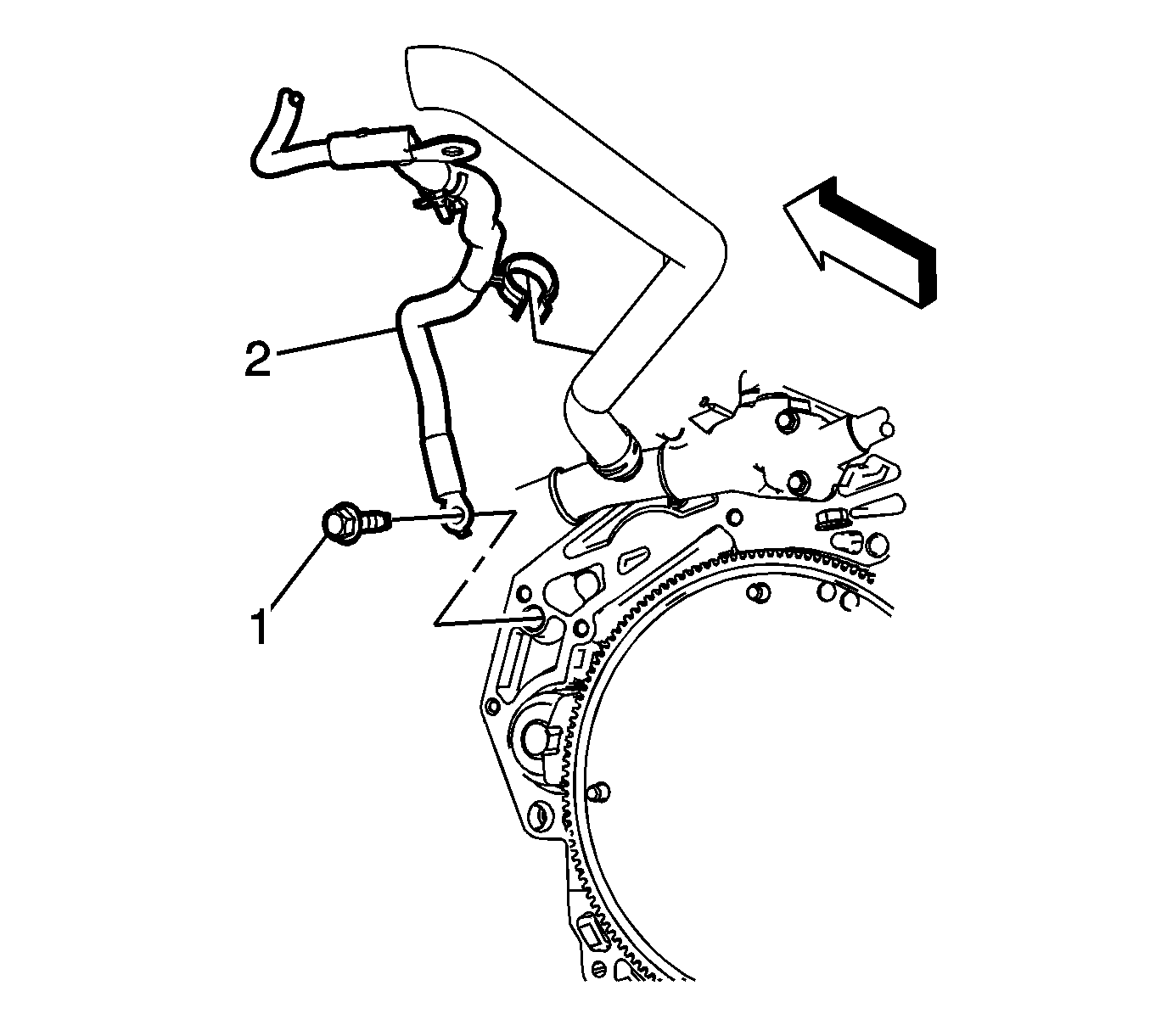

    Fig 1: Battery Negative Cable And Engine Ground Bolt
    GM2240862Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery negative cable engine ground nut (1) to the engine and tighten to 25 N.m (18 lb ft).
    2. Fig 2: Battery Negative Cable Ground Nut And Body Harness
    GM2240861Courtesy of GENERAL MOTORS COMPANY
  2. Install the battery negative cable frame ground nut (1) to the frame rail and tighten to 25 N.m (18 lb ft).
  3. Install battery negative cable clamp to the battery post. Refer to Battery Negative Cable Disconnection and Connection .
  4. Reset the radio channel presets.
