Battery Negative Cable Disconnection and Connection

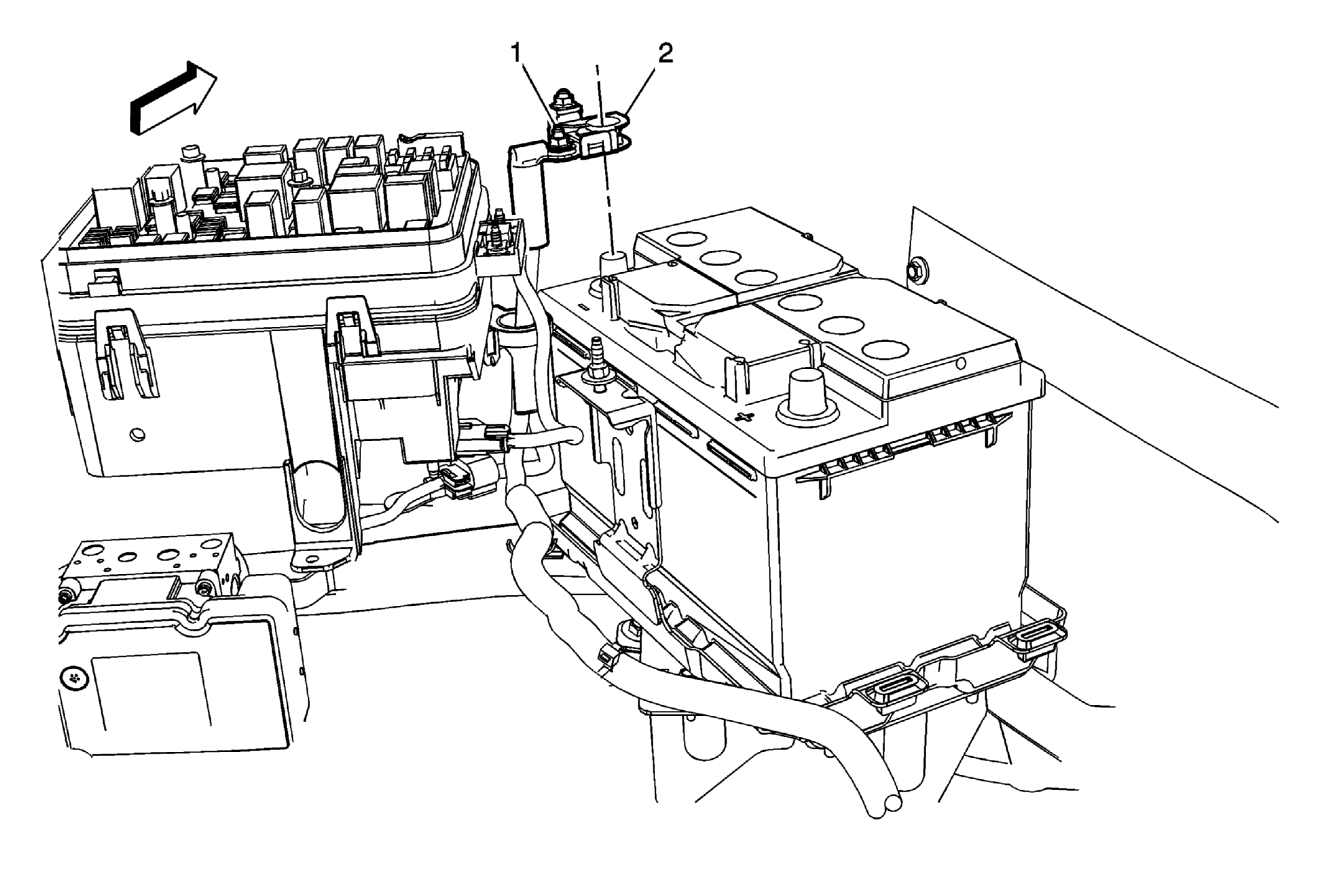

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Turn on the radio and record all of the radio station presets. Ensure all lamps and accessories are turned off. Ensure the ignition switch is in the OFF position, and remove the ignition key.
1	Negative Battery Cable Terminal Nut CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Negative Battery Cable Clamp

Callout

Component Name

Preliminary Procedures

Negative Battery Cable Terminal Nut

CAUTION:

Tighten
10 N.m (89 lb in)

Negative Battery Cable Clamp
