X51A Fuse Block - Instrument Panel Top View Fuses

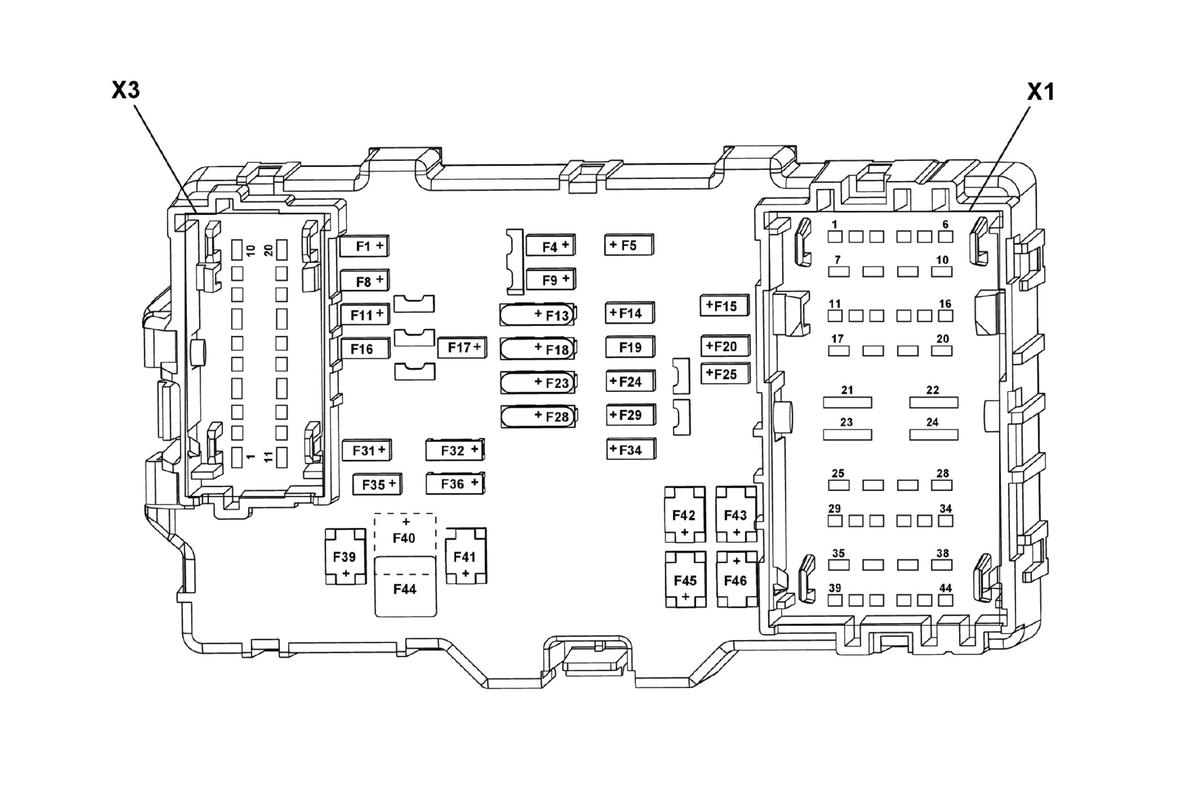

Fig 1: X51A Fuse Block - Instrument Panel Top View Fuses

Courtesy of GENERAL MOTORS COMPANY

X51A FUSE BLOCK - INSTRUMENT PANEL FUSE IDENTIFICATION LEGEND

No.	Device Label Name	Device Assigned Name	Rating	Description
Fuses
F1	BCM 1	F1DA	15A	K9 Body Control Module
F2	EMPTY	F2DA	-	Not Used
F3	EMPTY	F3DA	-	Not Used
F4	STR/WHL/CNTRL	F4DA	5A	S70L Steering Wheel Controls Switch - Left S70R Steering Wheel Controls Switch - Right
F5	BCM 2	F5DA	15A	K9 Body Control Module
F6	EMPTY	F6DA	-	Not Used
F7	EMPTY	F7DA	-	Not Used
F8	MIR WNDW MDL	F8DA	5A	S79D Window Switch - Driver S52 Outside Rearview Mirror Switch (DL6/DL9)
F9	I/P CLSTR	F9DA	10A	P16 Instrument Cluster P17 Info Display Module S32D Seat Heating Switch - Driver (KA1) S32P Seat Heating Switch - Passenger (KA1) A26 HVAC Controls
F10	EMPTY	F10DA	-	Not Used
F11	BCM 8	F11DA	30A	K9 Body Control Module
F12	EMPTY	F12DA	-	Not Used
F13	ONSTAR/HVAC	F13DA	10A	K33 HVAC Control Module K73 Telematics Communication Interface Control Module (UE1)
F14	RDO/INFOTMNT	F14DA	20A	A11 Radio K74 Human Machine Interface Control Module (IOB/IO5/IO6)
F15	BCM 6	F15DA	20A	K9 Body Control Module
F16	EMPTY	F16DA	-	Not Used
F17	BCM 4	F17DA	20A	K9 Body Control Module
F18	AIRBAG	F18DA	10A	K85 Passenger Presence Module K36 Inflatable Restraint Sensing and Diagnostic Module
F19	EMPTY	F19DA	-	Not Used
F20	AMP	F20DA	30A	T3 Audio Amplifier (UQA)
F21	EMPTY	F21DA	-	Not Used
F22	EMPTY	F22DA	-	Not Used
F23	DLC/USB	F23DA	10A	X84 Data Link Connector X83 Auxiliary Audio Input X83R Auxiliary Audio Input - Rear
F24	HVAC RUN/CRNK	F24DA	5A	E40 Electrical Auxiliary Heater (LWN) K33 HVAC Control Module
F25	BCM 7	F25DA	20A	K9 Body Control Module
F26	EMPTY	F26DA	-	Not Used
F27	EMPTY	F27DA	-	Not Used
F28	I/P IGN/SDM IGN	F28DA	10A	P14 Passenger Air Bag Disabled Indicator P16 Instrument Cluster and P43 Collision Alert Indicators (UEU)
F29	MISC RUN/CRNK	F29DA	10A	B87 Rearview Camera K69 Transfer Case Control Module (NQ6/NQ7) A10 Inside Rearview Mirror
F30	EMPTY	F30DA	-	Not Used
F31	FRT CAMERA	F31DA	10A	K109 Frontview Camera Module (UEU/UFL)
F32	SWC BKLT	F32DA	2A	S48A Multifunction Switch - Instrument Panel S77 Transfer Case Shift Control Switch (NQ6/NQ7) S30 Headlamp Switch X85 Steering Wheel Air Bag Coil
F33	EMPTY	F33DA	-	Not Used
F34	EMPTY	F34DA	-	Not Used
F35	PRNDL	F35DA	10A	P2 Transmission Shift Lever Position Indicator (MYB)
F36	DLIS	F36DA	2A	S39 Ignition Switch
F37	EMPTY	F37DA	-	Not Used
F38	EMPTY	F38DA	-	Not Used
F39	APO 2	F39DA	15A	X80B Accessory Power Receptacle - Center Console 2
F40	EMPTY	F40DA	50A	F39DA F41DA X80A Accessory Power Receptacle - Center Console 1 X80B Accessory Power Receptacle - Center Console 2 E32 Cigarette Lighter Receptacle (SAO)
F41	APO 1/LTR	F41DA	15A	E32 Cigarette Lighter Receptacle (SAO) X80A Accessory Power Receptacle - Center Console 1
F42	LT PWR WNDW	F42DA	30A	M74D Window Motor - Driver S79LR Window Switch - Left Rear
F43	DRVR PWR SEAT	F43DA	30A	S64D Seat Adjuster Switch - Driver
F44	APO	F44DA	50A	F39DA F41DA X80A Accessory Power Receptacle - Center Console 1 X80B Accessory Power Receptacle - Center Console 2 E32 Cigarette Lighter Receptacle (SAO)
F45	RT PWR WNDW	F45DA	30A	S79P Window Switch - Passenger S79RR Window Switch - Right Rear
F46	PASS PWR SEAT	F46DA	30A	S64P Seat Adjuster Switch - Passenger (AAQ)
